Cybex Bravo 8830/8840 Owner’s Manual

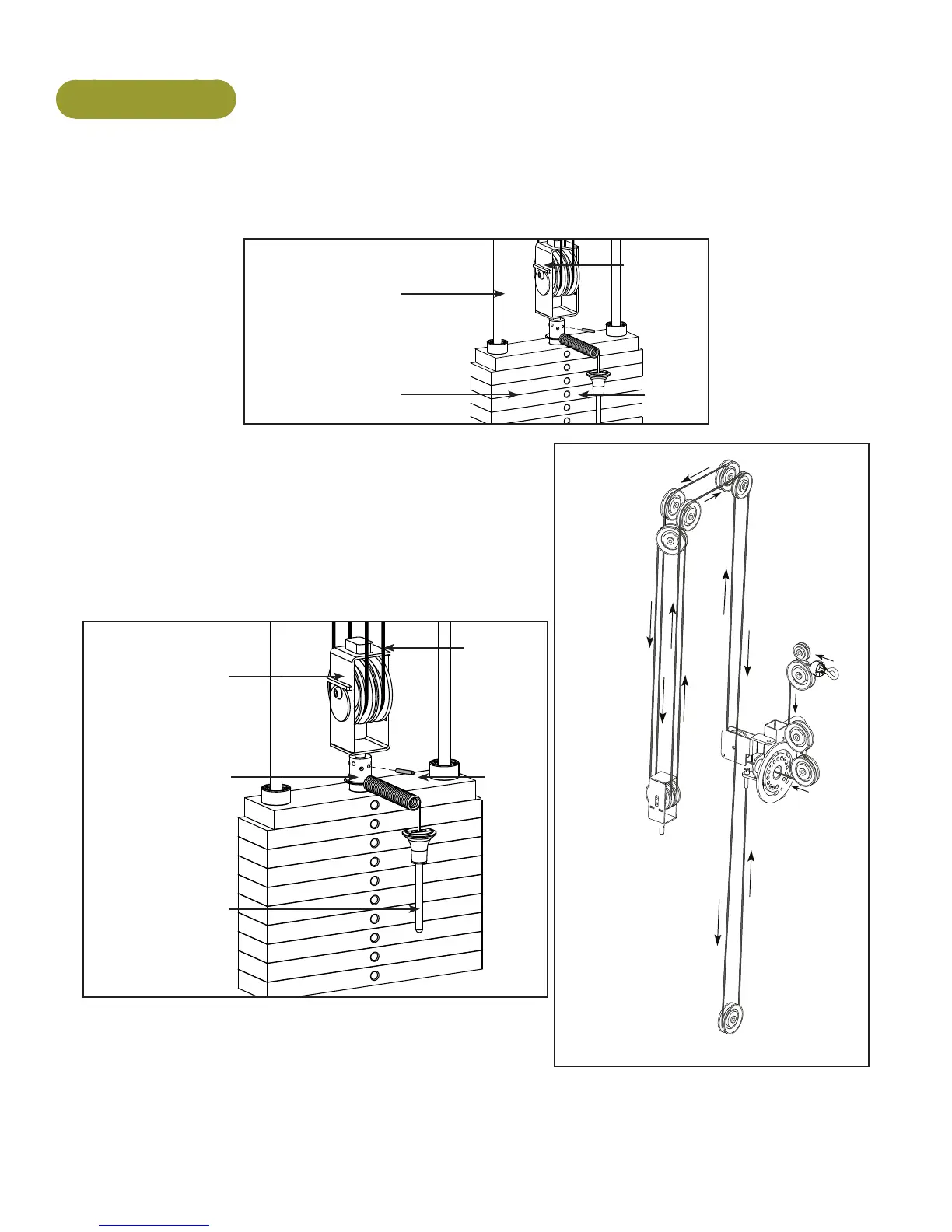

Cable routing
1. Verify cable is routed through top of pulley bracket and then route cable end to top weight
connector.
2. Pull cable tight and secure in place with spiral pin using a 3/16” pin punch and a hammer.
Top Weight
Connector
Roll
Pin
Pulley Bracket
Cable
Cable
Routing
Pulley
bracket
connects
to top
weight
connector
Top Weight
Connector
Roll
Pin
Pulley Bracket
Cable
Weight Stack
Connector Pin
