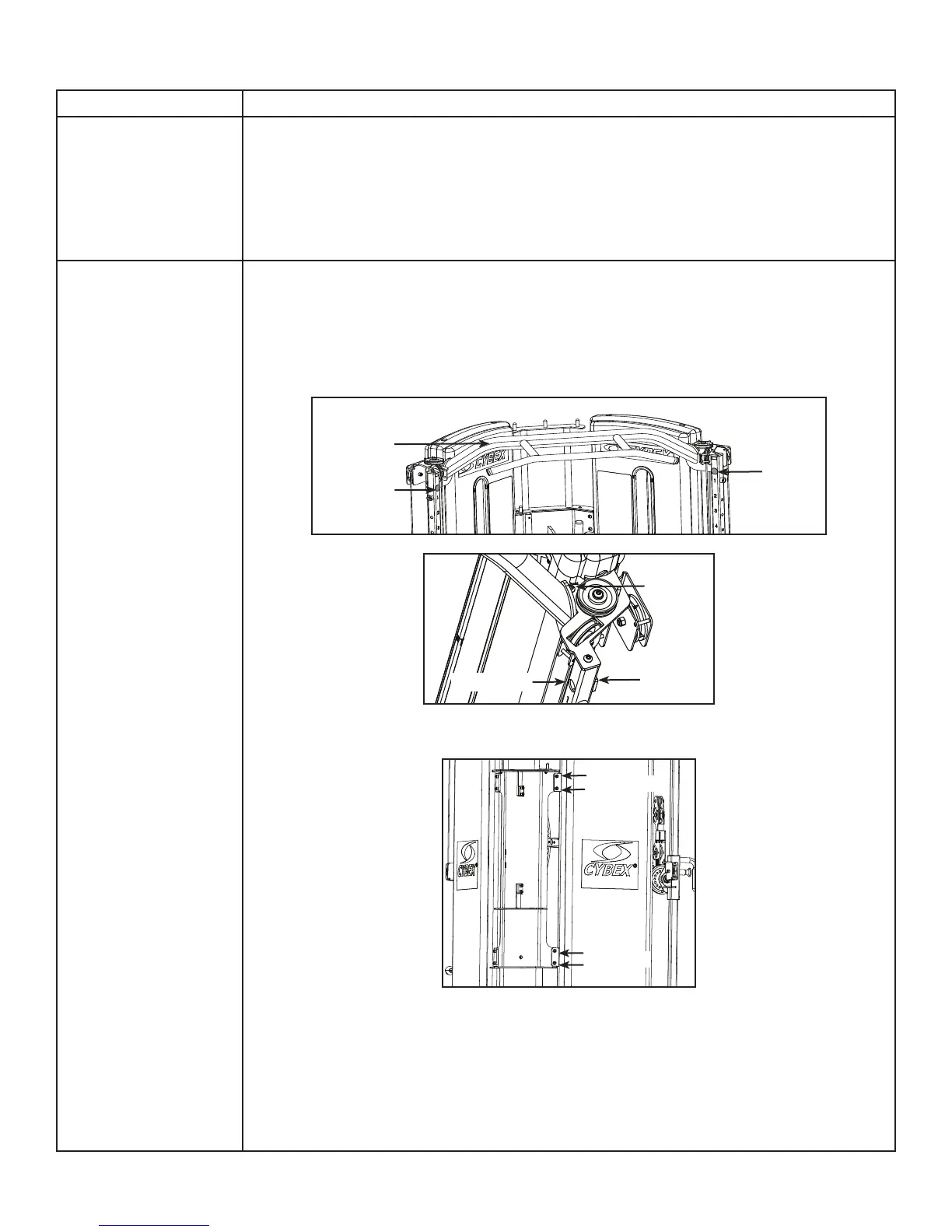

Cybex Bravo 8830/8840 Owner’s Manual
If Then
8830/8840cant
through a doorway
Two people will be required for this procedure
1. Move to desired location.
2. Remove the four shipping cones using a 3/4” socket or wrench.
3. Attach foot pads to each foot of frame.
8830cannott
through a doorway
1. Remove the four shipping cones using a 3/4” socket or wrench.
2. Place foot pads on each foot of the frame.
3. Remove Chin-Up Bar.
Chin-Up
Bar
Insert
plug
Insert
plug
BHSCS
Locknut
BHSCS
4. Remove the four BHSCS securing one of the halves.
BHSCS
BHSCS
5. Move unit to desired location.
6. Reattach the frame halves and securely tighten the four BHSCS.
7. Reattach Chin-Up Bar. Add Loctite #242 to each BHSCS and threaded
holes. Tighten screws securely. Reattach insert plugs.
