Verify proper operation
If machine CANNOT be moved without adding or removing weight stack
Two people will be required for this procedure

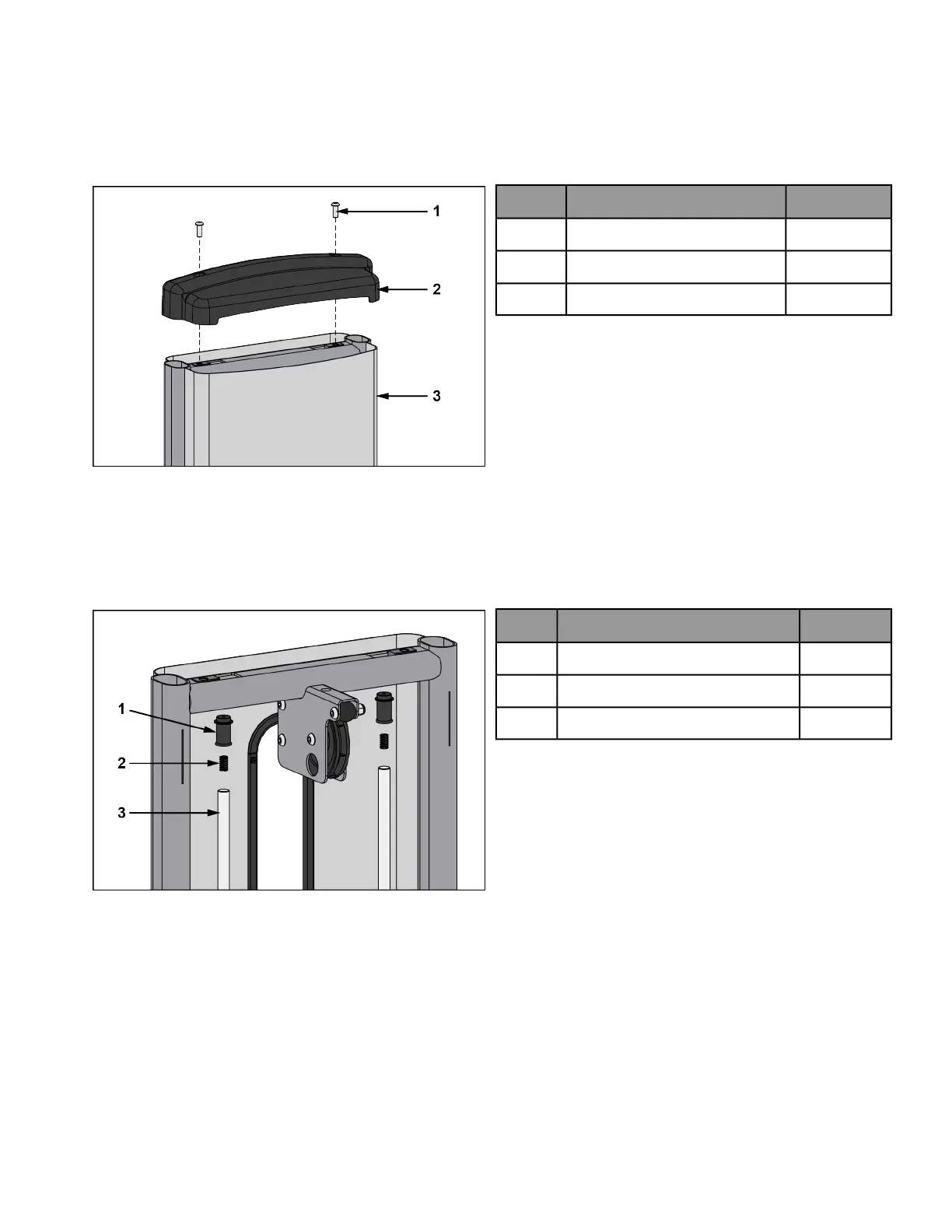

1. Remove the two Button Head Socket Cap Screws (BHSCS) securing the top cap to the frame using a 7/32”
Allen wrench.
Qty.Description
2BHSCS1
1Top cap2
1Shroud3
2. Remove top cap and BHSCS.
3. Lift shroud up and out of machine.
4. Remove guide rod caps. Guide rod cap contains a compression spring that will fly if grasp is not released
slowly. Slide spring loaded guide rod cap down guide rod until cap is clear of frame. Slowly release grasp of
guide rod cap and remove.
Qty.Description
2Guide rod cap1
2Compression spring2
2Guide rod3
5. Remove guide rod cap and springs.
6. Repeat procedure for opposite guide rods.
