CYBEX VR1 Lat Pull User Manual

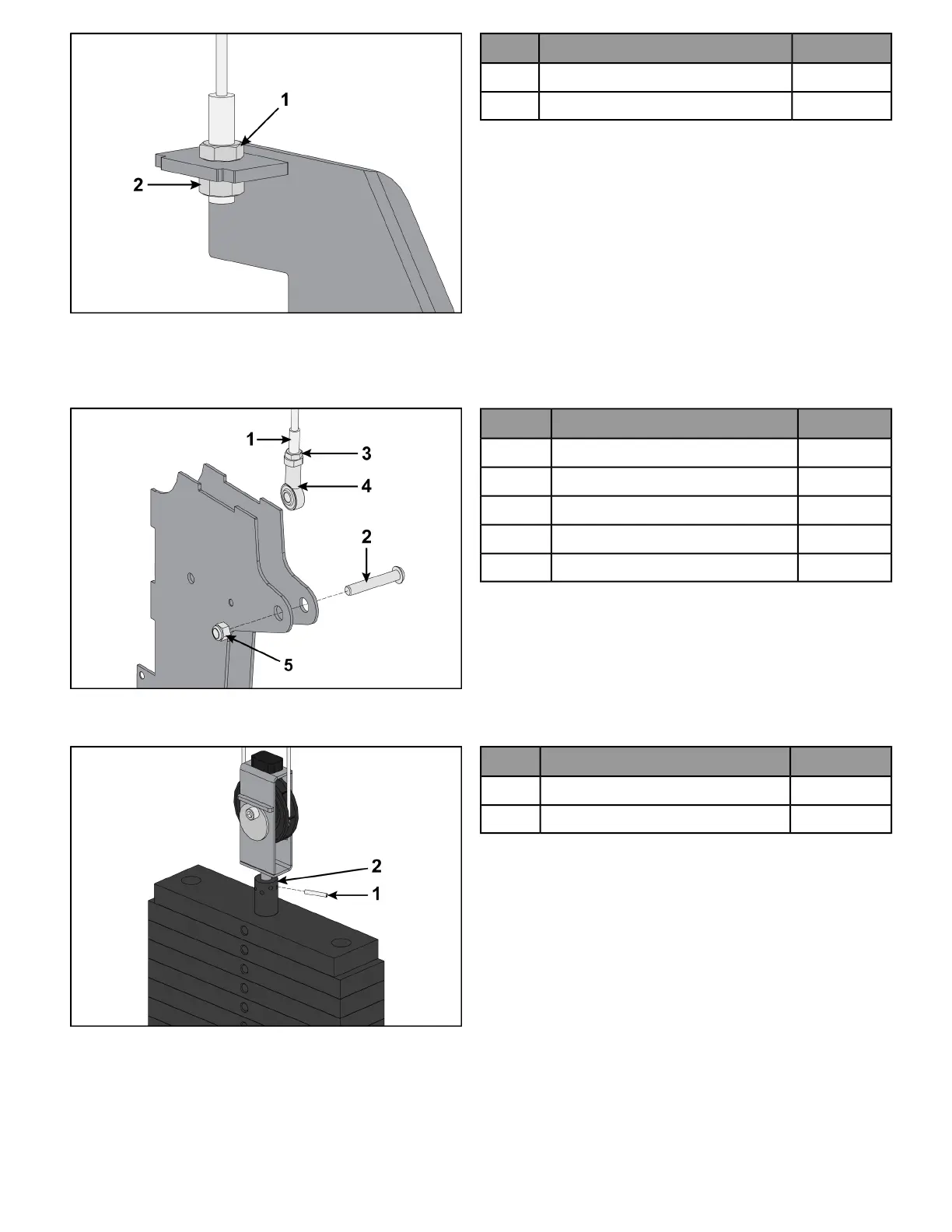

Qty.Description
1Jam nut1
1Tension adjustment nut2
Rod End Adjustment
This type of adjustment uses a socket head cap screw (SHCS) securing a cable rod end bearing to the machine.
Primary adjustment is by turning the rod end bearing. The other end of the cable usually contains a roll pin cable
adjustment.
Qty.Description
1Cable end1
1SHCS2
1Jam nut3
1Cable rod end bearing4
1Nylon locknut5
Roll Pin Adjustment
This type of adjustment uses a roll pin and series of holes in the weight stack top weight connector.
Qty.Description
1Roll pin1
1Top weight connector2
Cam End Adjustment
This type of adjustment uses an adjustment bolt on the pulley bracket. Loosen nut and rotate cam bolt to adjust
cable.
Page 19 of 23
