ASSEMBLY INSTRUCTIONS
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all
packing materials from your area and place them back into the box. Do not dispose of the packing materials
until assembly is completed. Read each step carefully before beginning.
LEFT
R
RIGHT

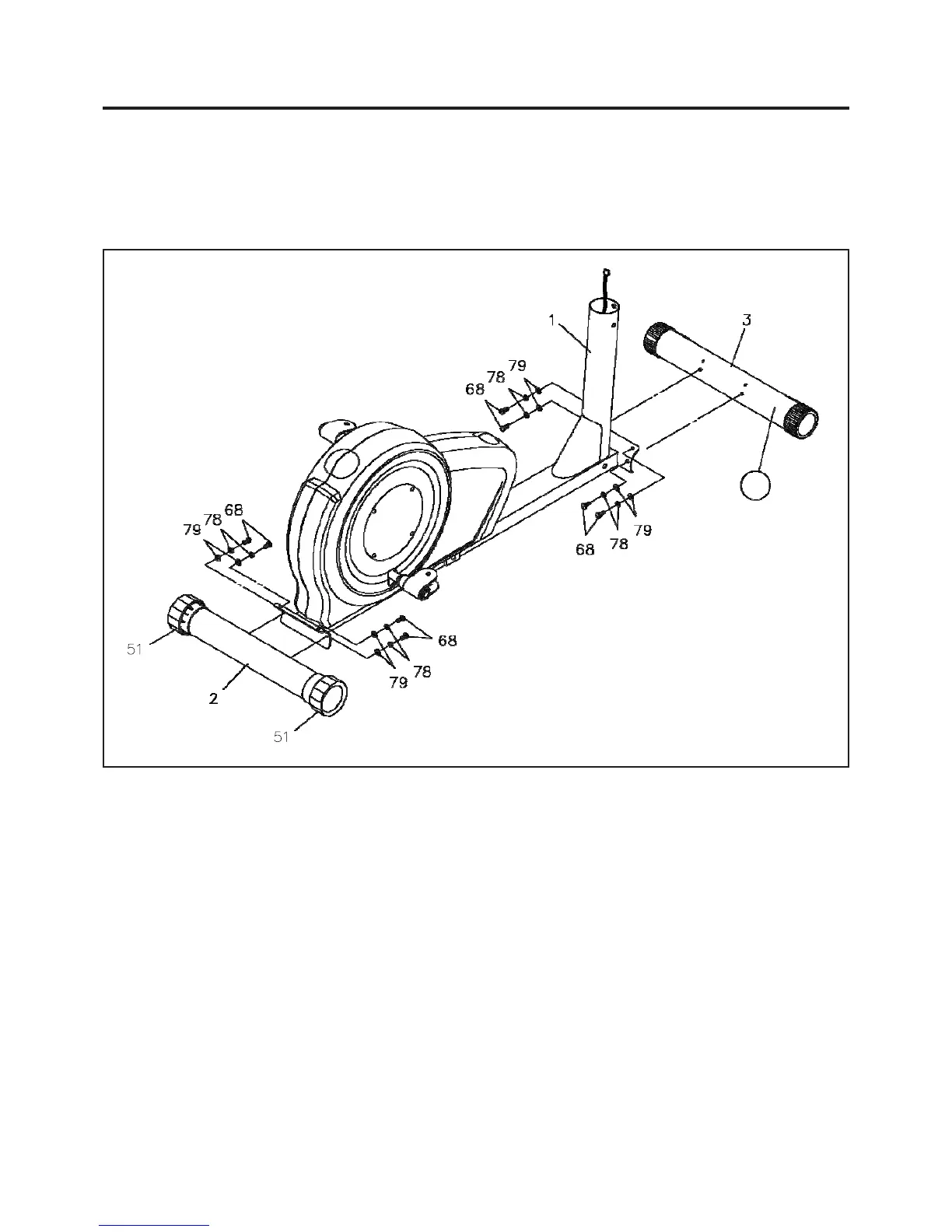

STEP 1
There is a "R" decal on one end of the FRONT STABILIZER(3), the one with wheels.
Attach the
FRONT STABILIZER(3) onto the MAIN FRAME(1) with the "R" decal end at right side and
secure with
BUTTON HEAD BOLTS(M8 x 20mm)(68), LOCK WASHERS(M8)(78),
and
WASHERS(M8)(79).
STEP 2
Attach the REAR STABILIZER(2) onto the MAIN FRAME(1) with BUTTON HEAD
BOLTS
(M8 x 20mm)(68), LOCK WASHERS(M8)(78), and WASHERS(M8)(79).
NOTE:
You can adjust the
LEVELING CAPS(51) on the REAR STABILIZER(2) to keep the Elliptical
stable.
