ASSEMBLY INSTRUCTIONS

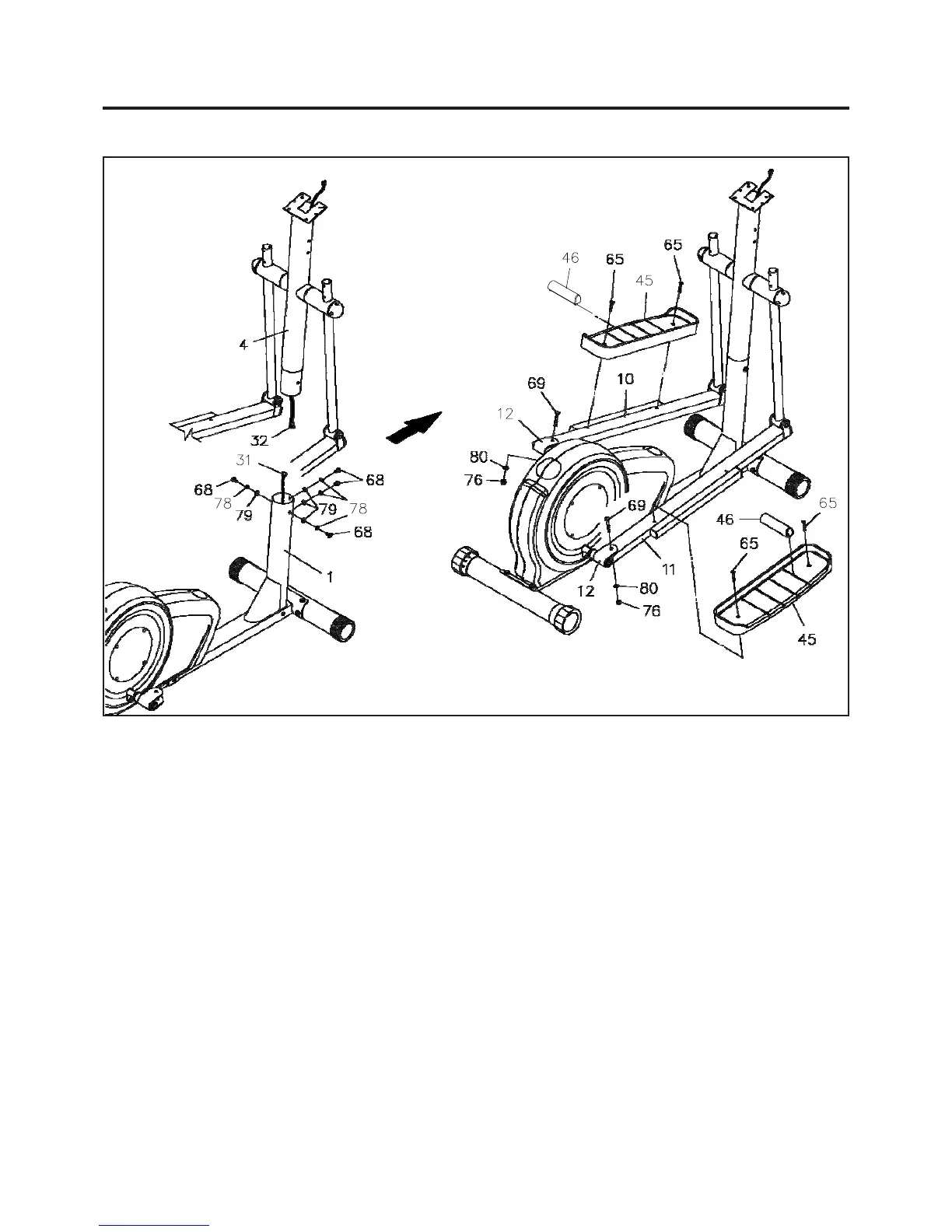

STEP 3
Connect the LOWER CONNECTION WIRE(31) to UPPER CONNECTION WIRE(32). Insert
the
UPRIGHT(4) onto the MAIN FRAME(1) and secure with BUTTON HEAD BOLTS(M8 x
20mm)(68), LOCK WASHERS(M8)(78),
and WASHERS(M8)(79).
STEP 4
Connect the LEFT and RIGHT PEDAL ARMS(10, 11) to the PEDAL ARM CONNECTORS(12) with
BUTTON HEAD BOLTS(M10 x 55mm)(69), WASHERS(M10)(80), and NYLOCK NUTS(M10)(76).
STEP 5
Attach the PEDAL CAPS(45) onto the LEFT and RIGHT PEDAL ARMS(10, 11) with ROUND HEAD
BOLTS(M6 x 25mm)(65). Slide the PEDAL DIVIDERS(46) into one of the four slots on the
PEDAL CAPS(45) to fit your shoes. You may select the front or the back of the PEDAL
CAPS(45)
for foot placement. You will have more vertical movement in the Elliptical stride if you place
your feet at the back of
the
PEDAL CAPS(45).
CAUTION: The lip on the PEDAL CAPS(45) must face inside. The sides without a lip face outside as
shown.
5
