ASSEMBLY INSTRUCTIONS
L
R

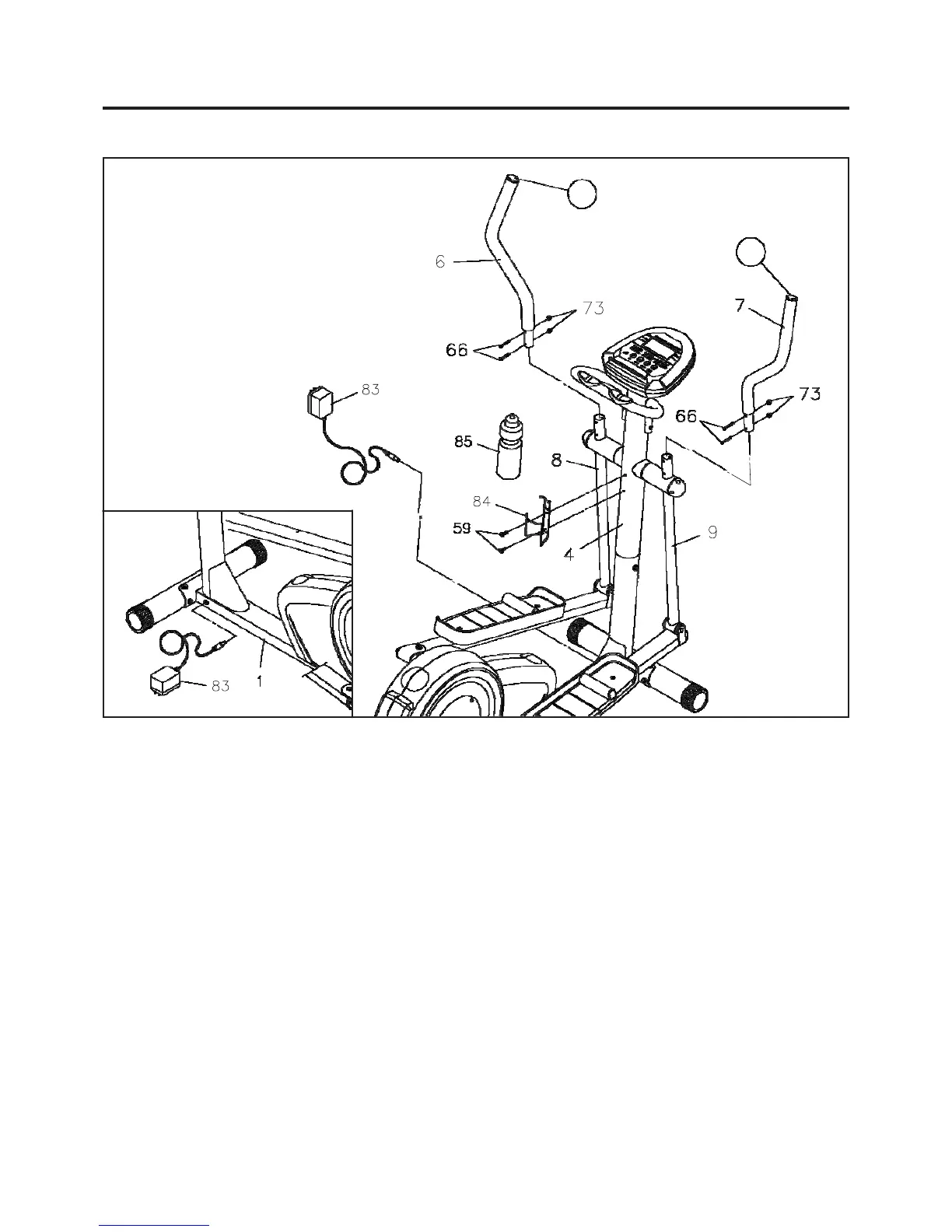

STEP 8
There is a "L" decal on the LEFT HANDLEBAR(6), and a "R" decal on the RIGHT HANDLEBAR(7).
Insert the LEFT HANDLEBAR(6) onto the LEFT PIVOTING ARM(8) and secure with ROUND HEAD
BOLTS(M6 x 35mm)(66)
and NYLOCK NUTS(M6)(73). Repeat on the right side.
STEP 9
Attach the MOUNTING BRACKET(84) onto the UPRIGHT(4) with ROUND HEAD
SCREWS
(M5 x 12mm)(59). Place the WATER BOTTLE(85) into the MOUNTING BRACKET(84).
STEP 10
Connect the ADAPTER(83) into the outlet located on the base of the MAIN FRAME(1), refer to the inset
drawing. Plug the
ADAPTER(83) into an electrical outlet.
NOTE:
The ELLIPTICAL can use the ADAPTER(83) or the batteries in the COMPUTER(33) as a
power source. To save battery power, use the
ELLIPTICAL with the ADAPTER(83)
plugged into an electrical outlet.
7
