6. OPERATION CONTROLS AND FUNCTIONS

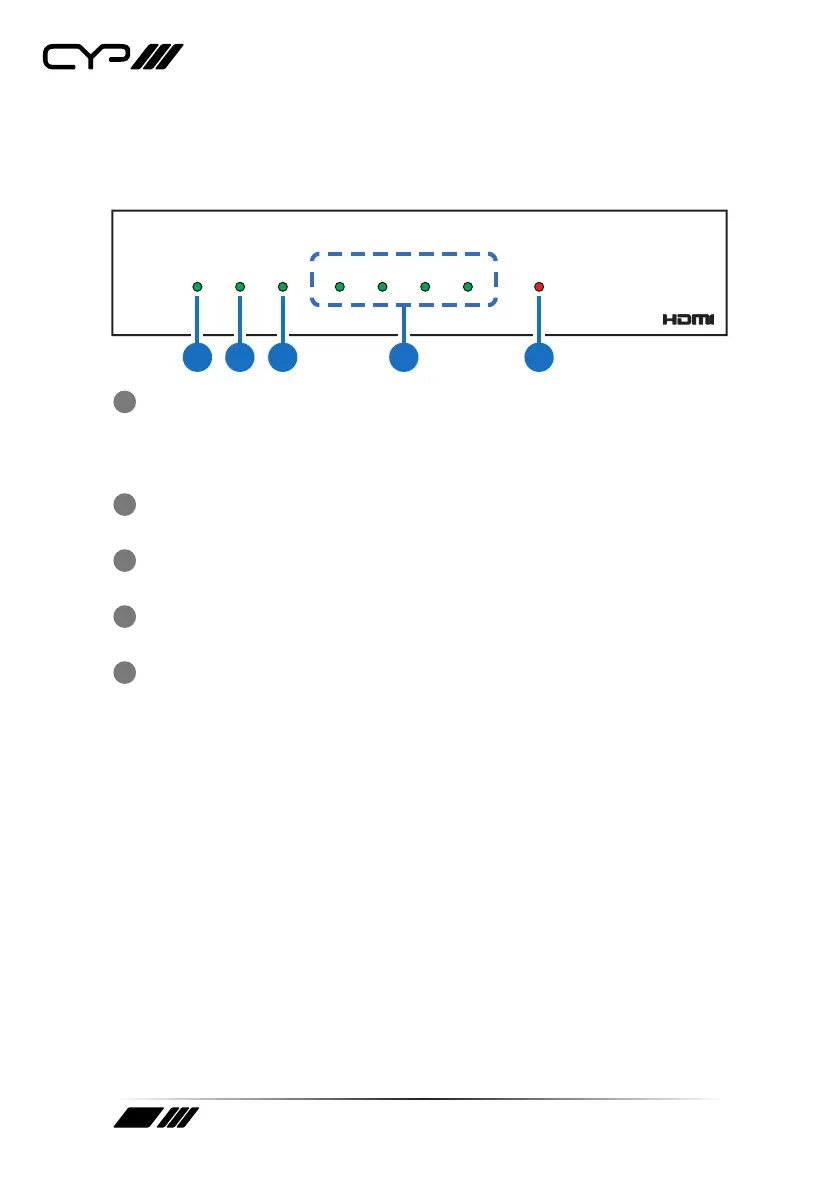

6.1 Front Panel
SYNC 4321 POWERHDCPHDMI / DVI
1 2 3 4 5
1
HDMI/DVI Indicator: The LED will illuminate when the selected
HDMI input source is originally from an HDMI output, the LED will not
illuminate when the selected HDMI input source is originally from a
DVI output.
2
HDCP Indicator: The LED will illuminate when the selected HDMI
input source is HDCP-protected.
3
SYNC Indicator: The LED will illuminate when the selected HDMI IN
connects to an HDMI or DVI output correctly.
4
HDMI output Indicator: The LED will illuminate when the output
sources are been connected.
5
POWER Indicator: The power LED will illuminate when power on.
