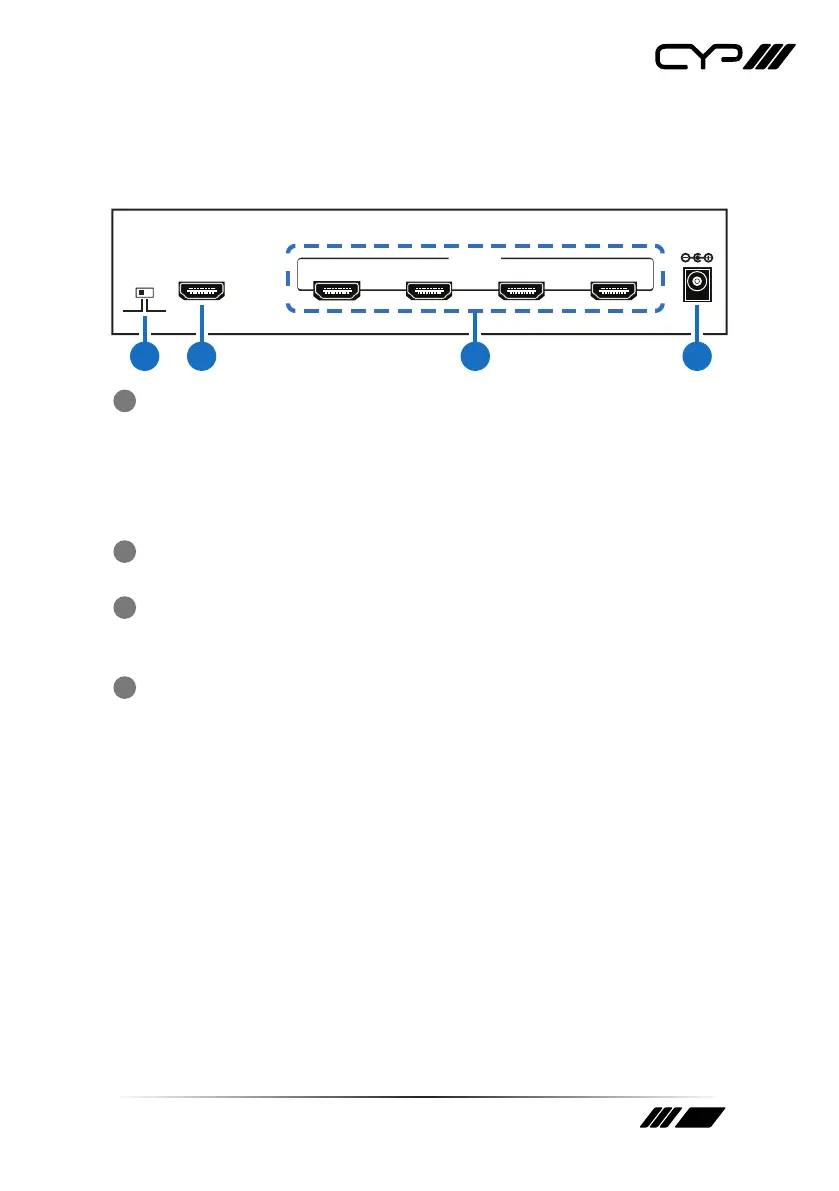

6.2 Rear Panel
1234
DC 5V
HDMI IN
EDID
HDMI OUT
STD TV
1 2 3 4
1
EDID Control Jumper: Default factory setting is TV, leave as is if the
display is properly. Switch to STD to use built-in EDID if the display has
problems. When the EDID control jumper in TV selection, the unit will
detect the first HDMI output source’s EDID and record in the unit. If
the first detected output source is DVI it will pass to next source, until
the first HDMI been detected.
2
HDMI Input: Connect input port to the HDMI or DVI output of your
source equipment such as DVD player or set-top-box.
3
HDMI Outputs 1 to 4: Connect each of the output ports to the HDMI
display. When more than one output connected, the HDMI outputs
play identical video signal simultaneously.
4
Power: Plug the 5V DC power supply into the splitter and connect the
adaptor to AC wall outlet.
