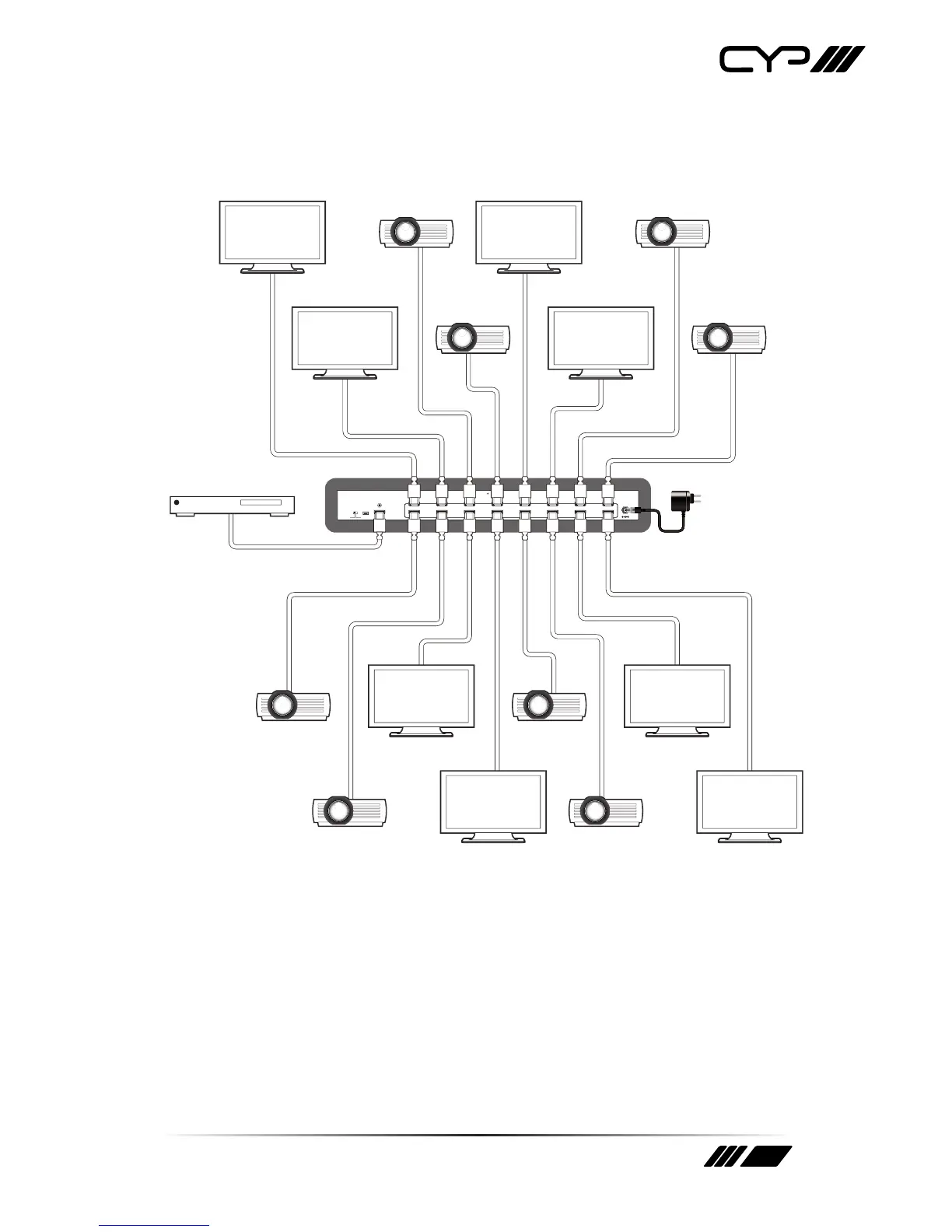

7. CONNECTION DIAGRAM
DC 5V
SERVICE
2
1
4
3
6
5
8
7
10
9
12
11
14
13 15
STDTV
INPUT OUTPUT
EDID
16
TV/Projectors
TV/Projectors
Power
Supply
Blu-ray
Player
HDMI Input
Simultaneous
HDMI Outputs
Simultaneous
HDMI Outputs
