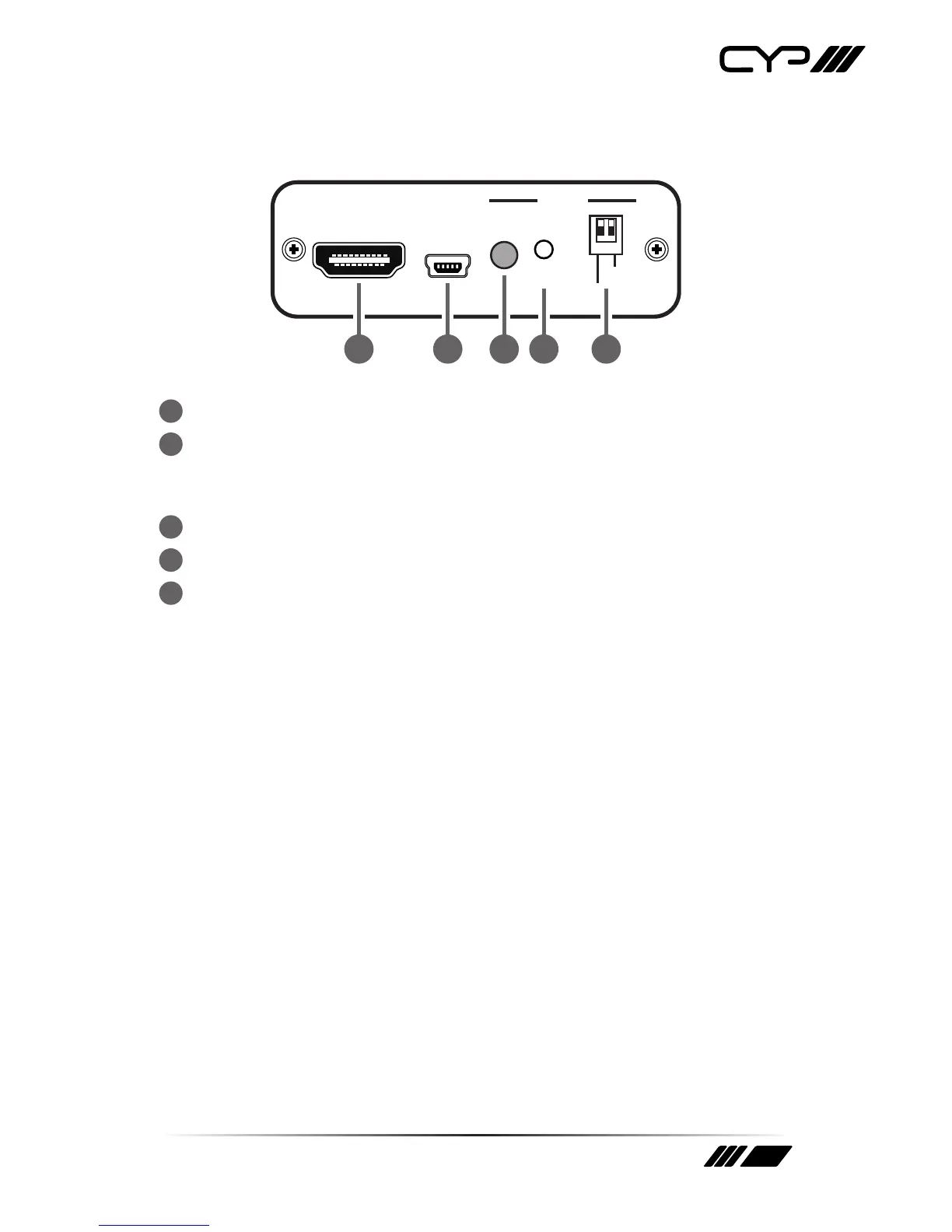

6.2 Rear Panel
HDMI OUT USB
EDID
Wr.
Bypass
Emulator
Rd.
STATUS
SET
1 2
1 2 3 4 5
1
HDMI OUT: Connect to an HDMI equipped TV/display.
2
USB: Connect the Mini-USB cable to an active USB device to power
the system. The device can also be powered by an suitably powered
HDMI input source.
3
EDID SET: Press to execute the EDID Read/Write function.
4
EDID STATUS LED: Indicates the EDID Read/Write status.
5
EDID Switch:
√ Read:
Connect a display to the HDMI output for EDID reading.
Set the 'Emulator/Bypass (2)' switch to 'Emulator' rst then set the
'Rd/Wr (1)' switch to the Rd. (Read) position.
Press the 'Select' button for 3 seconds to put the unit in Stored
mode.
Press the 'Select' button repeatedly to cycle through to the
required EDID setting (1~8).
Press the 'SET' button for 3 seconds to write the EDID to the
corresponding memory as indicated by the LED.
When the Status LED illuminates in green the EDID learning has
been successfull but if the Status LED is Red the learning has failed.
√ Write:
Connect a display to the HDMI output for EDID writing.
Set the 'Emulator/Bypass (2)' switch to 'Emulator' rst then set the
'Rd/Wr (1)' switch to the Wr. (Write) position.
