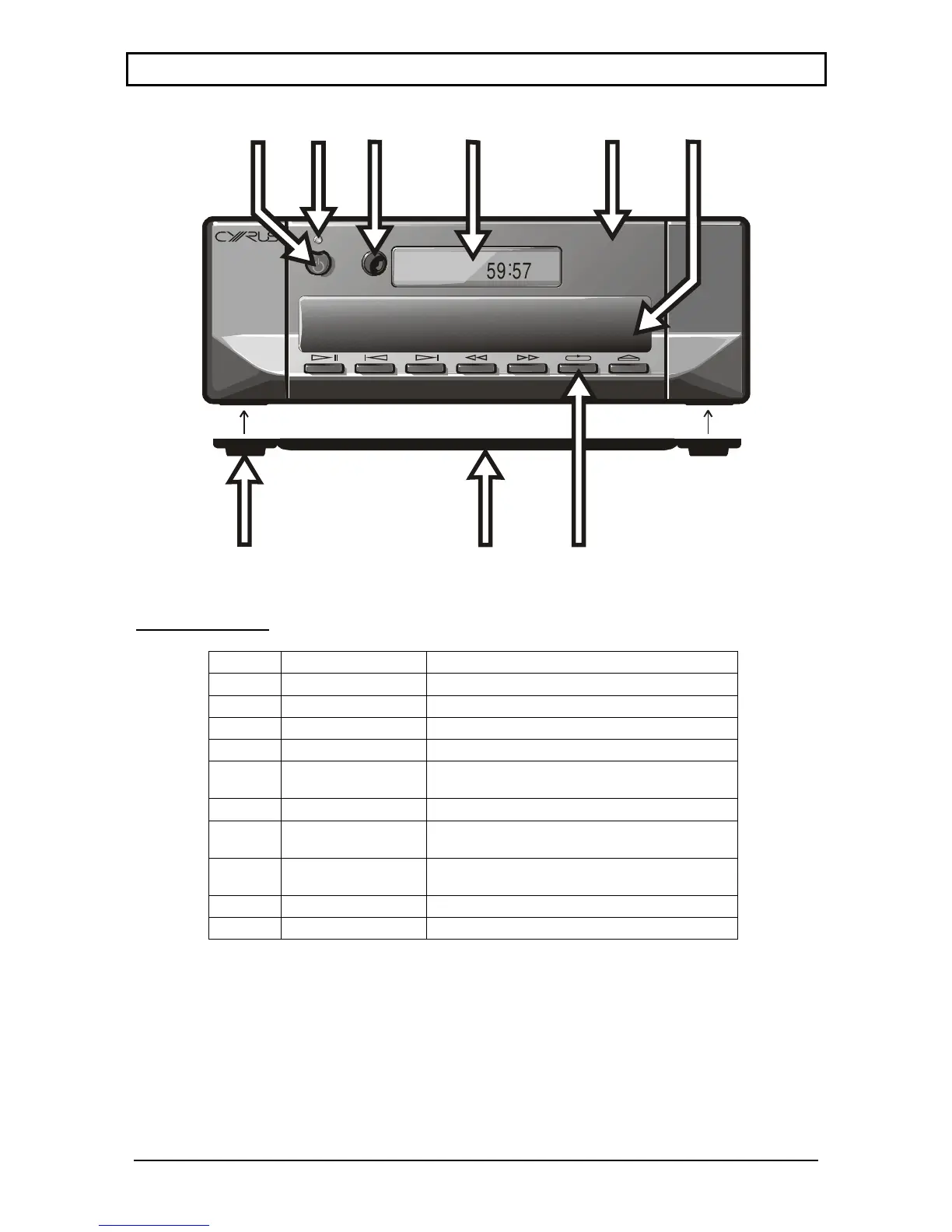

CYRUS CD6s FRONT PANEL PARTS DRAWING
© Cyrus Audio Ltd Nov 2006 17 Cyrus CD6s Service Manual Issue 2
h
ij
17
59
:
57
CD 6 s
a
b
c
d
g
ef
Front Panel parts
Ref Part Number Description
a AM-POWCP/ Standby knob trim
b AM-PLENS/ Power lens
c AM-LEMSM/02 Remote eye lens
d D3-DISPW/ Display window
e
I6-FACIA/SB
I6-FACIA/SS
Cyrus CD6s front facia black
Cyrus CD6s front facia silver
f I6-TMOLD/ Technical Moulding
g
I6-DRWFR/B
I6-DRWFR/S
CD tray trim black
CD tray trim silver
h
I6-TMKEY/B
I6-TMKEY/S
Function key black
Function key silver
i I6-BPPLT/C Base plate
j AM-BFOOT/ Rubber foot
