Cyrus Stream X2 - Cyrus Streamline Series Models; Rear Panel Connection Guide

Cyrus Streamline
2
series User Instructions
3
IN 4
IN 5
OUT
IN
MC-BUS
USB
PRE OUT FIXED OUT
IN 1 IN 2
IN 3 DIG OUT
ETHERNET
RS232
‘PHONES
MADE IN ENGLAND
MC-BUS
R
L
LEFT
RIGHT
aa bb cc dd ee ff gg hh 1)1) 1!1! 1#1#
ii 1@1@
Model Features
There are five Cyrus streaming models in this handbook:
Stream X
2
, Stream Xa
2
, Stream XP
2
, Stream XP
2
Qx and
Streamline
2
.
This handbook includes instructions for the connection and
operation of the four products. In the text of this handbook all
models are referred to as Streamline
2
, and model differences
are shown in the text where necessary.
The model number of your unit is printed on the label on the
rear panel of the unit.
The Stream X
2
features –
Cabled or wireless connectivity for your local computer
network, enabling you to enjoy music stored on devices
connected to the network or Internet radio broadcasts from
around the globe.
A USB port to enable playback of music stored on iPods/
iPhones or USB devices such a memory sticks, hard drives
or personal audio players.
Optical and digital inputs for connection of CD players, DAB
radios, digital TV receivers or other sources with SPDIF digital
connection.
A digital output for connection to a Cyrus amplifier equipped
with digital inputs.
The Stream Xa
2
adds -
Dual fixed analogue audio outputs for connection to a high-
end analogue integrated or preamplifier. A PSX-R upgrade
connection is also included for the ultimate sound quality.
Stream XP
2
and Stream XP
2
Qx add -
Fixed and variable analogue audio outputs for connection
to a high-end analogue audio system or directly to a power
amplifier. Headphones may be connected via a dedicated
headphone amplifier stage. A PSX-R upgrade connection is
also included for the ultimate sound quality. The Stream XP
2
Qx features the high performance Qx DAC upgrade option.
The Streamline
2
adds -
Fixed and variable analogue audio outputs, a dedicated
headphone amplifier and a stereo power amplifier to drive a
pair of loudspeakers directly.
NOTE: PSX-R and Qx DAC options are not available for the
Streamline
2
.

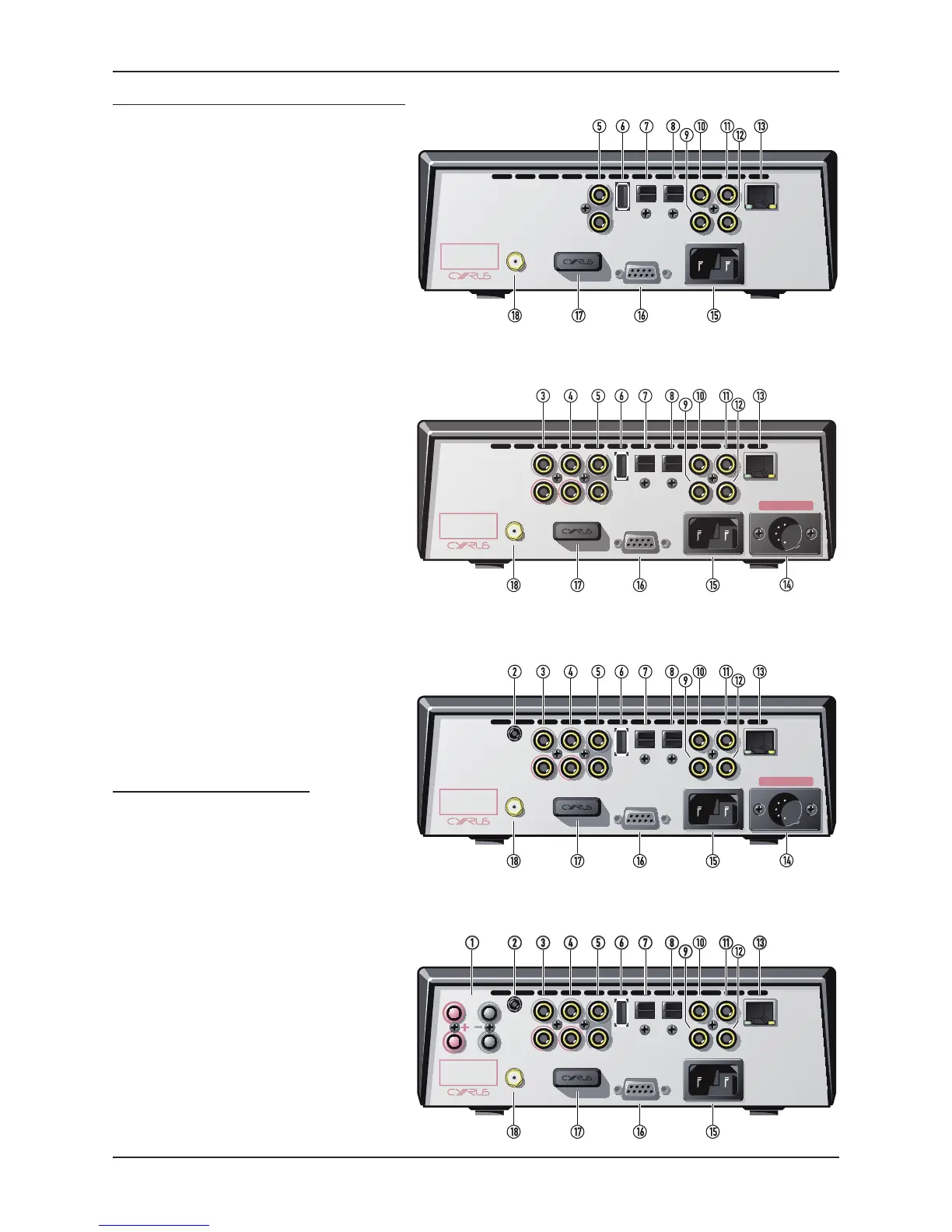

Key to the rear panel drawings
Speaker outputs1.
Headphone connection2.
Pre-Amplifier output3.
Fixed level analogue output4.
MC-BUS connection5.
USB port6.
Optical digital input 17.
Optical digital input 28.
Coaxial digital input 49.
Coaxial digital input 3 10.
Coaxial digital output11.
Coaxial digital input 512.
Ethernet connection13.
PSX-R connection14.
Power inlet15.
RS232 connection16.
n-remote aerial17.
Wi-Fi network aerial connector18.
IN 4
IN 5
OUT
IN
MC-BUS
USB
IN 1 IN 2
IN 3 DIG OUT
ETHERNET
RS232
MADE IN ENGLAND
MC-BUS
IN 4
IN 5
OUT
IN
MC-BUS
USB
PRE OUT FIXED OUT
IN 1 IN 2
IN 3 DIG OUT
ETHERNET
RS232
‘PHONES
MADE IN ENGLAND
MC-BUS
R
L
USE PSX-R ONLY
Stream X
2
Stream XP
2
, Stream XP
2
Qx
Streamline
2
IN 4
IN 5
OUT
IN
MC-BUS
USB
OUT1 OUT2
IN 1 IN 2
IN 3 DIG OUT
ETHERNET
RS232
MADE IN ENGLAND
MC-BUS
R
L
USE PSX-R ONLY
Stream Xa
2
