D.A.S. convert 12A User Manual

OUTPUT A OUTPUT B
HPF/THRU
SATELLITE X-OVER
LIMIT
SIGNAL
ON
- +
POLARITY
CAUTION
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
RISK OF ELECTRIC SHOCK
DO NOT OPEN
LEVEL
+6-oo
0
LOW-PASS
160Hz
100Hz
125Hz
N1918
D.A.S. AUDIO S.A. (
MADE IN SPAIN
Valencia)
115V
4A 50Hz/60Hz
AC INPUT
MAX. 3 UNITS IN PARALLEL
AC OUTPUT
Convert 18A
22000001
DEEP/LOUD
PRESET
AMPLIFIER
LOOP THRU
INPUT
LIMIT
SIGNAL
ON
CAUTION
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
RISK OF ELECTRIC SHOCK
DO NOT OPEN
D.A.S. AUDIO S.A. (
MADE IN SPAIN
Valencia)
T5 A L 250V FUSE
FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE REPLACE
ONLY WITH THE SAME TYPE
230V
2A 50Hz/60Hz
N1918
20080011
WARNING!
MAX. 10 UNITS IN PARALLEL
AC OUTPUT
AC INPUT
Convert 12A
1 UNIT
ARRAY EQ.
2
2
1
3
3
4
4
5
5
9
9
8
8
7
7
11
6
6
10

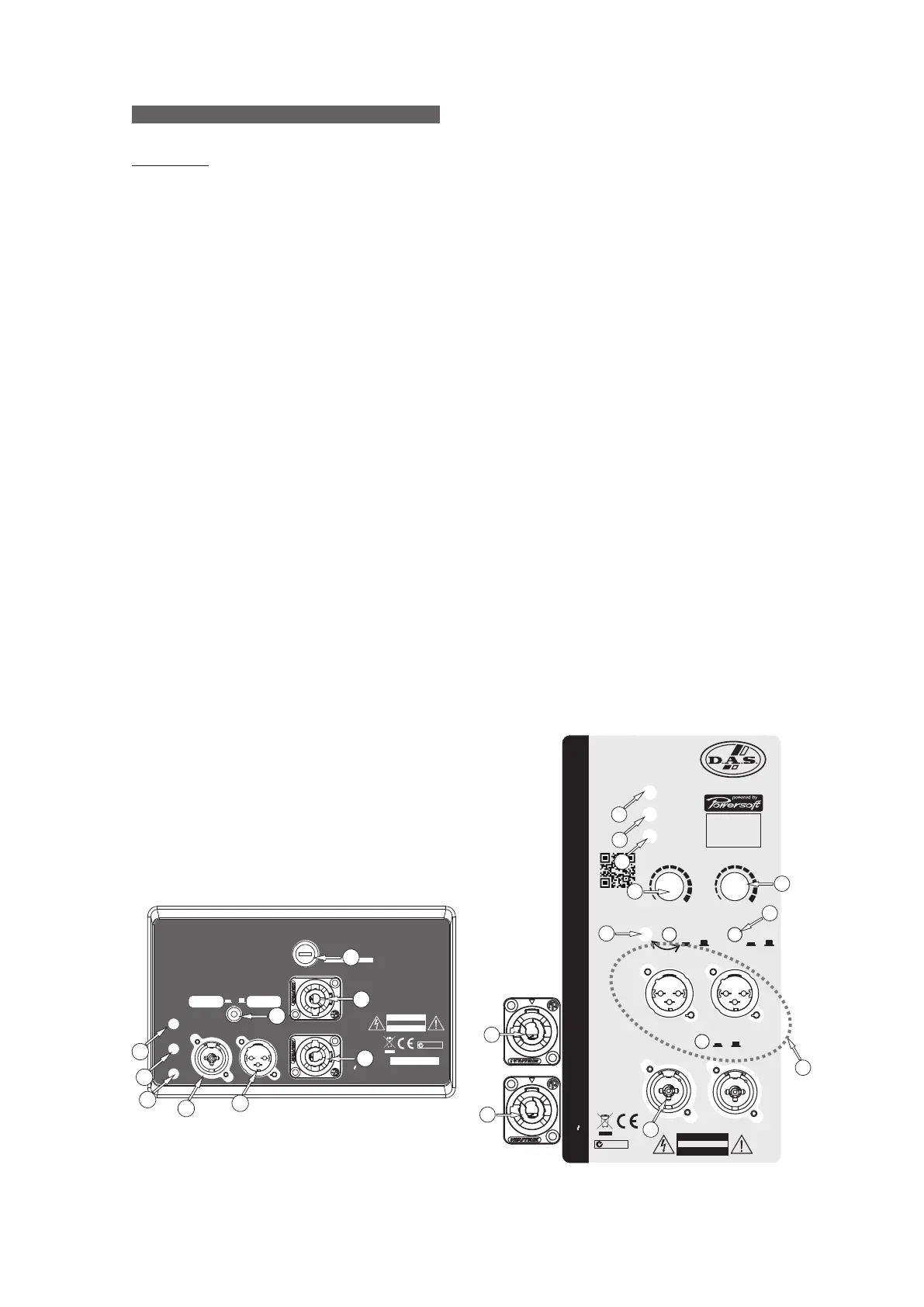

convert12A amplifier.
convert18A amplifier
1
13
Description
1) INPUT :
1/4” Jack+XLR c
:
1 or S =GND (ground).
2 or T =(+) Non inverted input.
3 or R =(-) Inverted input.
2) LOOP THRU (except SUBs):
XLR-type output signal connector for connecting several units together and sending them all the same
signal.
2) SATELLITE OUTPUT (only SUBs):
A and B, XLR-type output signal connectors for connecting several units together and sending them all
the same input signal or filtered signal (by using THRU/HPF).
3) LIMIT :
Red LED indicates amplifier saturation. Amplifier limiter indicator lights.
4) SIGNAL :
Green LED indicates signal presence.
5) ON :
Green LED indicates that the unit is ON.
6) ARRAY EQ :
Button for switching between two types of frequency response.
6) SUB LEVEL (only SUB´s) :
Potentiometer for adjusting the unit level.
7) FUSE :
Do not use a not recommended fuse.
7) LOW-PASS CROSSOVER (only SUB´s) :
Button for LPF adjustment for subwoofer. We recommend 100 Hz.
ombined socket-type input signal connector. This is a balanced connector just like the
LOOP THRU connector with the following pin assignments
8) AC INPUT :
PowerCon NAC3FCA mains connector (inserted, rotated and locked for ON). Only use this
equipment with an appropriate mains cord.
9) AC OUTPUT :
PowerCon NAC3FCB connector for AC loop thru allows up to 6 units when using a 230V version (see
unit’s label)). Only use this equipment with an appropriate mains cord.
10) PHASE :
Switch for inverting the phase of the unit.
11) PRESET :
Button for switching between two types of preset (DEEP / LOUD)
Manual del Usuario / convert series / User’s Manual
