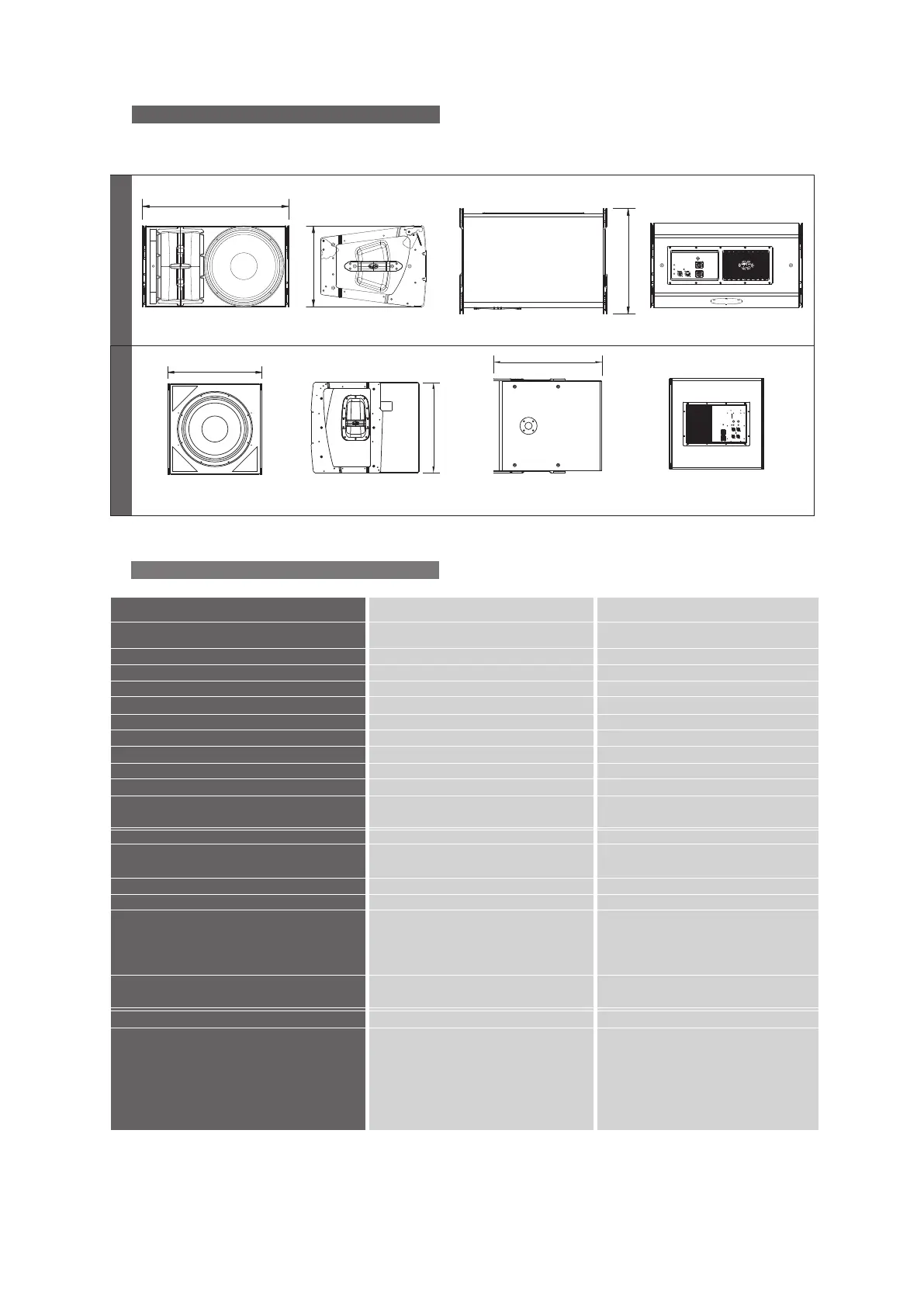

D.A.S. convert 12A User Manual

LINE DRAWINGS
ALL DIMENSIONS IN MILIMETERS
Front View
Front View
Right View
Right View
Top View
Top View
Rear View
Rear View
582
419
322
SPECIFICATIONS
convert 12A convert 18A
convert 12A
convert 18A
MODEL
LF Amplifier Power
HF Amplifier Power
Nominal Amplifier Power
Input Type
Input Impedance
Sensitivity
Frequency Range (-10dB)
Horizontal Coverage (-6dB)
Vertical Coverage
Rated Maximum Peak SPL at 1m
Transducer/Replacement Parts
Enclosure Geometry
Enclosure Material
Color/Finish
Rigging System Splay Angles
Safety Factor
Connectors
AC Power Requirements
Dimensions (H x W x D)
Weight
Accesories
1000 Wpeak - 500 Wcontinuous
200 Wpeak - 100 Wcontinuous
Balanced Differential Line
Line: 20kOhms
Line: 1.95 V (+8dBu)
63 Hz - 20 kHz
90º Nominal
15º Nominal
131 dB
LF: 1 x 12V4/GM 12P4
HF: 2 x M-60N/GM M-60N
Trapezoidal 15º
Birch Plywood
Black or White/ISO-flex Paint
15º
Maximum 6 cabinets @ 7:1
INPUT: Female XLR
LOOP THRU: Male XLR
AC INPUT: PowerCon
AC OUTPUT: PowerCon
3.4A, 115V, 50 Hz/60 Hz
1.7A, 230V, 50 Hz/60 Hz
32.2 x 57.6 x 41.7 cm
12.7 x 22.7 x 16.4 in
27.5 kg
AX-convert12
AXS-convert12
Pick-up-AX-convert12
-
-
2000 Wpeak - 1000 Wcontinuous
Balanced Differential Line
Line: 20kOhms
Line: 1.95 V (+8dBu)
35 Hz - 160 Hz (variable LFP)
-
-
134 dB
LF: 1 x 18H/GM 18G
-
-
Birch Plywood
Black or White/ISO-flex Paint
-
-
INPUT: 2 x Female XLR
LOOP THRU: 2 x Male XLR
AC INPUT: PowerCon
AC OUTPUT: PowerCon
3.2A, 115V, 50 Hz/60 Hz
1.6A, 230V, 50 Hz/60 Hz
56.6 x 57.6 x 67 cm
22 x 22.7 x 26.4 in
47 kg
TRD-6
7
580
555
663
D.A.S. Audio S.A. continuously strives to enhance its products through investigation and development. All
specifications are subject to change without prior warning.
Manual del Usuario / convert series / User’s Manual

D.A.S. convert 12A Specifications

General

Brand	D.A.S.
Model	convert 12A
Category	Speakers
Language	English
