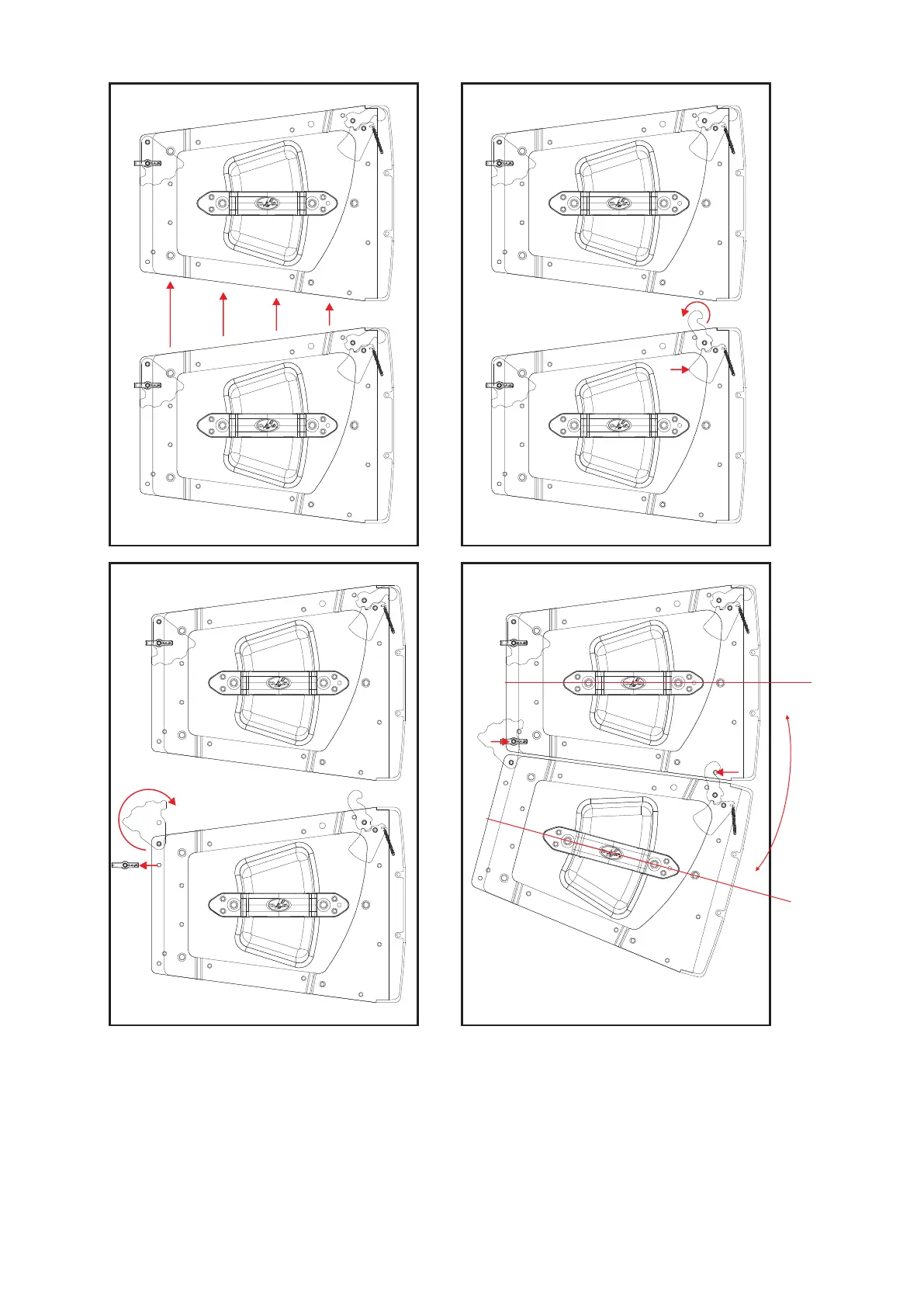

This figures illustrate the best way to rig one
enclosure to another. Firstable, push the iron piece
to free the front rod (1). Turn the front rod until fix it
(2). Remove the rear safety pin to free the rear rod
(3). Turn the rear rod (4).
Hook the rear rod in the lower screw indicated
on the upper enclosure (5). Up the rear until mach
with the anchor slots from the rear part of the
upper enclosure and insert again the safety pin (6).
As you can see, the enclosures form a 15º angle.
