21
RS485 connection

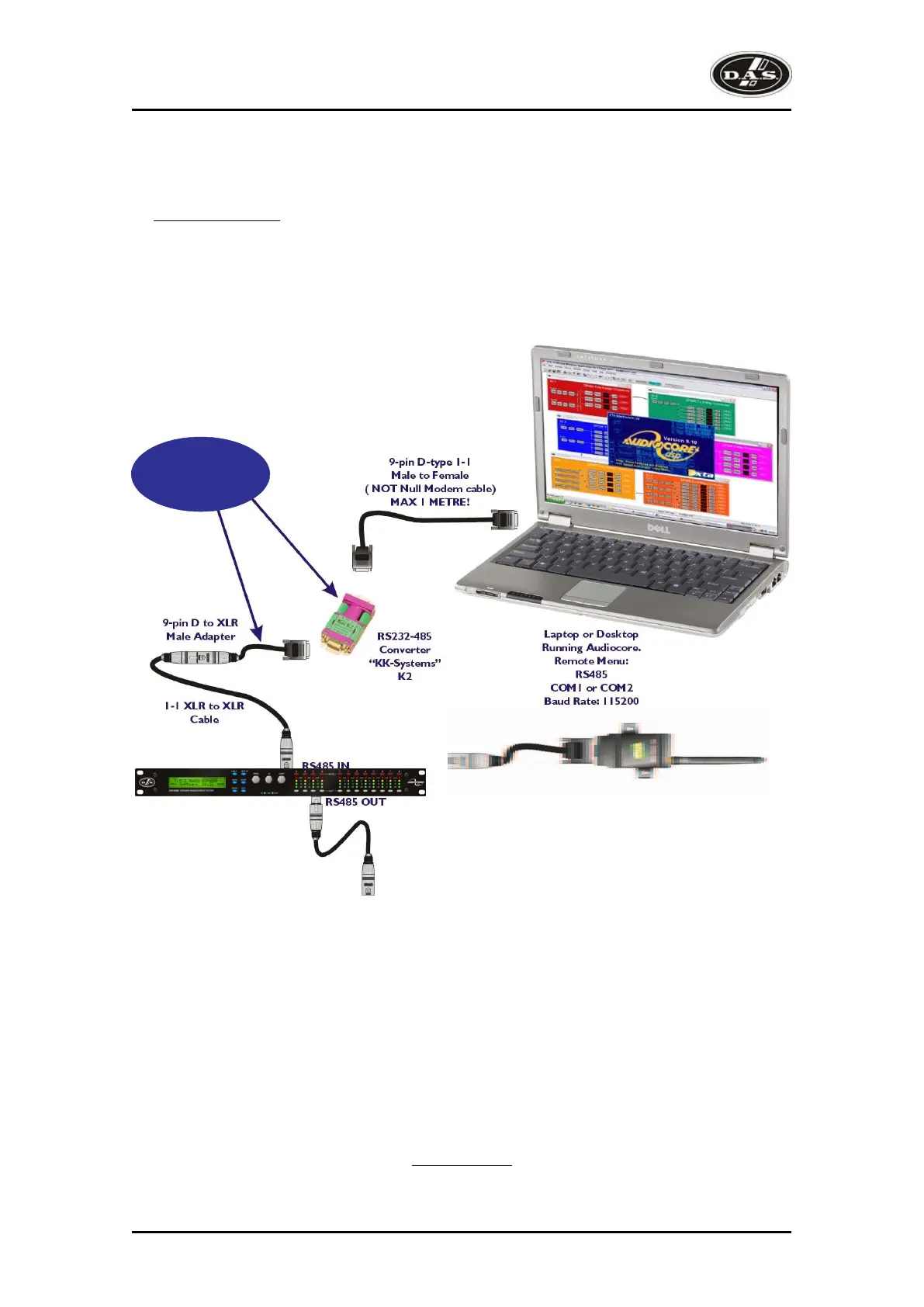

To use RS485 communication directly from a computer, a master unit must be configured to receive
RS485. You must have a suitable RS485 port on your computer, or a converter connected to the serial port
in use. This configuration is shown below, along with the required unit setup.
The adapter is available in a kit, which includes an RJ-45 adapter, the XLR to 9-pin adapter, and the
converter itself. This complete kit is part number INT-485.
If you need to make up one of the XLR to 9-pin adapters, the pin-out is:
XLR D-type
1 1
2 3
3 8
DSP-4080
Interface Sub Menu
Mode = RS485 Mode
SERIAL SPEED = 115200
Stop MIDI Prog Chng Yes
Remote ID Number = 1
Additional DSP-4080s
may be set up as slaves
with incremental
ID numbers
as necessary...
OR
via wireless with
Walkabout Pack II KIT
(Please see your manual
available from our website)
RS232 to RS485
CONVERTER KIT
Part Number
INT-485
DSP-4080
User’s Manual
