D.A.S. DSP-4080 - USB to RS485 Conversion

22

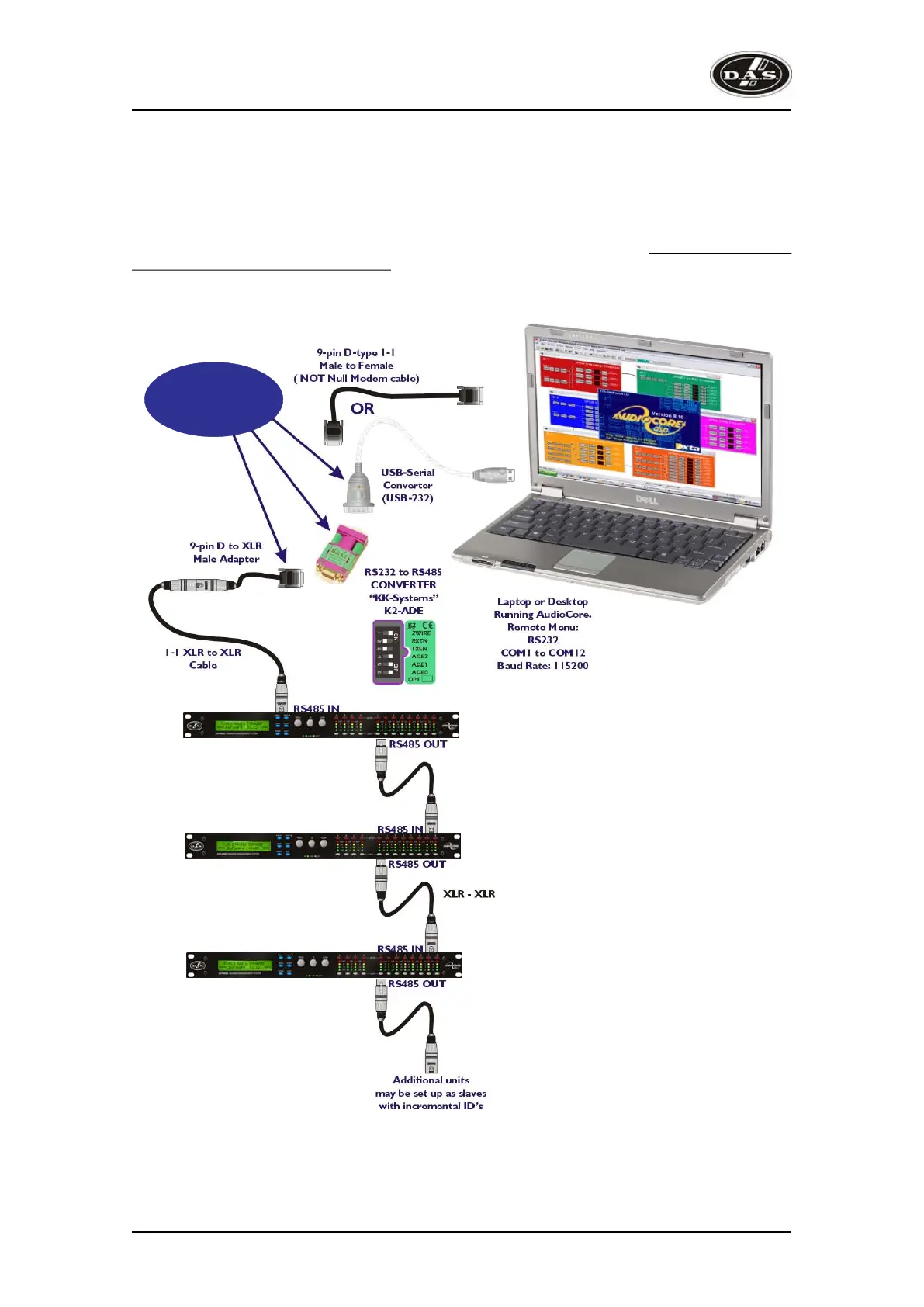

If your laptop or PC does not have a spare serial port (or any serial ports for that matter!), the RS485
converter must be connected through a USB – Serial converter. The RS485 converter that DAS recommend
is available in two types – the standard K2, and the more advanced K2-ADE version. Only K2-ADE version
will work with USB-Serial converters, as these converters do not support the extra handshake lines
used with the standard converter.
The adapter is available in a kit, which includes a USB-Serial converter , the XLR to 9-pin adapter, and
the K2-ADE converter itself. This complete kit is part number USB-485.
DSP-4080
Interface Sub Menu
Mode = RS232 Mode
SERIAL SPEED = 115200
Stop MIDI Prog Chng Yes
DSP-4080
Interface Sub Menu
Mode = RS485 Mode
SERIAL SPEED = 115200
Stop MIDI Prog Chng Yes
DSP-4080
Interface Sub Menu
Mode = RS485 Mode
SERIAL SPEED = 115200
Stop MIDI Prog Chng Yes
USB to RS485
CONVERTER KIT
Part Number
USB-485
XLR-XLR
DSP-4080
User’s Manual
