13
Pasadores de seguridad
Quick release pin
Ø=8mm ; L=35mm
Guías de LX series
LX series Guides

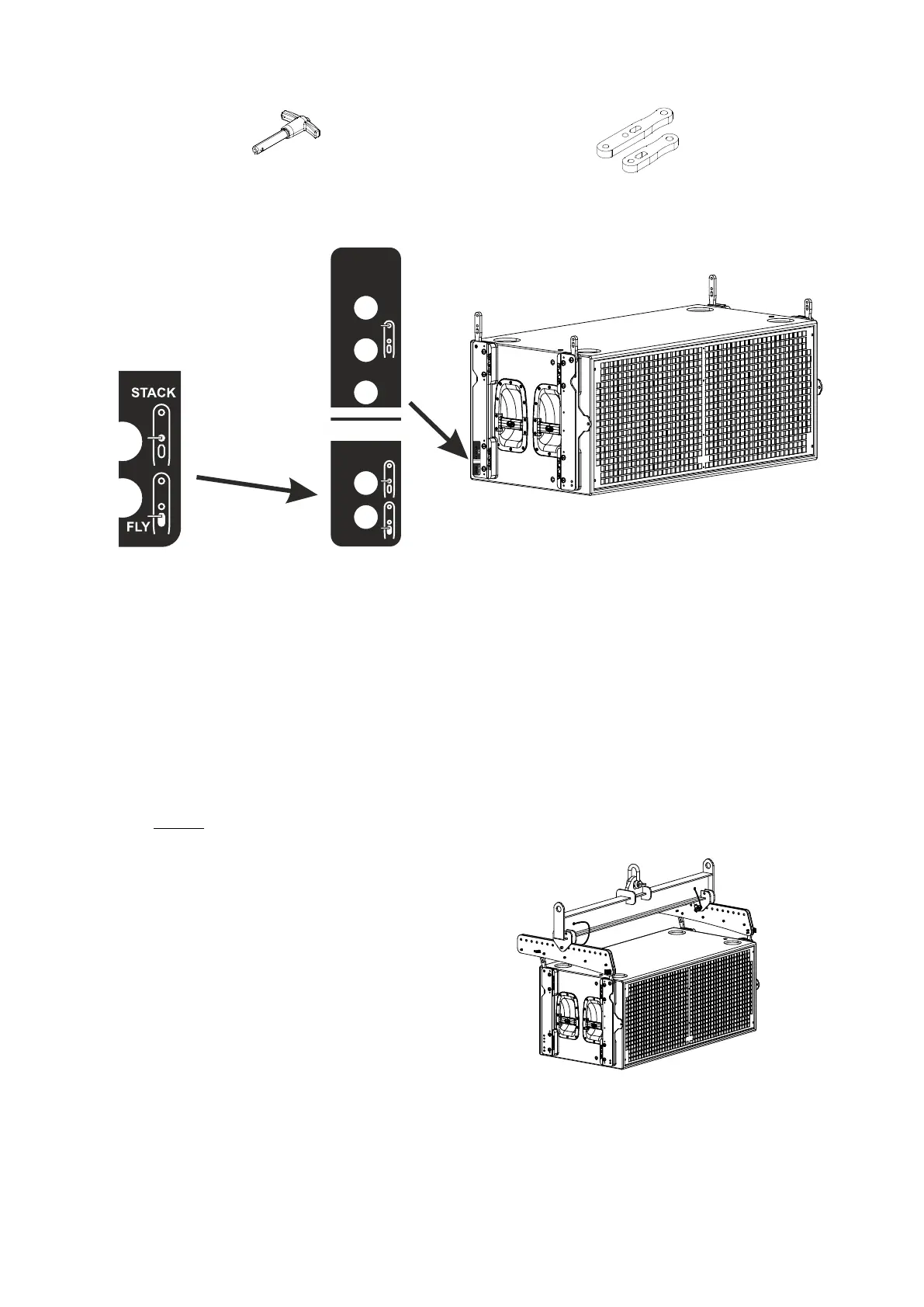

To facilitate the correct positioning of the guides in the corresponding angle hole of the upper unit (using
the quick release safety pins), a sticker indicates the splay angle obtained whether stacked or flown. To
secure the guides in the angle holes, 8 mm high resistance quick release safety pins are used (6 pins per
unit).
To fly the systems and define the splay angles, the pin should be inserted in the slot of the rear guide. To
stack the systems, the pin should be inserted in the hole of each guide.
In most cases, to join one box to another the procedure described above will suffice. We will proceed to
describe other accessories available for safe and simple stacking, transport and flying of the systems.
AX-AE50
This accessory can be used with AERO-50,
also. This rigging structure is comprised of a steel
central bar and two detachable side panels that
are fixed using high resistance quick release safety
pins.
They have a centrally located reinforcement
which is used to attach the lifting cables.
Depending on the position of the safety pins, the
array will achieve a different angle of inclination
(see the positions marked on the side panels).
The first box will be attached to this structure
using 6 safety pins according to the procedure
described on the preceding pages. Once this is
accomplished, the structure can be left with a
vertical orientation taking into account the position
of the safety pin. With the use of the EASE Focus
simulation program, determine what position
should be used to achieve the desired array
inclination.
Etiqueta de los herrajes de LX-218CA-R / LX-218CA-R-NET
LX-218CA-R / LX-218CA-R-NET rigging structures label
APILAR
COLGAR
0º
2º
4º
æro / AX-combo
0º
0º
LX
STACK
FLY
USE ONLY 1
SAFETY PIN
CAUTION!
W.L.L. 1700Kg
0º
2º
4º
æro
/ AX-
combo
0º
0º
LX
STACK
FLY
USE ONLY 1
SAFETY PIN
CAUTION!
W.L.L. 1700Kg
Peso: 51 Kg
Weight: 112.2 lbs
Dimensiones (Al x An x P): 430 x 1440 x 721 (mm)
Dimensions (H x W x D): 16.9 x 56.7 x 28.4 (in)
W.L.L.: 1700 kgf
AX-AE50
Manual del Usuario / LX series / User’s Manual
