D-Link AirPremier DAP-2360

34D-Link DAP-2360 User Manual
Section 3 - Conguration

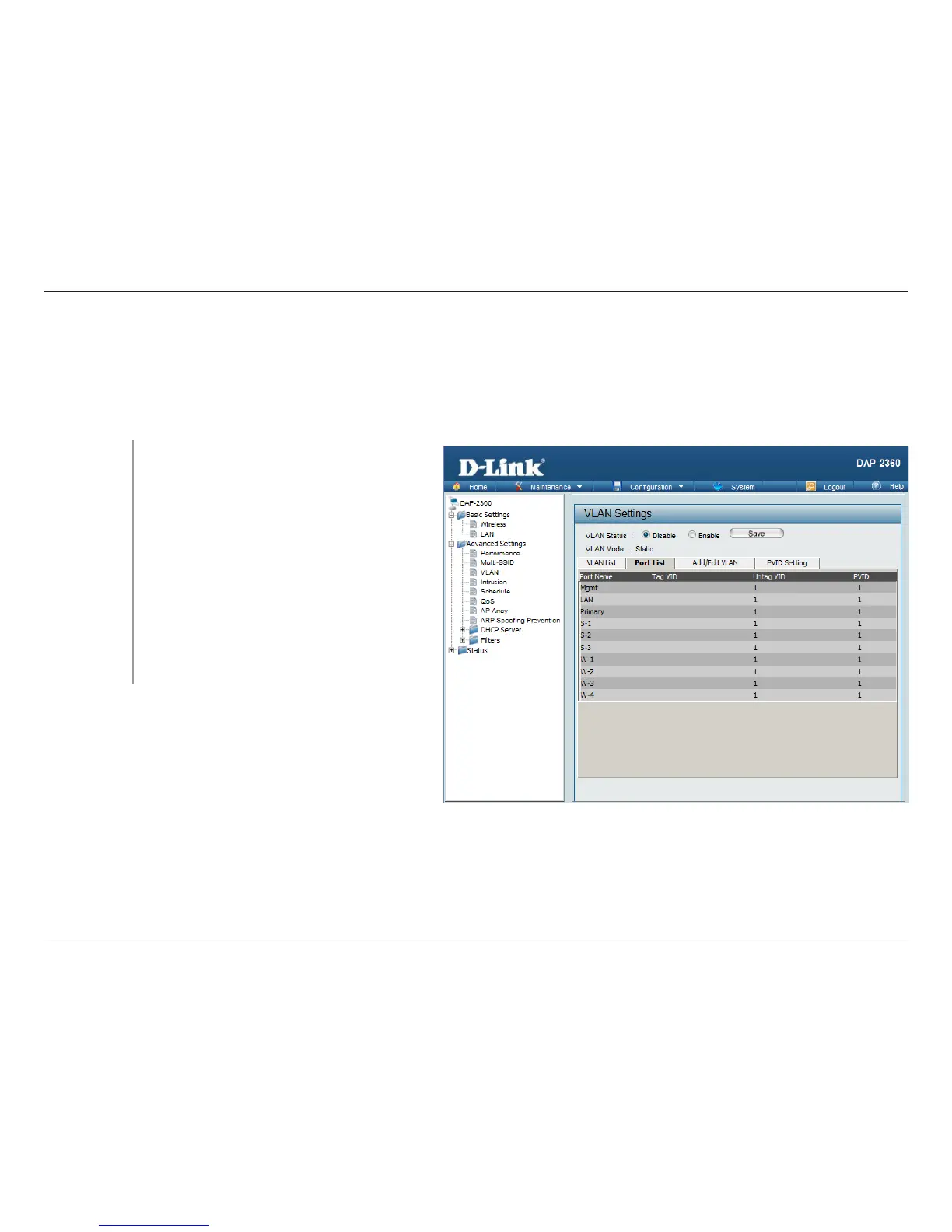

Port List
The Port List tab displays the current ports. If you want to congure the guest and internal networks on a Virtual LAN
(VLAN), the switch and DHCP server you are using must also support VLANs. As a prerequisite step, congure a port
on the switch for handling VLAN tagged packets as described in the IEEE 802.1Q standard.
Use the radio button to toggle to Enable. Next,
go to the Add/Edit VLAN tab to add or modify
an item on the VLAN List tab.
The name of the port is displayed in this
column.
The Tagged VID is displayed in this column.
The Untagged VID is displayed in this column.
The Port VLAN Identier is displayed in this
column.
VLAN Status:
Port Name:
Tag VID:
Untag VID:
PVID:
