D-Link DAP-1320 Installation And Setup Guide

5
How do I setup and install my DAP-1320?

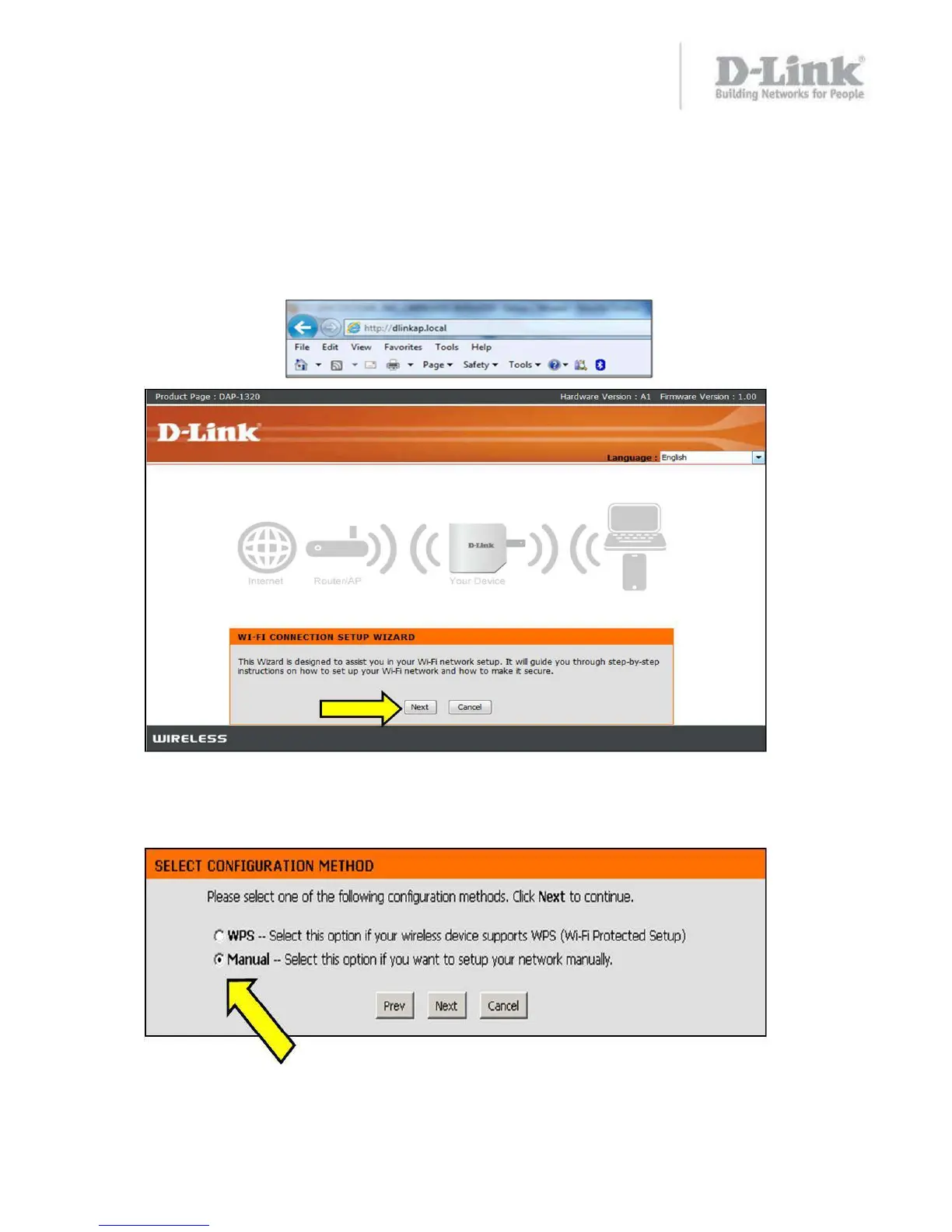

Step 3: Open a Web browser and type dlinkap.local.
You will be directed to the d-link setup page. Click next to start the setup.
Step 4: Select the Manual configuration method and click “Next”.
The DAP-1320 will scan for available wireless networks. Select the Wi-Fi network you would like the
DAP-1320 to extend and click “Connect”
Note: If the wireless network you are trying to extend is security enabled, you will be prompted for
the Wi-Fi password.

D-Link DAP-1320 Specifications

Wireless Standards and Antennas

wireless standards	IEEE 802.11n, IEEE 802.11g
antenna type	2 Internal Antennas

Weight and Dimensions

dimensions	1.89” x 1.65” x 2.11” (4.8 x 4.19 x 5.36 cm)
weight	0.152 lb (68.94g)
