5. Your Setup is Complete

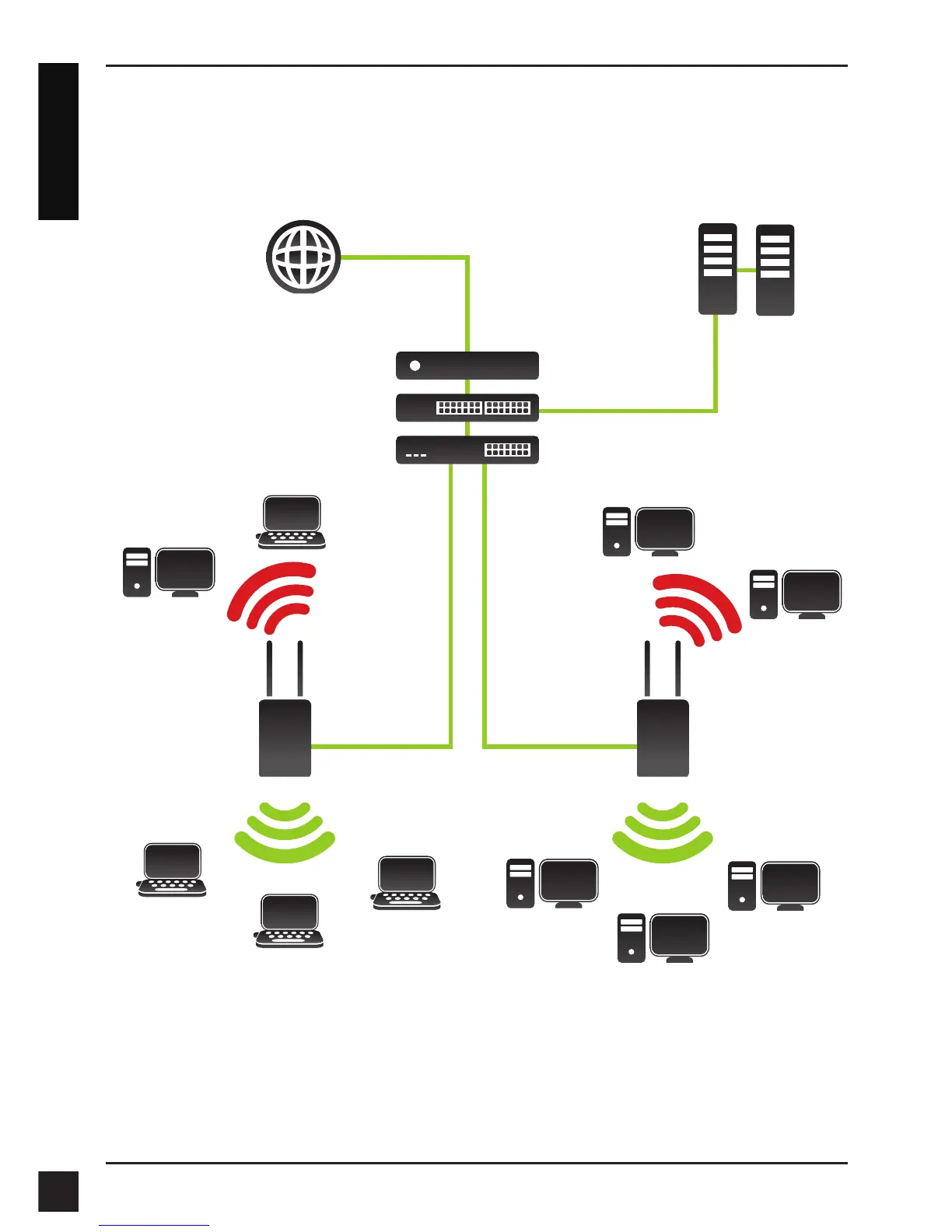

When you have completed the steps in this Installation Guide and congured your for
your network, your network should look similar to this:
* Maximum Wireless signal rate derived from IEEE 802.11n specications. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network trafc, building materials and
construction, and network overhead lower actual data throughput rate.
T1
RADIU Server
Computer 3 with
Wireless N Adapter
Computer 1 with
Wireless N Adapter
Computer 2 with
Wireless N Adapter
Computer 5 with
Wireless N Adapter
Computer 6 with
Wireless N Adapter
Computer 7 with
Wireless N Adapter
Computer 8 with
Wireless N Adapter
Computer 9 with
Wireless N Adapter
Computer 10 with
Wireless N Adapter
Computer 4 with
Wireless N Adapter
PoE Switch
Business-class Router
Managed Switch
DAP-2360DAP-2360
