D-Link DCS-2132L Quick Installation Guide

3
ENGLISH
If you wish to connect your camera to your router with a wireless connection,
you can simply disconnect the Ethernet cable and move the camera to its
intended location.
From any computer, open a web browser, go to
http://www.mydlink.com and log in to your account.
Click on the device name when the new device
notication appears to add the camera to
your account.

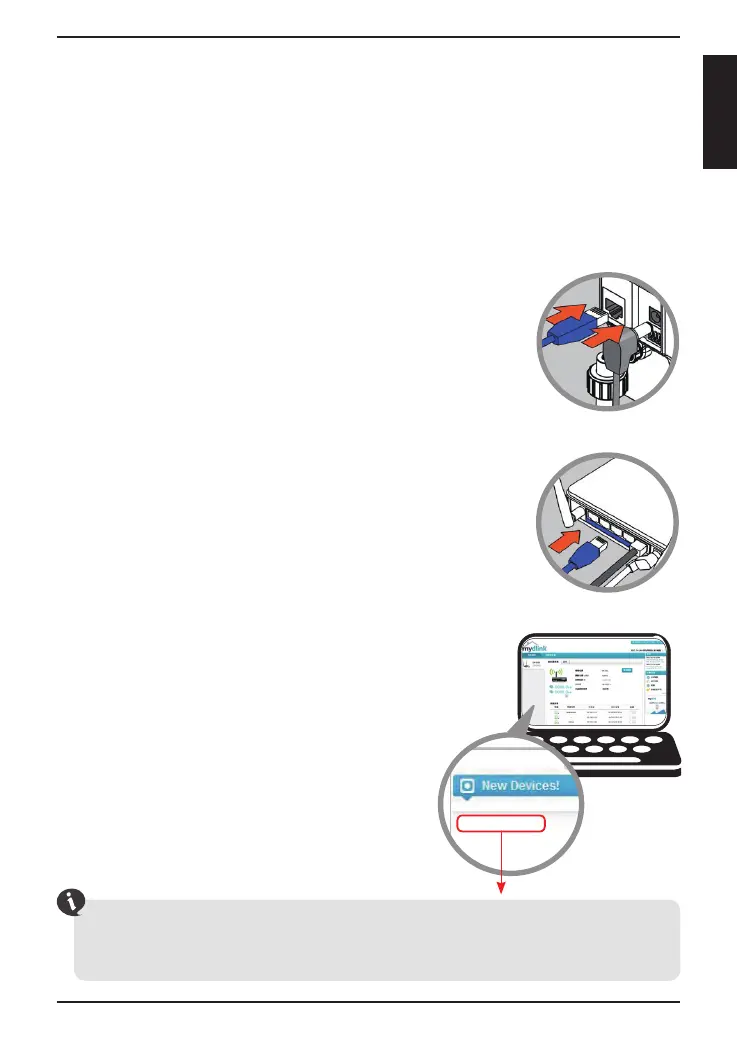

Connect the power cable and Ethernet cable to your
cloud camera.
Connect the other end of the Ethernet cable to
your D-Link Cloud Router and connect the camera’s
power adapter to a power outlet.
Setting up your Camera
Using a D-Link Cloud Router (Zero Conguration)
If you have a D-Link Cloud Router, you can take advantage of Zero
Conguration Setup. This feature automatically congures your camera’s
settings for you and adds it to your mydlink account automatically. If you
do not have a D-Link Cloud router, refer to the next page to install and
congure your camera.
DCS-2132L

D-Link DCS-2132L Specifications

General

Maximum resolution	1280 x 800 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	176 x 144, 320 x 240, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Field of view (FOV) angle	66 °
Sensor type	CMOS
Optical sensor size	1/4 \
Digital zoom	10 x
Optical zoom	- x
Focus adjustment	2.0
Fixed focal length	3.45 mm
Active tampering alarm	No
Video motion detection	Yes
Compatible memory cards	microSD (TransFlash), microSDHC
LED type	IR
Night vision distance	5 m
Type	IP security camera
Certification	CE, CE LVD, FCC, C-Tick
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Box
Product color	White
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	HTTP, FTP, TCP/IP, SMTP, DHCP, PPPoE, DDNS, UPnP, RTP / RTSP/ RTCP, QoS, CoS, IGMP
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3.65 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1329 mm
Pallet height (sea)	1926 mm
Pallet gross weight (air)	255856 g
Pallet gross weight (sea)	372784 g
Quantity per pallet (air)	420 pc(s)
Quantity per pallet (sea)	630 pc(s)
Shipping (inner) case width	324 mm
Shipping (inner) case height	199 mm
Shipping (inner) case length	538 mm
Shipping (inner) case weight	5568 g
Shipping (inner) case net weight	4818 g
Number of cartons per pallet (air)	42 pc(s)
Number of cartons per pallet (sea)	63 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Depth	58 mm
Width	89 mm
Height	127 mm
Weight	116 g
Package depth	160 mm
Package width	152 mm
Package height	102 mm
Package weight	481.8 g
