D-Link DCS-2132L Quick Installation Guide

6
ENGLISH
Mount the Camera

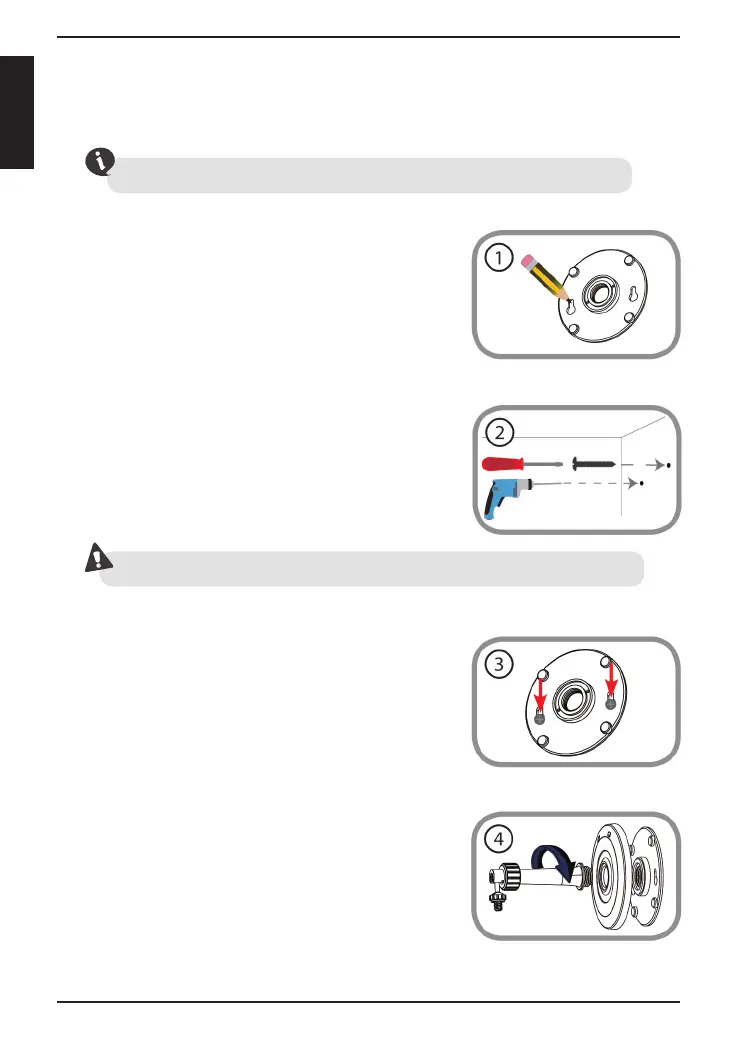

1. Place the mounting base where you want
to position the camera and use a pencil to
mark the holes.
4. Place the base cover on the base and
screw the camera stem clockwise into the
mounting base.
2. Depending on the material of the wall or
ceiling, use proper tools to drill two holes or
screws where you marked. If the wall is made
out of concrete, drill the holes rst, insert the
plastic anchors and then the screws.
3. Place the mounting base over the screw that
is mounted on the wall. Make sure to t the
screw-heads over the big holes and slide
it downward to lock rmly. Lightly pull the
base forward to make sure that it is locked.
Please refer to the steps below to assist you with mounting the camera.
The space between the camera and the screwheads should be 3mm.
We suggest that you congure the camera before mounting.

D-Link DCS-2132L Specifications

General

Maximum resolution	1280 x 800 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	176 x 144, 320 x 240, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Field of view (FOV) angle	66 °
Sensor type	CMOS
Optical sensor size	1/4 \
Digital zoom	10 x
Optical zoom	- x
Focus adjustment	2.0
Fixed focal length	3.45 mm
Active tampering alarm	No
Video motion detection	Yes
Compatible memory cards	microSD (TransFlash), microSDHC
LED type	IR
Night vision distance	5 m
Type	IP security camera
Certification	CE, CE LVD, FCC, C-Tick
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Box
Product color	White
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	HTTP, FTP, TCP/IP, SMTP, DHCP, PPPoE, DDNS, UPnP, RTP / RTSP/ RTCP, QoS, CoS, IGMP
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3.65 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1329 mm
Pallet height (sea)	1926 mm
Pallet gross weight (air)	255856 g
Pallet gross weight (sea)	372784 g
Quantity per pallet (air)	420 pc(s)
Quantity per pallet (sea)	630 pc(s)
Shipping (inner) case width	324 mm
Shipping (inner) case height	199 mm
Shipping (inner) case length	538 mm
Shipping (inner) case weight	5568 g
Shipping (inner) case net weight	4818 g
Number of cartons per pallet (air)	42 pc(s)
Number of cartons per pallet (sea)	63 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Depth	58 mm
Width	89 mm
Height	127 mm
Weight	116 g
Package depth	160 mm
Package width	152 mm
Package height	102 mm
Package weight	481.8 g
