D-Link DCS-6010L Quick Installation Guide

3
DCS-6010L
ENGLISH

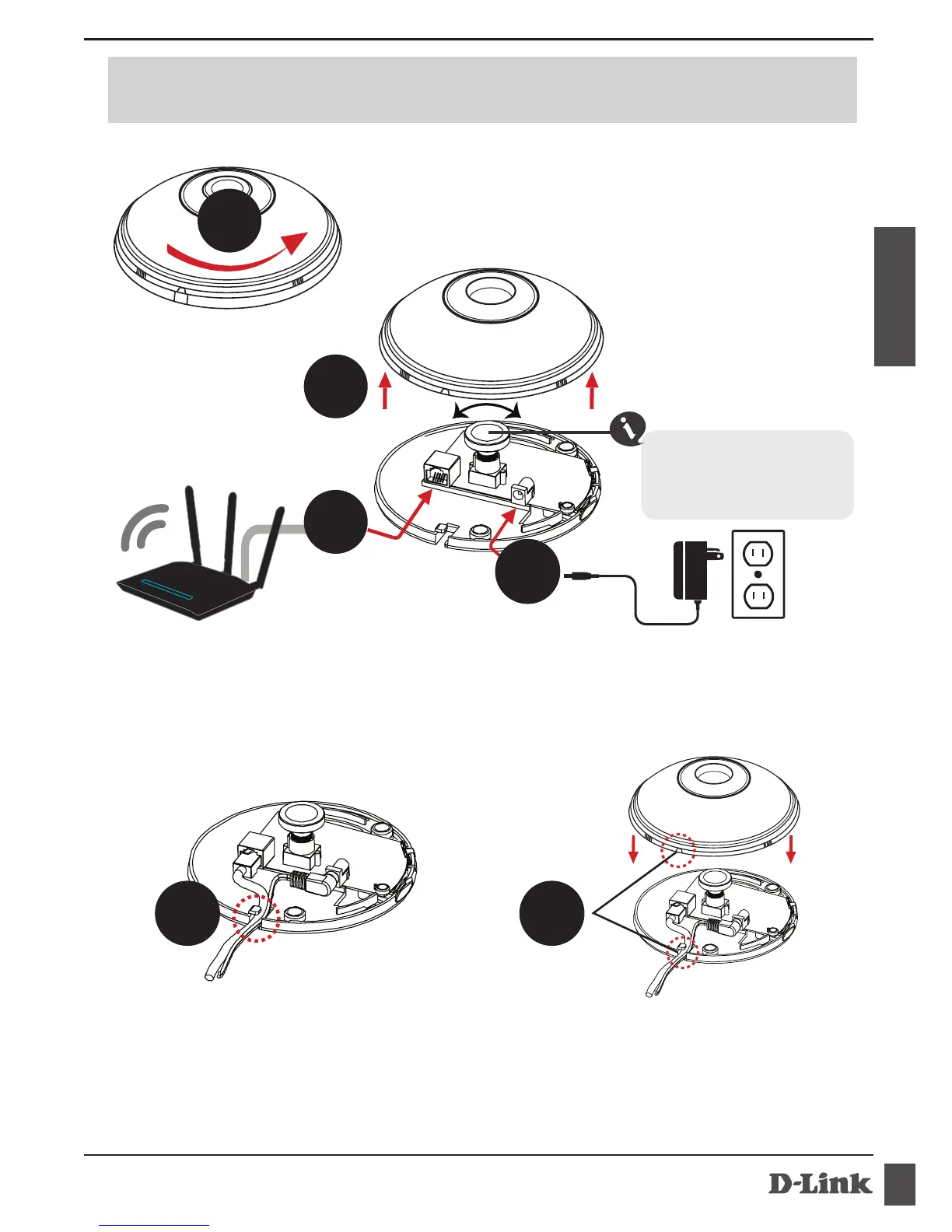

Hardware Installation
1. Rotate top cover counter-clockwise.
2. Lift cover.
1
2
3
4
5 6
3. Using the provided Ethernet cable
connect one end to your camera and
the other-end to your network.
4. Attach the external power
supply to connect it to your
wall outlet or power strip.
5. Ensure the cables are seated
in the cable channel.
6. Seat the cover and rotate to
align the cable channel guide
over the cable channel.
You can adjust the focus
by rotating the lens in
a clockwise or counter
clockwise direction.

D-Link DCS-6010L Specifications

General

Total megapixels	2 MP
Maximum resolution	1600 x 1200 pixels
Supported video modes	-
Video formats supported	H.264, MPEG4
Supported graphics resolutions	800 x 600 (SVGA)
Sensor type	CMOS
Optical sensor size	1/3.2 \
Optical zoom	- x
Zoom capability	Yes
Fixed focal length	1.25 mm
Minimum illumination	2 lx
Form factor	Dome
Mounting type	Ceiling
Product color	White
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	3.9 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Compatible memory cards	SD, SDHC
Cabling technology	10/100Base-T(X)
Networking features	10/100Mbps Fast Ethernet
Certification	CE, CE LVD, FCC, C-Tick
GPS (satellite)	No
Placement supported	Indoor
Connectivity technology	Wireless

Weight and Dimensions

Width	134.2 mm
Height	49.8 mm
Weight	1920 g
