DCS-6010L
6
ENGLISH
The DCS-6010L is suitable for mounting to a ceiling, wall or desktop using
the bracket provided. Please refer to the steps below to assist you with
mounting the camera.
Note: We suggest that you congure the camera before mounting.

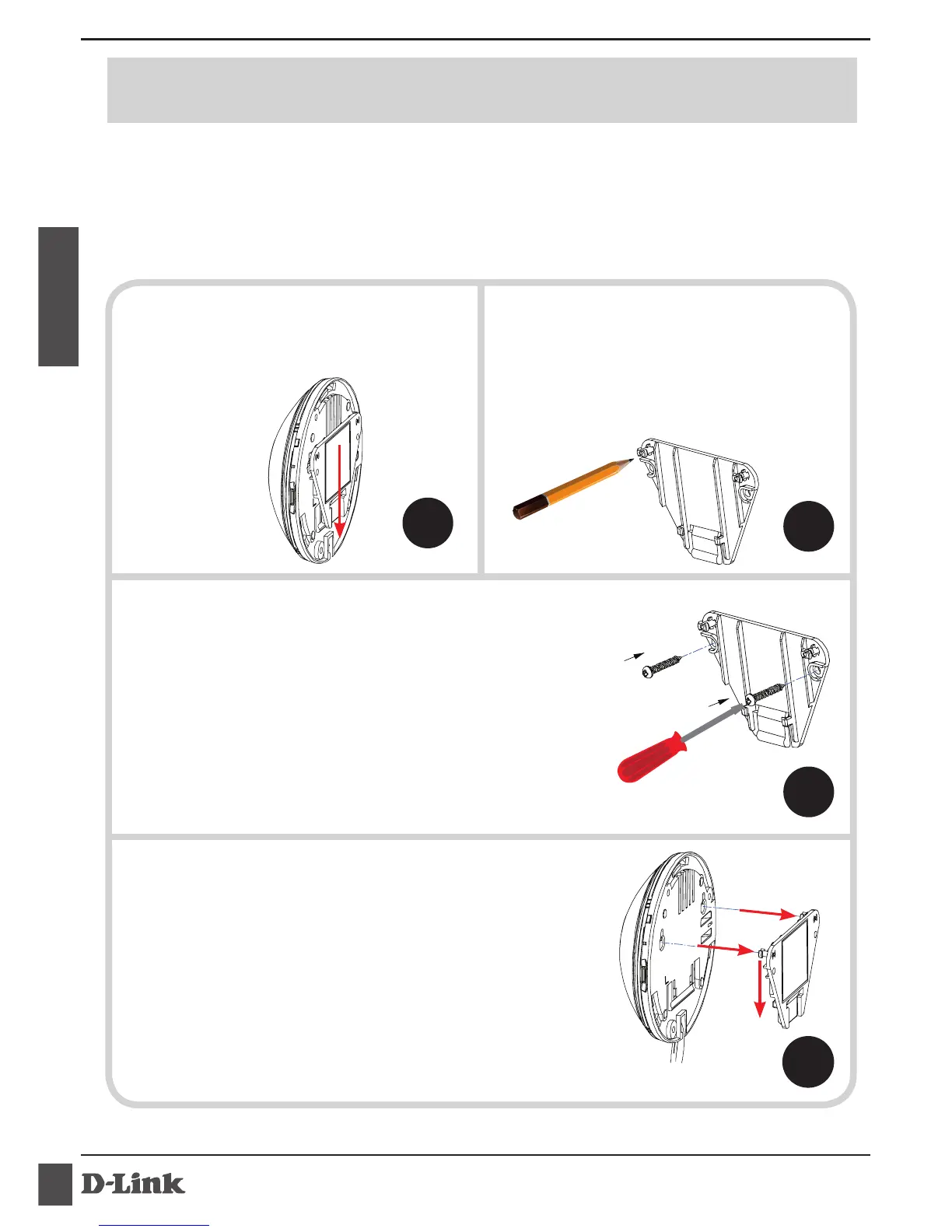

Mount the Camera
Position the mounting bracket in
the desired location and mark the
surface behind it holes using the
bracket as a stencil / in pencil.
Depending on the material of the wall or ceiling,
use proper tools to drill two holes or screws
where you marked. If the wall is made out of
concrete, drill the holes approximately 25mm
deep rst, then insert the plastic anchors to
support the screws. Then ax bracket using the
screws provided.
Place the camera over the screw that is on the
bracket. Make sure to t the screw-heads over
the big holes and slide it downward to lock
rmly. Lightly pull the base forward to make
sure that it is locked. Note: if mounting on a wall
ensure the camera is oriented with the cables
positioned to the bottom of the device.
Unclip the wall bracket from the
DCS-6010L by sliding the base
down.
2
3
1
4
1
2
