D-Link DCS-8000LH Quick Installation Guide

DCS-8000LH
4
ENGLISH
MOUNTING THE CAMERA
Please refer to the steps below to assist you with mounting the camera. It is recommended that you
congure the camera before mounting.
2
3
1
4
5
6

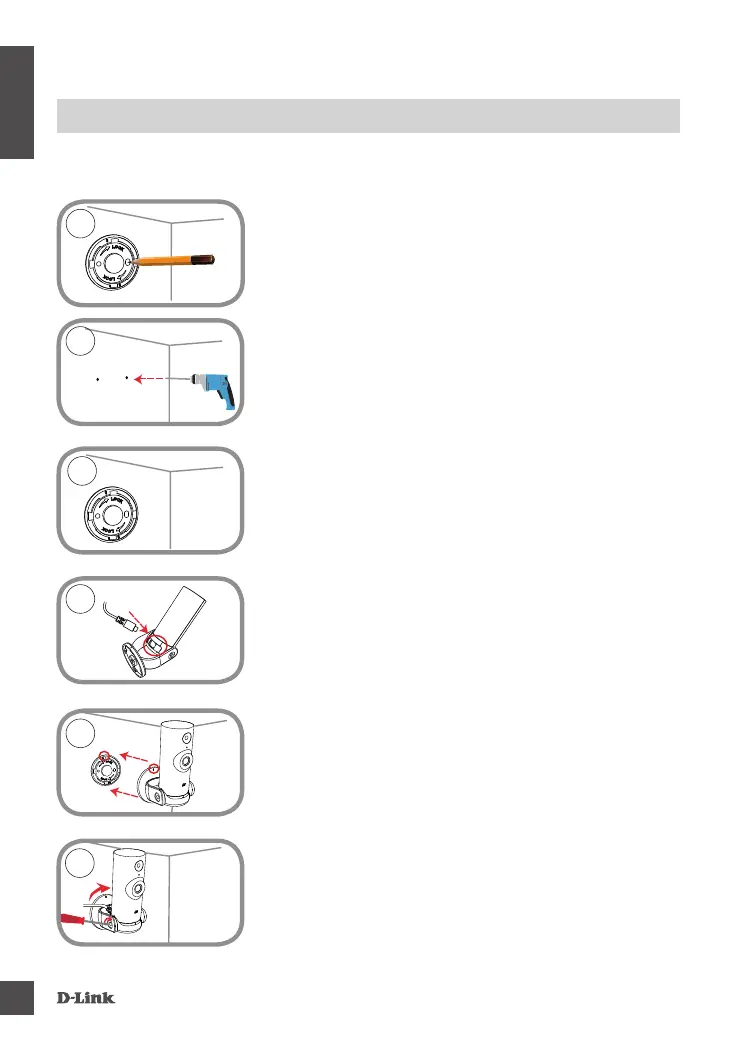

Step 1:
Place the camera base where you want to position the camera
and use a pencil to mark the holes. Make sure they are aligned
and be careful not to move the base when marking the second
hole.
Step 2:
Depending on the material of the wall or ceiling, use proper tools
to drill two holes 25mm deep with a 6mm drill bit where you
marked. If the wall is made out of concrete, drill the holes rst,
then insert the plastic anchors to support the screws.
Step 3:
Place the baseplate over the holes that are in the wall. Make
sure to align the baseplate holes with the holes in the wall. Use
the supplied screws to attach the baseplate to the surface of the
wall.
Step 4:
Place the camera into the mount. Make sure that the power port
in the back is exposed to the hole in the mount. Plug the USB
power cable into the camera. Make sure it is plugged in all the
way.
Step 5:
Align the slash marking on the base to the same slash marking
on the camera base. Press camera mount onto the base.
Step 6:
Twist the camera mount slightly clockwise to the right to lock
it into place. Using a coin or athead screwdriver, tighten the
screw on the left side of the camera mount to lock the camera
angle into place.

D-Link DCS-8000LH Specifications

General

Type	IP security camera
Certification	CE, CE LVD, ICES, FCC
Placement supported	Indoor
Connectivity technology	Wireless
Infrared (IR) cut-off filter	Yes
Sensor type	CMOS
Effective sensor resolution	1000000 pixels
Digital zoom	4 x
Fixed focal length	2.45 mm
Maximum aperture number	2.4
Closest focusing distance	0.5 m
Audio formats supported	PCM
Minimum illumination	- lx
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264
Image quality adjustment	Brightness
Security algorithms	WPA, WPA2
Alert notification type	Snapshot alert message, Text alert message
Ethernet LAN	No
Frequency band	2.4 GHz
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Supported network protocols	IPv4, ARP, TCP, UDP, ICMP, NTP client (D-Link), DNS client, RTP/RTSP/RTCP, Bonjour
Mobile operating systems supported	Android, iOS
AC input voltage	100 - 20 V
DC output current	1 A
DC output voltage	5
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (max)	4 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Number of cameras	1
Form factor	-
Mounting type	Desk
Product color	White
LED type	IR
Night vision distance	5 m
Interface	WLAN

Weight and Dimensions

Depth	35 mm
Width	38 mm
Height	92 mm
Weight	57.7 g
