D-Link DCS-820L Quick Install Guide

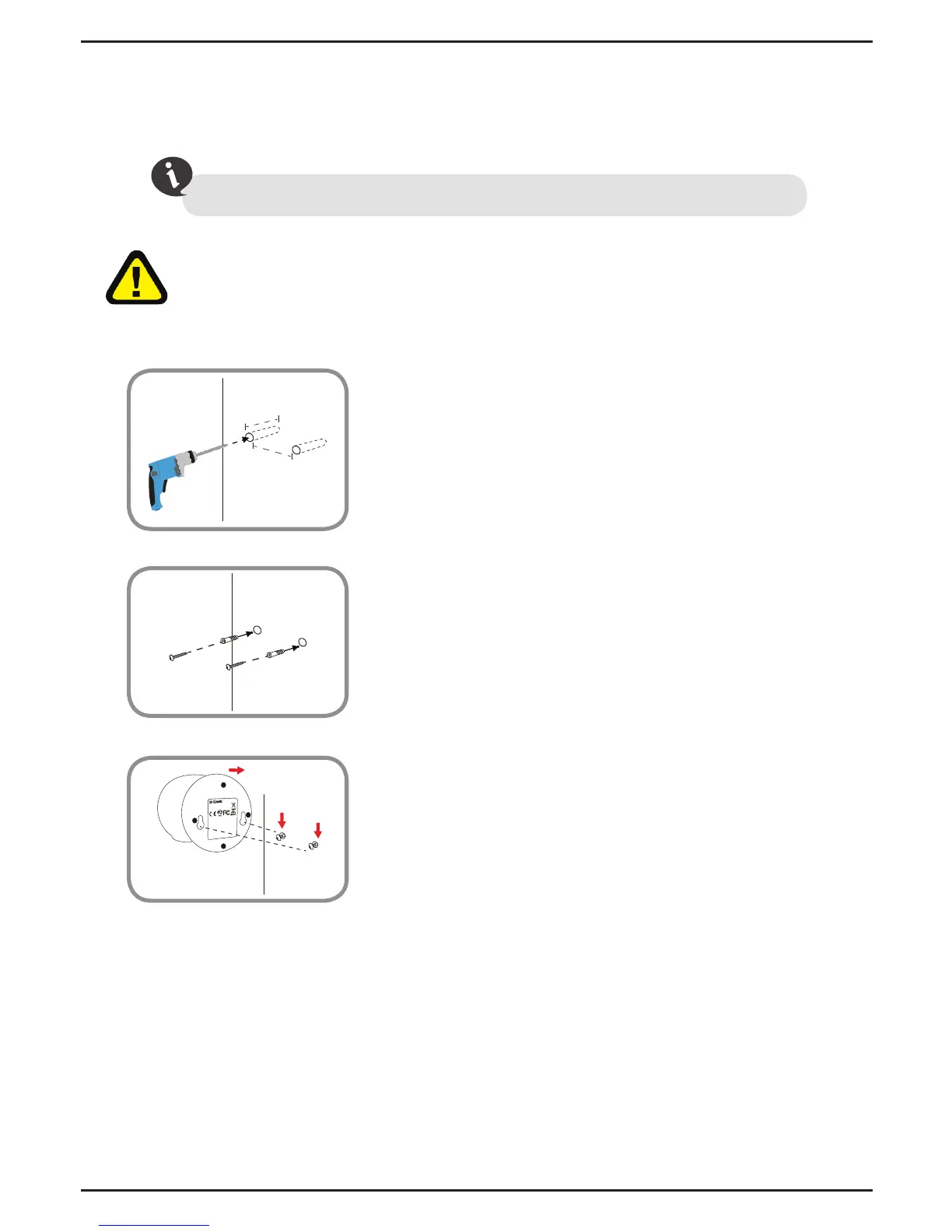

Mount the Camera
Please refer to the steps below to assist you with mounting the camera.
We suggest that you congure the camera before mounting.
Warning: Indoor use only. Do not mount in a location where it may
be in contact with water as it may damage the product and/or cause
injury.
Use a 6mm drill bit to drill two holes 43mm
apart, and at least 30mm deep. Then use a mallet
o insert the wall anchors into the holes.
crew the included screws into the wall anchors.
43mm
30mm
Place the mounting holes on the base of the
camera over the screws as shown, then slide the
amera down to mount the camera.
FCC ID: KA2CS825LA1
IC: 4216A-CS825LA1
CAN ICES-3 (B)/NMB-3(B)
Model: DCS-820LA1
DCS-8 20L
7

D-Link DCS-820L Specifications

General

Certification	CE, CE LVD, FCC, C-Tick
Maximum range	5 m
Motion sensor	Yes
Smartphone support	-
Compatible products	iPhone, iPad
Number of lullabies	5
Video compression formats	H.264
Mobile operating systems supported	Android 4.1, Android 4.2, Android 4.3, Android 4.4, iOS 6.0
Product color	White
Compatible memory cards	MicroSD (TransFlash)
Sensor type	CMOS
Fixed aperture	2 mm
Video resolutions	320 x 240, 640 x 480 pixels
Fixed focal length	2.5 mm
Optical sensor size	1/5 \
Minimum illumination	0 lx
Interface	Wi-Fi
Wi-Fi standards	Wi-Fi 4 (802.11n)
Depth	86 mm
Width	92 mm
Height	120 mm
Power supply	5.1 W
Dimensions (WxDxH)	92 x 86 x 120 mm
Maximum number of cameras supported	1
AC input voltage	5 V
Power source type	DC, USB
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
