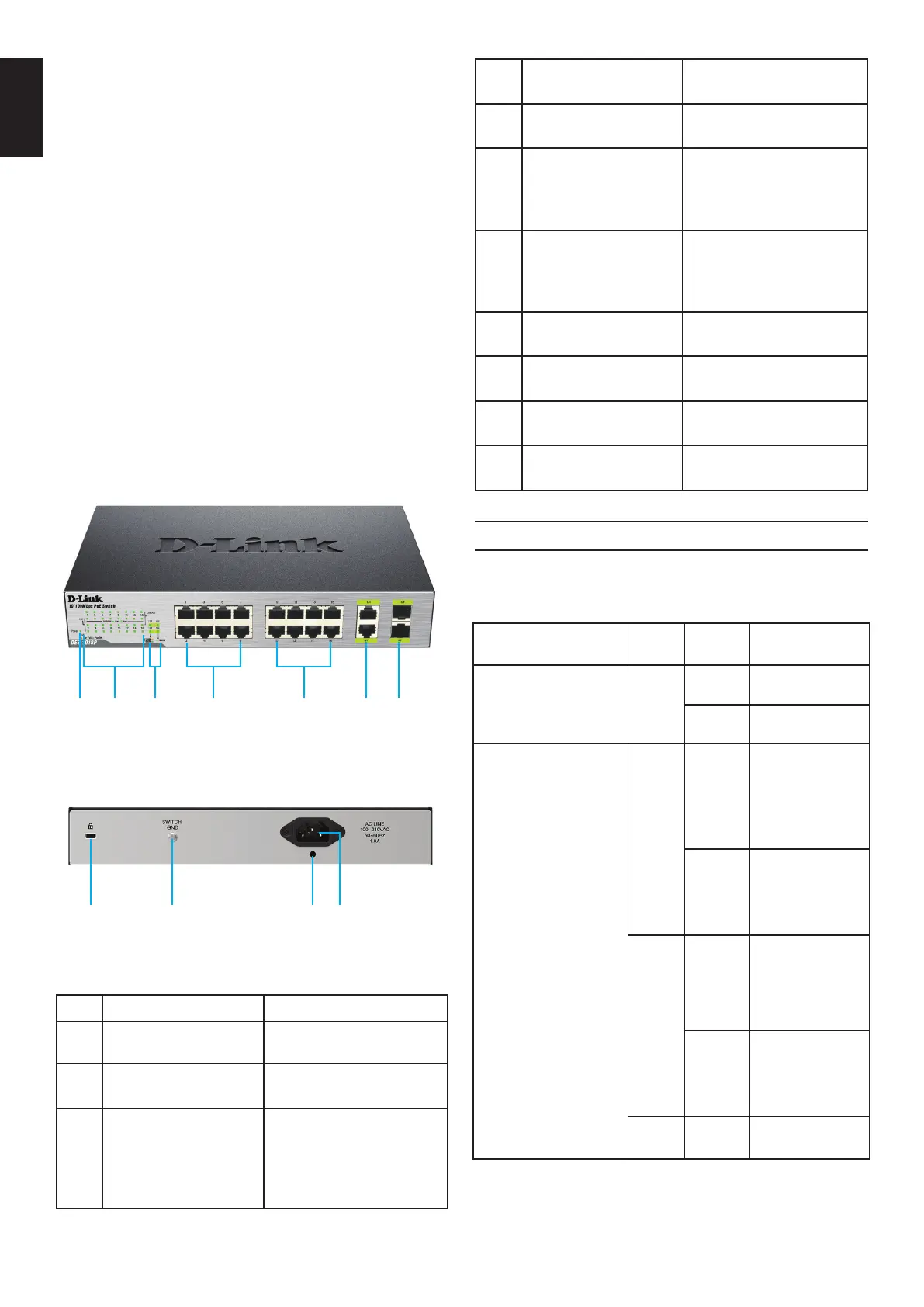

Page #2 background imageLoading...
Page #2 background image
2
ENGLISH
D PoE ports (1-8)
These ports support
Power over Ethernet
E
10/100 Mbps Ports
(9-16)
Connect to Ethernet
devices
F
Gigabit LAN RJ-45
ports
Connect to uplink
Ethernet devices such
as computers, switches,
and hubs
G
Gigabit LAN SFP
ports
Connect to uplink
Ethernet devices such
as computers, switches,
and hubs
H Kensington Input
Insert a Kensington lock
to secure the hardware
I Ground Input
Connect a wire to ground
the Switch
J
Power Cord Retainer
Input
Connects to the power
cord retainer
K Power Cord Input
Connects to the power
cord
Status LEDs and Ethernet Port LEDs
The following table lists the name, color, status,
and description of each device LED.
LED Color Status Description
Power Green
Solid
light
Power on
Off Power off
Link/Act/Speed
10/100/1000BASE-T/
SFP Ports
(Ports 17 to 18)
Green
Solid
light
Secure
connection to
a 1000 Mbps
Ethernet device
is established.
Blinking
The port is
receiving or
transmitting
data.
Amber
Solid
light
Secure
connection
to a 10/100
Mbps Ethernet
device.
Blinking
The port is
receiving or
transmitting
data.
Off Off No link
About This Guide
This guide gives step-by-step instructions for
setting up your D-Link DES-1018P. Please
note that the model you have purchased may
appear slightly different from those shown in
the illustrations.
The D-Link DES-1018P is an unmanaged switch
capable of feeding power to Power over Ethernet
(PoE) devices such as network cameras. The
DES-1018P has 16 ports operating at 10/100
Mbps ports with 8 PoE ports (Ports 1 to 8). It
also has 2 10/100/1000BASE-T/SFP Combo
ports ideal for upgrading home and small ofce
networks with limited budgets.
Product Overview
Figure 1. Front Panel
Figure 2. Rear Panel
Item Part Description
A Power LED
Indicates if the Switch is
powered on
B Link/Act & PoE LEDs
Indicates link/activity
and PoE power statuses
C
Gigabit LAN SFP
LEDs
Indicates link/activity/
speed for uplink
Ethernet devices such
as computers, switches,
and hubs
A B C D E F G
H I J K
