To establish the rule for a previously created CPU Access Profile:
In the CPU interface folder, click the CPU Interface Filtering State link to open the CPU Interface
Filtering Table.

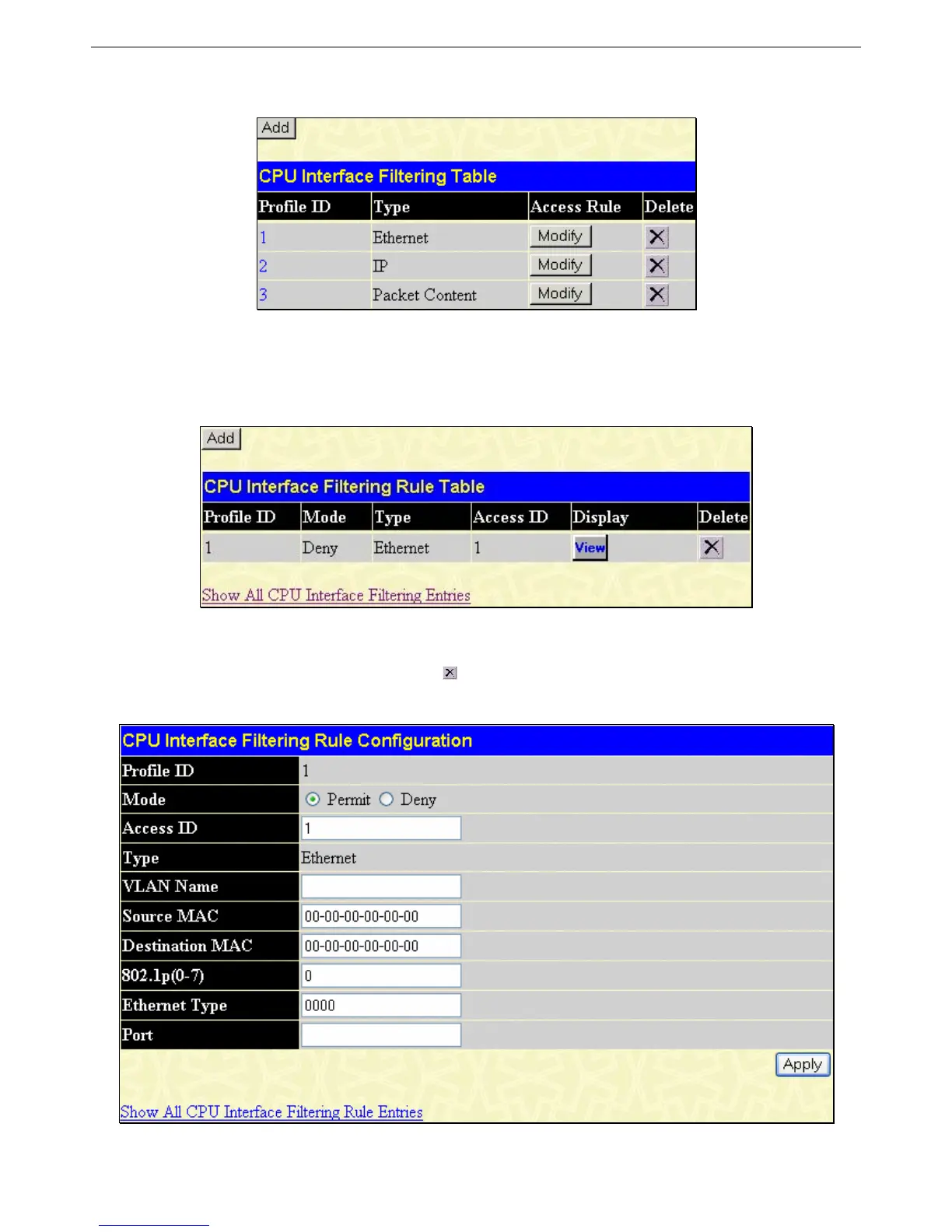

Figure 9- 6. CPU Interface Filtering Table
In this window, the user may add a rule to a previously created CPU access profile by clicking the
corresponding Modify button of the entry to configure, Ethernet, IP and Packet Content. Each entry will
open a new and unique window, as shown in the examples below.
Figure 9- 7. CPU Interface Filtering Table – Ethernet
To create a new rule set for an access profile click the Add button. A new window is displayed. To remove a
previously created rule, click the corresponding button. The following window is used for the Ethernet
Rule configuration.
Figure 9- 8. CPU Interface Filtering Rule Configuration – Ethernet
