DES-3326S Layer 3 Fast Ethernet Switch User’s Guide
240 Web-Based Switch Management

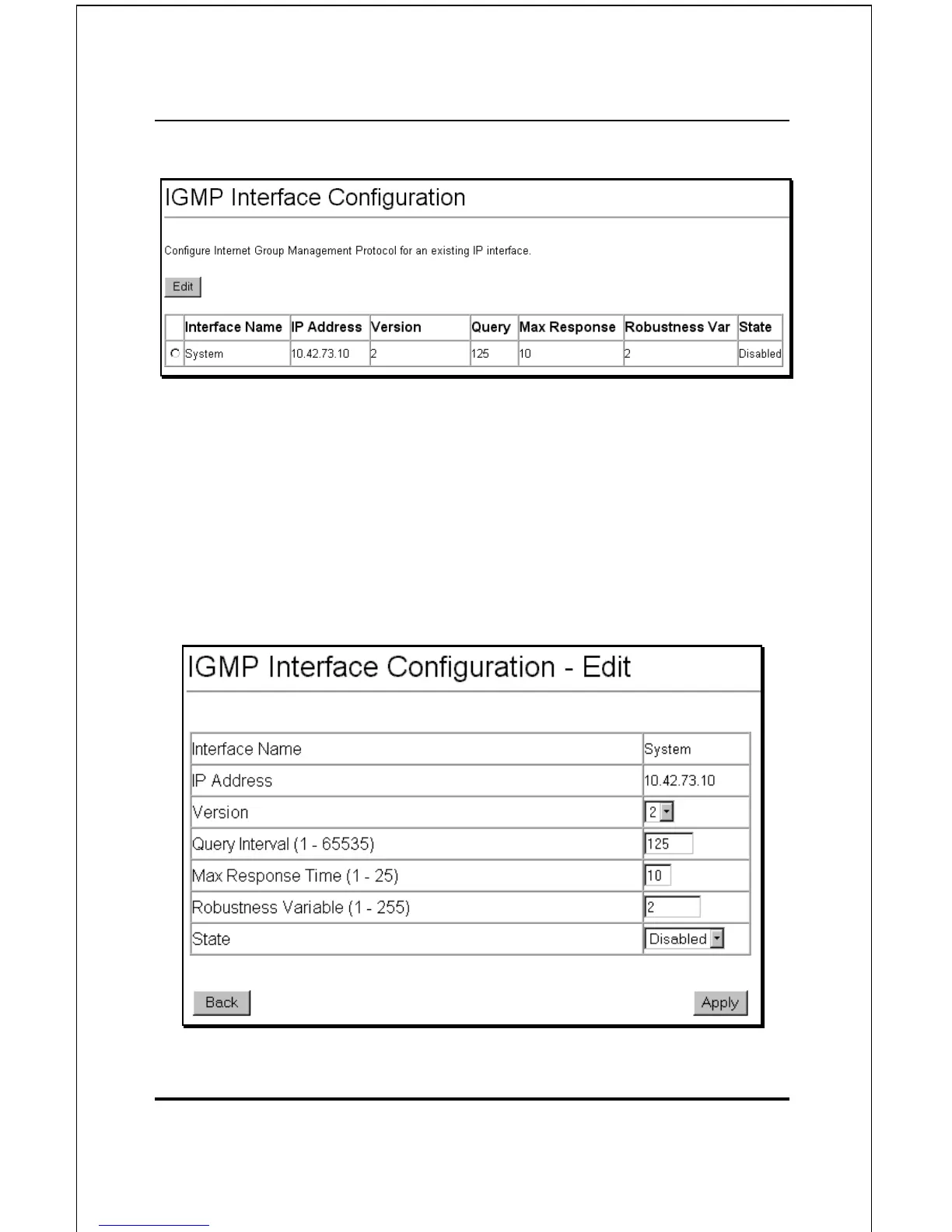

Figure 6-46. IGMP Interface Setup
The Internet Group Multicasting Protocol (IGMP) can be
configured on the switch on a per-IP interface basis. Each IP
interface configured on the switch is displayed in the above
IGMP Interface Configuration dialog box. To configure IGMP
for a particular interface, click the corresponding click-box for
that IP interface and click the Edit button. This will open the
following dialog box:
Figure 6-47. IGMP Interface Configuration − Edit
