DES-3326S Layer 3 Fast Ethernet Switch User’s Guide
Web-Based Switch Management 263

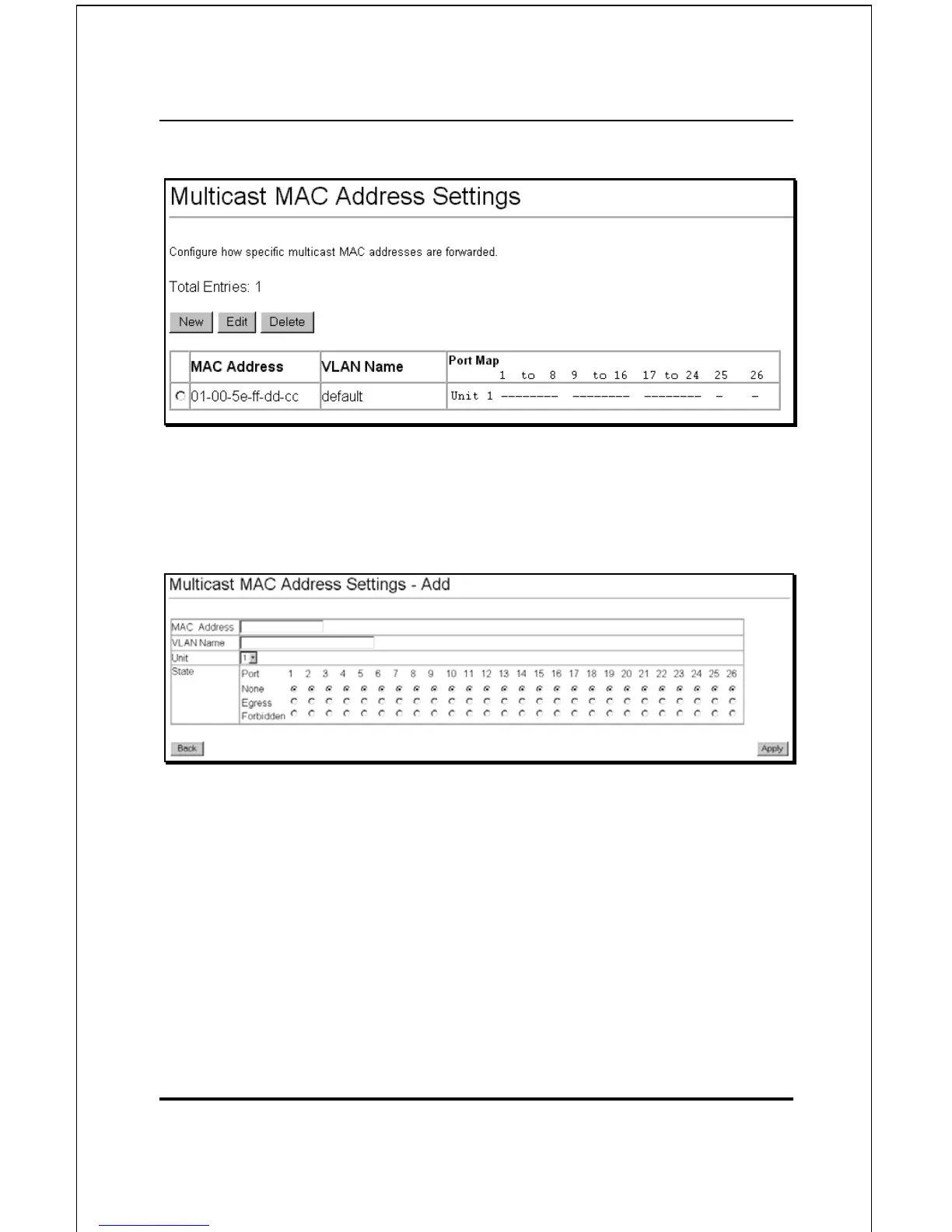

Figure 6-65. Multicast MAC Address Settings
To add a new multicast MAC address to the switch’s
forwarding table, click the New button:
Figure 6-66. Multicast MAC Address Settings − Add
To edit an existing entry to the switch’s forwarding table,
click the entry’s corresponding click-box and then click
the edit button:
