D-Link DFL-800

4  D-Link NetDefend Firewall
ENGLISH
Browser Version
Microsoft Internet
Explorer
6.0 or higher
Mozilla Firefox 1.0 or higher
Netscape Navigator 8.0 or higher
Table 4. Browser Compatibility
Connecting the Device to a Network
This section provides basic information about
physically connecting the rewall to a network.
The example here is using DFL-800 or DFL-860
to connect the necessary cables as shown in
Figure 5.
Connect an RJ-45 cable from the port 1.
labeled WAN1 to the external router. The port
WAN1 is pre-allocated to the WAN1 network
segment.
Connect an RJ-45 cable from the port labeled 2.
DMZ to a switch in the DMZ network segment.
Connect an RJ-45 cable from the LAN port 3.
labeled 1 to a switch in the LAN network
segment.
Connect an RS-232 cable from the console 4.
port for CLI (Command Line Interface)
management access.

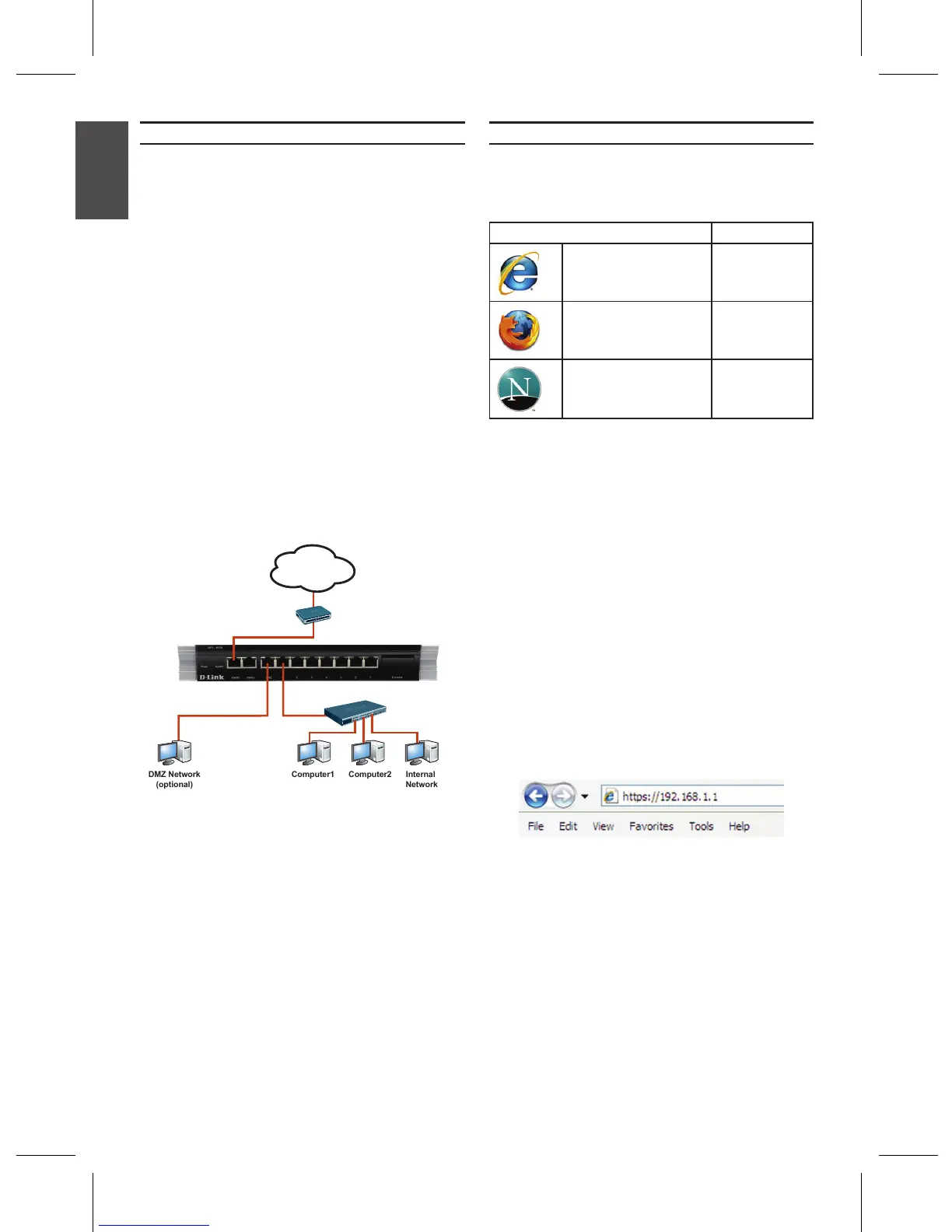

Figure 5. Basic Cabling Example
Initial Conguration
The NetDefendOS software is pre-installed on
the DFL-800/DFL-860 device. When the device
is powered on, it is ready to be congured. While
the device has a default factory conguration
that allows you to initially connect to the device,
you must perform further conguration for your
specic network requirements.
Using the WebUI
To use the WebUI, the workstation from which
you are managing the device must initially be on
the same subnetwork as the device.
Note: DFL-800/DFL-860 allows either HTTP
or a secure HTTPS connections from any
management host. However, for security reasons,
only a secure HTTPS connection is allowed by
default. For more information about conguring
connections settings, please refer to the Firewall
User Manual.
To access the device with the WebUI:
Connect your workstation on the LAN port 1.
labeled 1.
Ensure your workstation is congured with a 2.
static IP address in the 192.168.1.0/24 subnet.
Note: Disable pop-up blocking software
or add the management IP address
https://192.168.1.1 to your pop-up blocker’s
allow list.
Launch your browser; enter the IP address for 3.
the LAN1 interface, then press Enter.
(The factory default IP address is
https://192.168.1.1)
WAN1
Cable/DSL Modem
Computer2Computer1 Internal
Network
Switch
LAN1
DMZ Network
(optional)
DMZ
Internet
Figure 6. Browser Address
