Note: The Language drop-down menu allows
you to select a language for the WebUI. By
factory default, NetDefend Firewall only includes
English. You may upload specic language les
via the WebUI for additional language support. At
the moment, the Japanese, Russian, Simplied
Chinese and Traditional Chinese language les
are available.
To establish a console connection:
Plug the female end of the supplied RS-232 1.
cable directly to the console port on the
Firewall, and tighten the captive retaining
screws.
Connect the other end of the cable to a 2.
terminal or to the serial connector of a
computer running terminal emulation software.
Use the following settings for terminal
emulation software:
Baud rate: 9600
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
Once you have correctly set up the terminal, 3.
power on your device. A boot sequence will
appear on the terminal screen.
Once the boot sequence completes, the 4.
command prompt is displayed, the device is
ready to be congured.
Using a Console Connection (RS-232 DCE)
The NetDefend Firewall provides a RS-232 serial
port that supports a connection to a computer or
console terminal for monitoring and conguring
the device. This port uses a male DB-9 connector,
implemented as a data communication terminal
equipment (DCE) connection.
To use the console port connection, you need the
following equipment:
A terminal or a computer with both a serial 1.
port and the ability to emulate a terminal.
A RS-232 cable with female DB-9 connector. 2.
(included in the package)
If your Laptop or PC doesn’t have a RS-232 3.
connector, an adapter is required.
Note: DFL-800/DFL-860 does not come with a
RS-232 adapter.
After initial setup, please refer to the companion
publications found in PDF format on the
accompanying master CD for detailed instructions
on conguring the DFL-800/DFL-860.
D-Link NetDefend Firewall User Manual
This document describes the general operation
and control of the NetDefendOS rmware,
D-Link’s proprietary operating system that drives
and controls the NetDefend rewall. The User
Manual includes detailed instructions regarding
typical administrative tasks.
D-Link NetDefend Firewall Log Reference
Guide
This document describes all log messages that
might be generated by the NetDefendOS.
D-Link NetDefend Firewall CLI Reference
Guide
This document describes all available text-based
commands that can be used with the RS-232
Console or SSH interface to congure the rewall.
Finalizing the Conguration

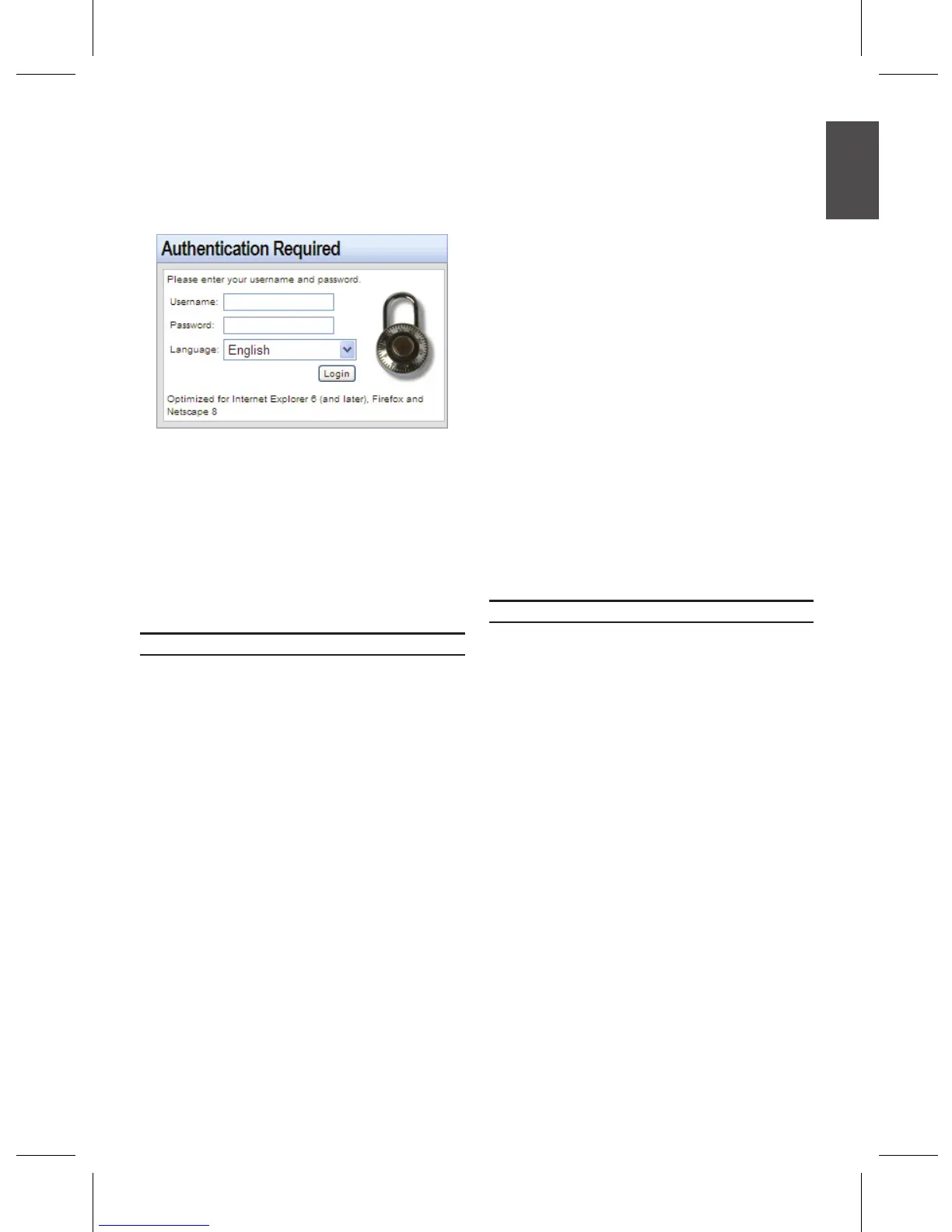

Figure 7. Authentication Message
Log into the NetDefend Firewall web interface.4.
The default login information is:
Username: admin
Password: admin
