D-Link DGS-1008P Installation Guide

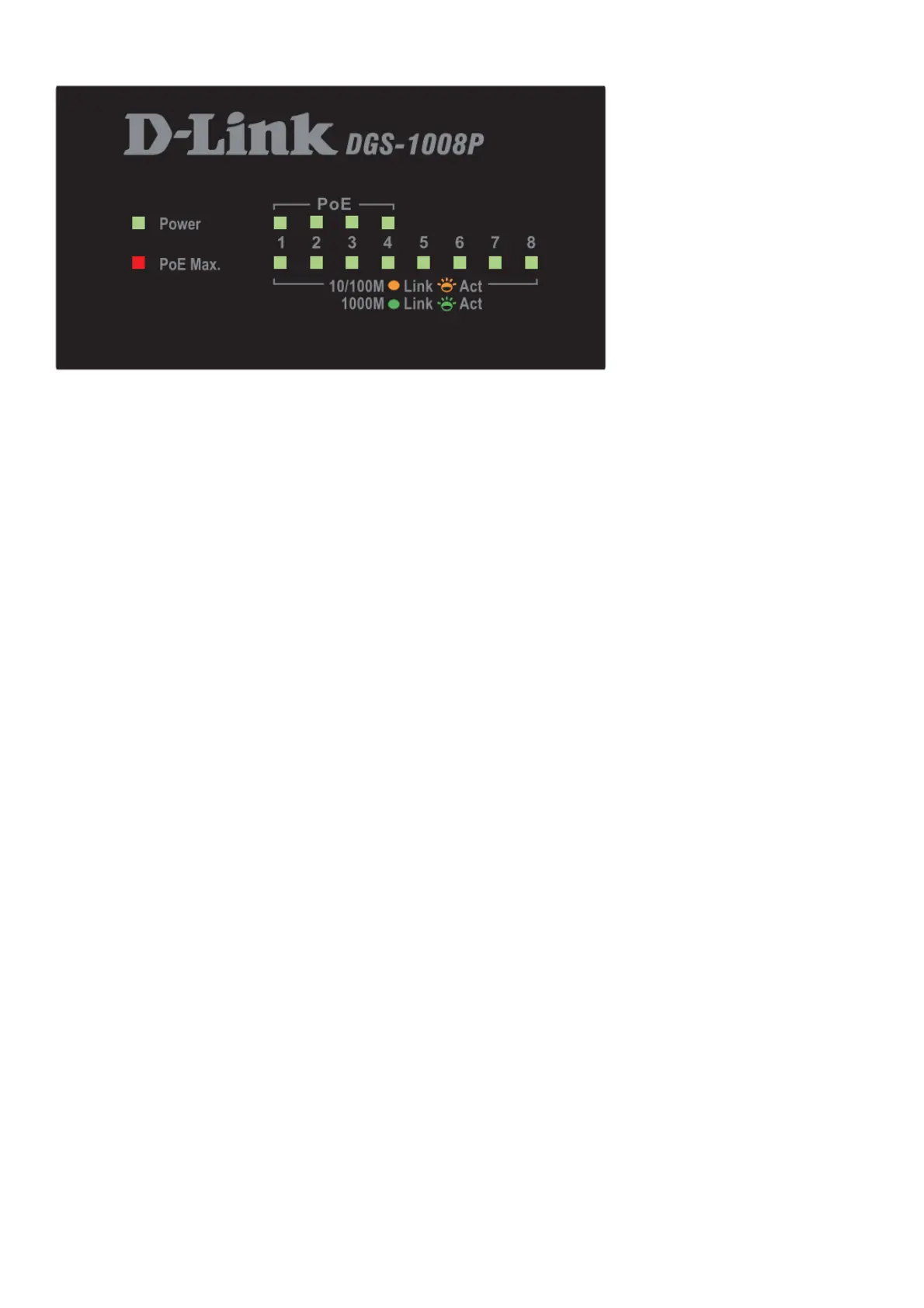

LED INDICATORS
The LED indicators allow you to
monitor, diagnose, and troubleshoot any potential problem within the switch, connection, or attached devices.
LED Color Status Description
Power Green
Solid light Power on
Off Power off
Link/Act/Speed
Green
Solid light Connection to a 1000 Mbps Ethernet device.
Blinking The port is receiving or transmitting data.
Amber
Solid light Connection to a 10/100 Mbps Ethernet device.
Blinking The port is receiving or transmitting data.
Off Light off No link
PoE ( Portal to 4 )
Green
Solid light
The port is successfully connected to a PoE device and is
powering the device properly.
Off No connection to a PoE device
Red Solid Light
Overload or short circuit is detected on port output lines. Port
power is not activated
PoE Max.
Red
Solid light Total power consumption is above 73W.
Blinking
Output power to PoE devices has exceeded the maximum
power budget (80W).
Off Light off Total power consumption is below Power Guard Band (73W).
TROUBLESHOOTING
SETUP AND CONFIGURATION PROBLEMS
1. WHAT SHOULD I DO IF THE POWER LED DOES NOT LIGHT UP?
– Check if the power adapter is connected properly to the outlet or surge protector and the back of the device.
2. WHAT SHOULD I DO IF A CONNECTED DEVICE IS NOT DETECTED?
– Ensure the Port LED is illuminated or flashing. If not, try using a new Ethernet cable.
3. WHAT SHOULD I DO IF A POE DEVICE IS NOT POWERED BY THE DGS-1008P?
– Ensure that the PoE device is connected to one of the four PoE-enabled ports (1 to 4) and the connected PoE devices
do not exceed the maximum power budget of 80 W.
NOTES
Technical Support
Have trouble installing your new product? D-Link’s website contains the latest user documentation and software updates for

D-Link DGS-1008P Specifications

General

MAC address table	8000 entries
Store-and-forward	Yes
Packet buffer memory	0.256 MB
Packet forwarding rate (1 Gbps)	14880 pps
Packet forwarding rate (10 Mbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
10G support	No
Networking standards	IEEE 802.3, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Switch type	Unmanaged
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Product color	Black
Rack mounting	-
LED indicators	Activity, Link, PoE, Power, Speed, Status
Total Power over Ethernet (PoE) budget	68 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Input current	1.5 A
Noise level	0 dB

Weight and Dimensions

Depth	120 mm
Width	190 mm
Height	38 mm
