Section 1 - Product Overview

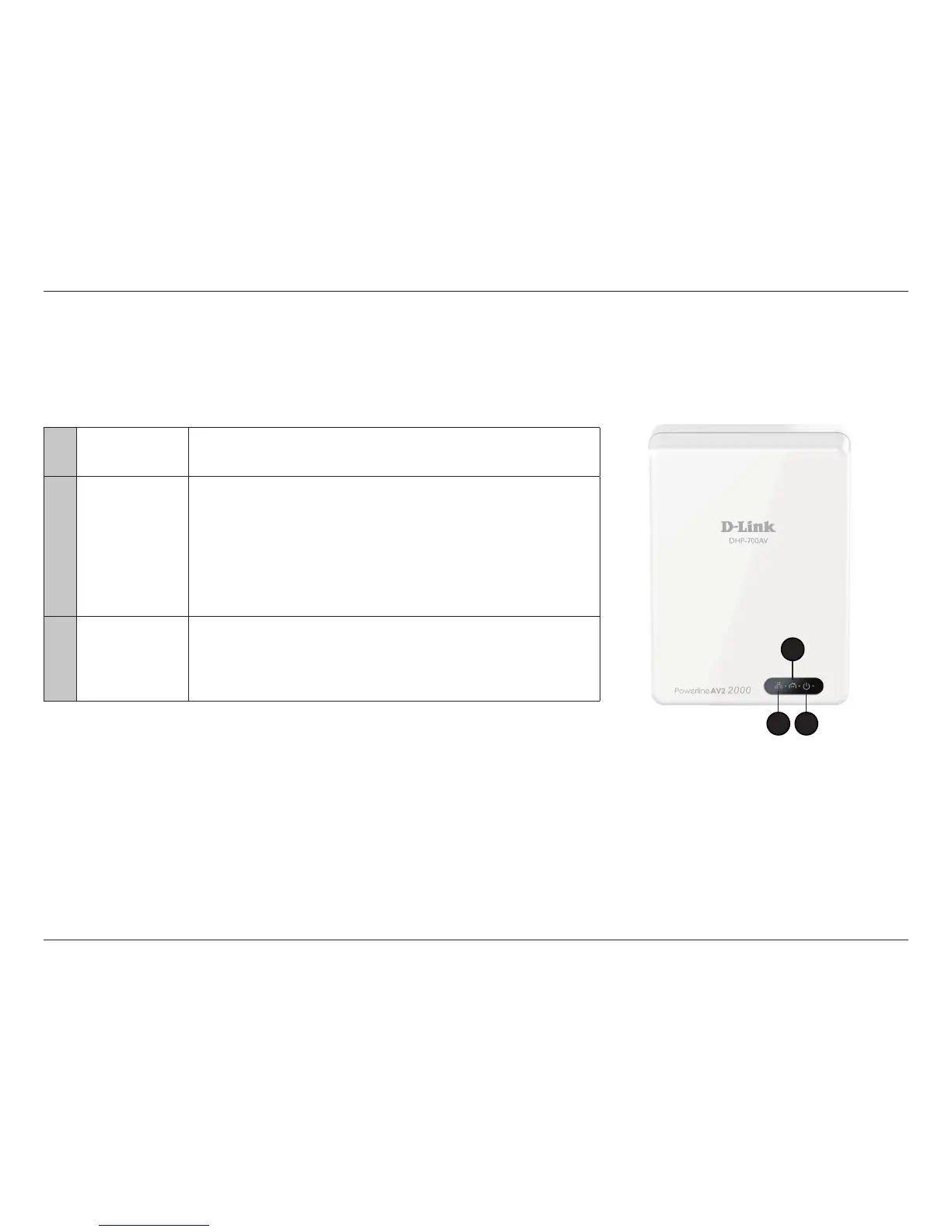

Hardware Overview
LEDs
1 Ethernet LED
• Solid Green: The Ethernet port is linked.
• O: There is no Ethernet connection.
2 PowerLine LED
• Solid: The device is connected to a PowerLine network.
• O: The device has not found any other compatible Powerline
devices using the same encryption key.
The color indicates the PowerLine link rate:
• Green: The PowerLine link rate is best.
• Amber: The PowerLine link rate is better.
• Red: The PowerLine link rate is good.
3 Power LED
• Solid: The device is receiving electrical power.
• Blinking: The Simple Connect button was pressed or is in Power
Saving Mode.
• O: The device is not receiving electrical power.
1
2
3
