D-Link DI-624 User Manual

52
Networking Basics

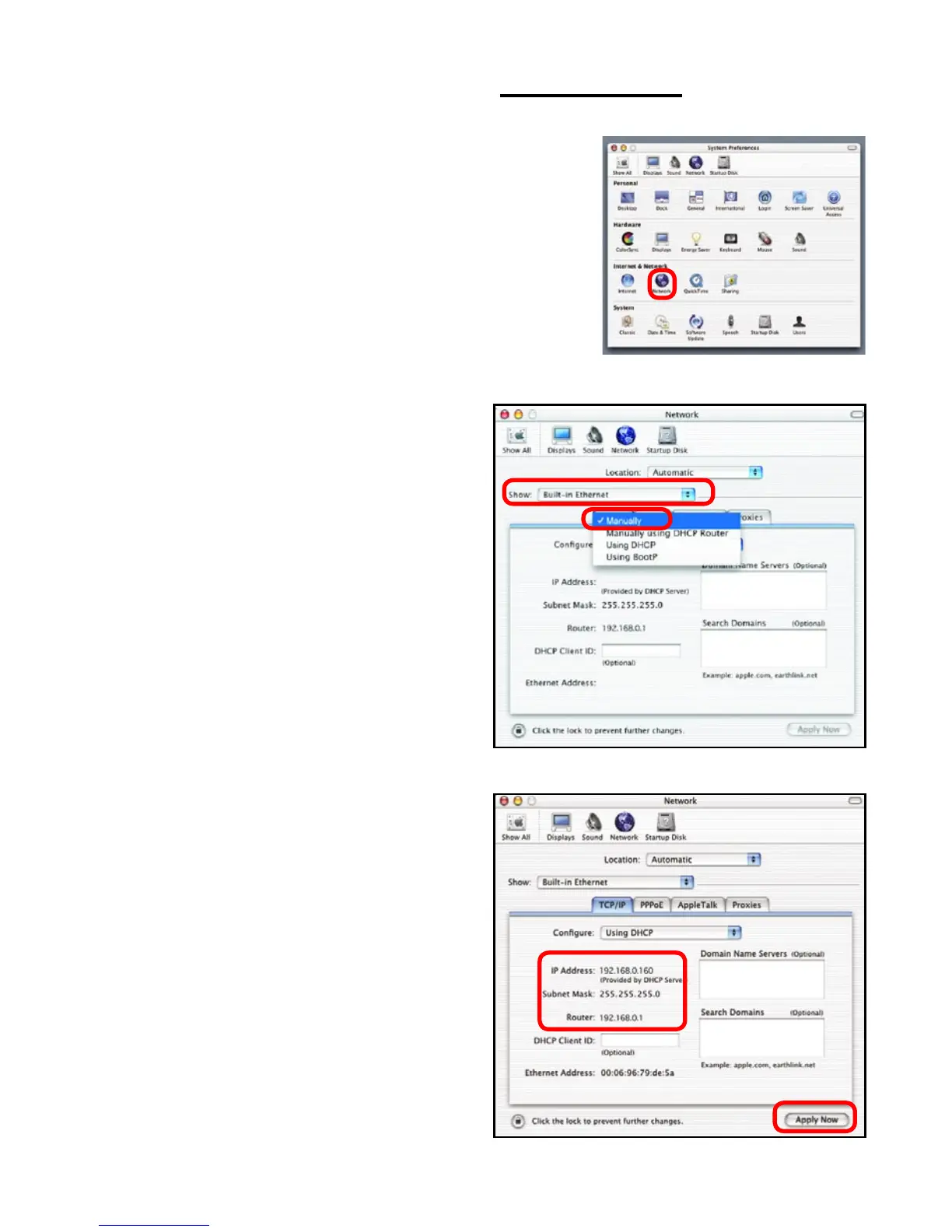

Assigning a Static IP Address with Macintosh OSX






Go to the Apple Menu and select
System Preferences
cClick on Network
Select Built-in Ethernet in the
Show pull-down menu
Select Manually in the Con-
figure pull-down menu
Input the Static IP Address,
the Subnet Mask and the
Router IP Address in the
appropriate fields
Click Apply Now

D-Link DI-624 Specifications

General

Wireless Standard	802.11g
Frequency Band	2.4 GHz
Wireless Data Rates	Up to 54 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Security	WEP, WPA, WPA2
Firewall	SPI
VPN Pass-through	IPSec/PPTP
