79
Networking Basics
Assigning a Static IP Address
in Windows XP/2000
n
The DNS server information will be supplied by your ISP (Internet Service Provider.)
n
Click OK
n
n
n
Enter the LAN IP address of
the Wireless Router. (D-Link
wireless routers have a LAN IP
address of 192.168.0.1)
Enter the LAN IP address of
the Wireless Router. (D-Link
wireless routers have a LAN IP
address of 192.168.0.1)
192 168 0 1
192 168 0 1

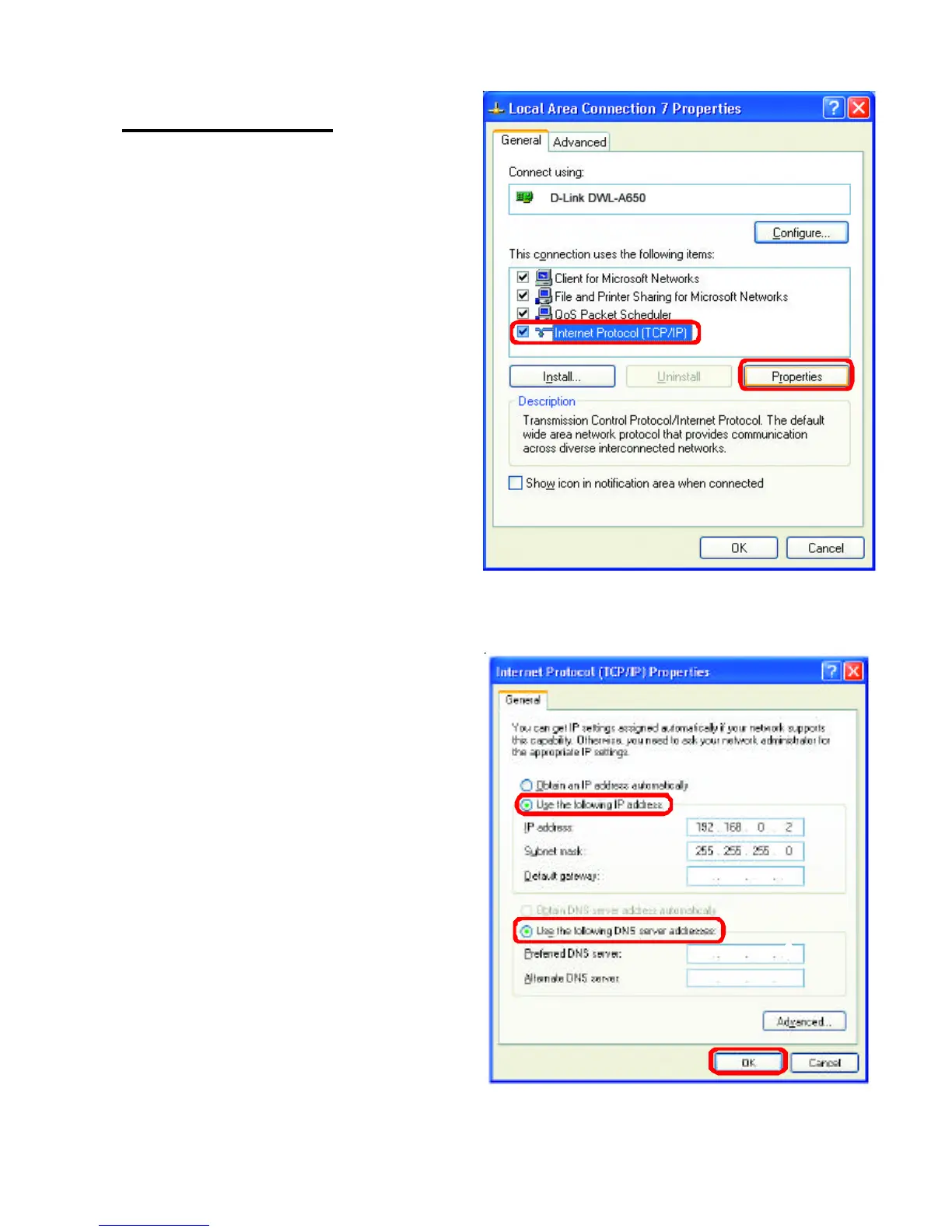

In the window below, input your IP
address, subnet mask, default
gateway and DNS server address.
(The IP Addresses on your network
must be within the same range. For
example, if one computer has an IP
Address of 192.168.0.2, the other
computers should have IP Addresses
that are sequential, like 192.168.0.3
and 192.168.0.4. The subnet mask
must be the same for all the computers
on the network.)
Select Use the following DNS
server addresses.
IP Address:
e.g., 192.168.0.2
Subnet Mask:
255.255.255.0
Click on Internet Protocol (TCP/IP)
Click Properties
To Next Page
