D-Link DKVM-4U User Manual

3
Installing the DKVM-4U(continued)
Type A

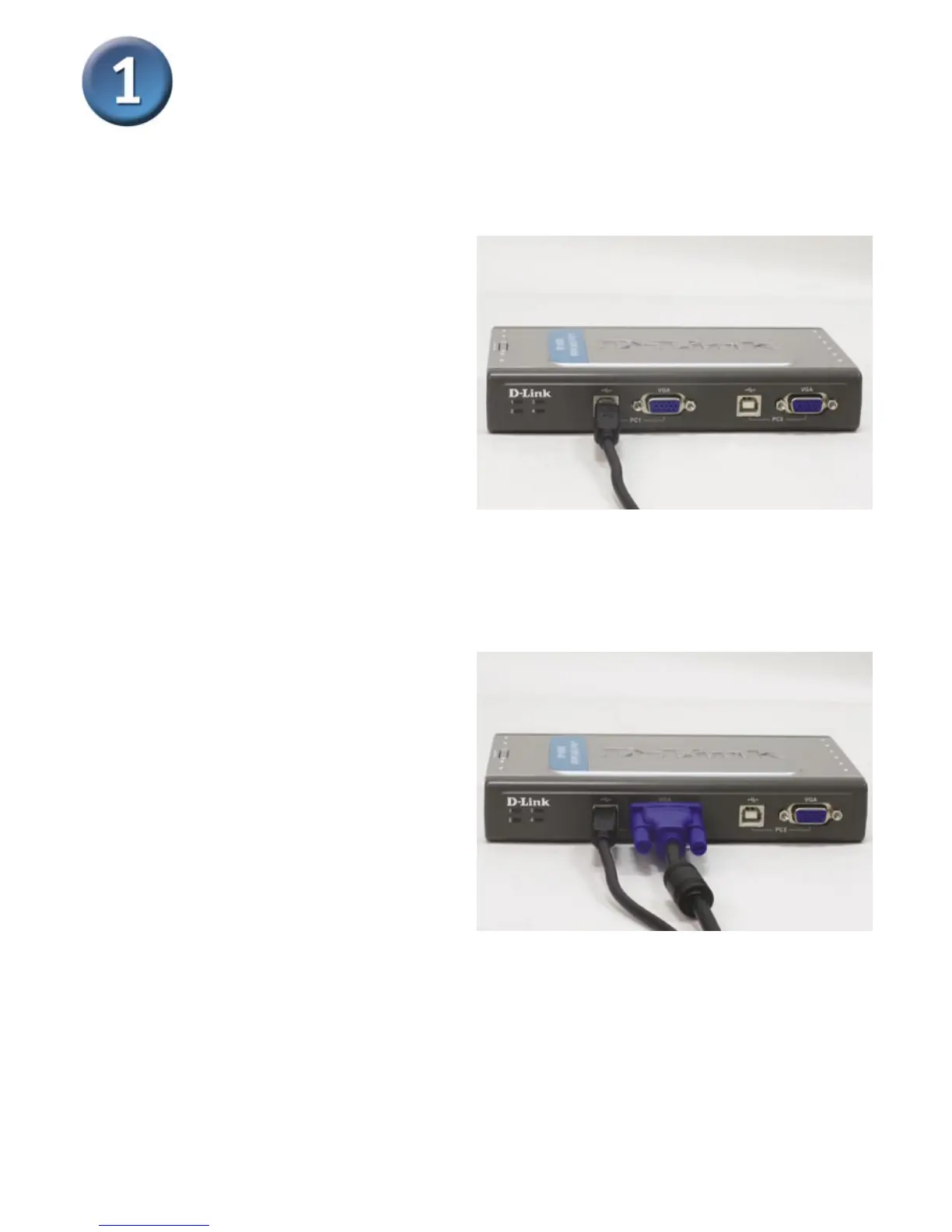

Using the included KVM cable,
attach the VGA connector to the
VGA port of the DKVM-4U
Using the included KVM cable,
attach the USB B type connector
to the DKVM-4U

D-Link DKVM-4U Specifications

Display

video resolution	2048 x 1536

Ports & Interfaces

console keyboard connector	1 x USB female
console mouse connector	1 x USB female
console monitor connector	1 x DB-15 HDDB female VGA, SVGA, XGA, MultiSync

Power

power source	Bus Powered
external power adapter requirement	No

Operating Environment

operating temperature	32°F TO 122°F (0°C TO 50°C)
operating humidity	80% Maximum (Non-condensing)

Weight and Dimensions

dimensions	7” x 4.1” x 1.2” (178mm x 105mm x 30.5 mm)
weight	0.61 lb (275 grams)
