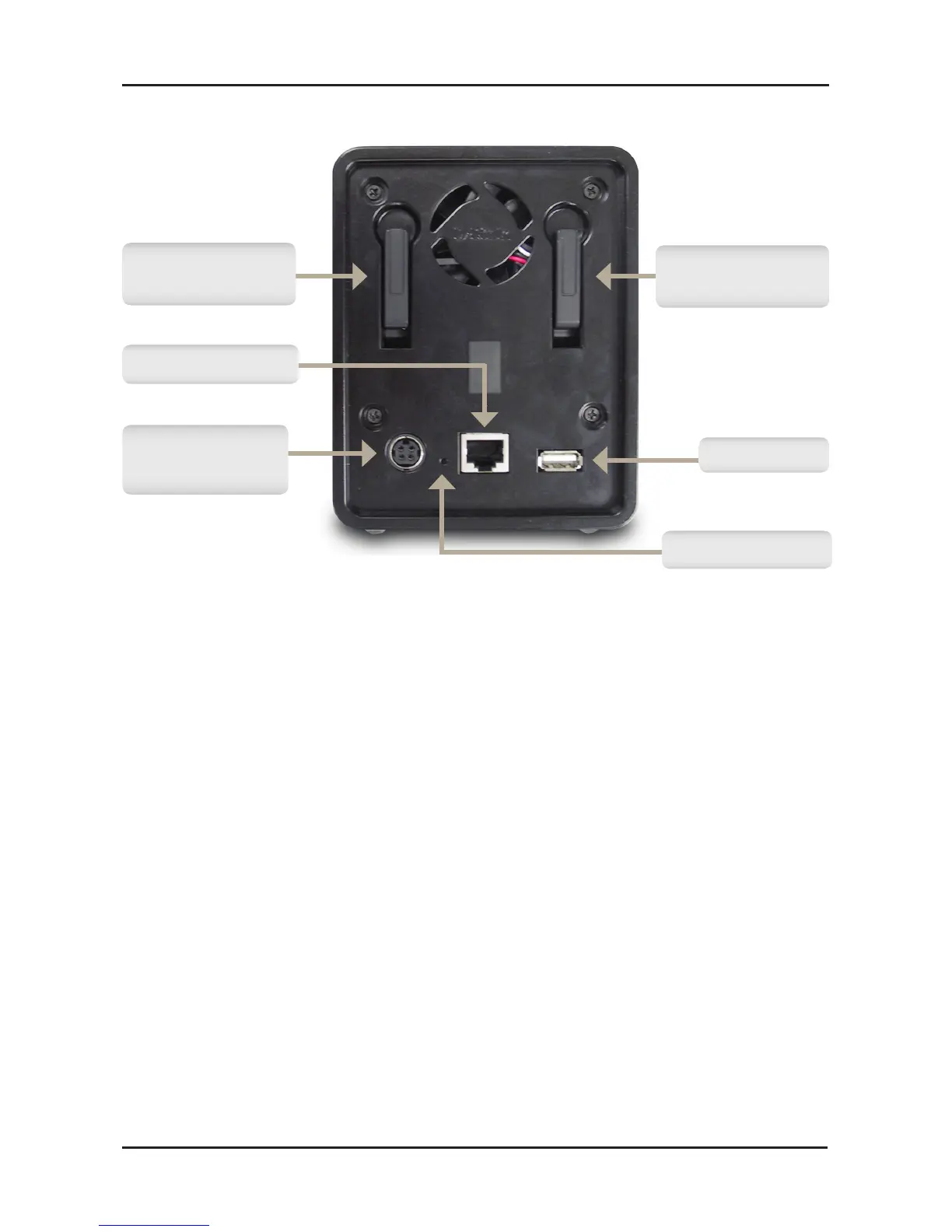

Rear View
Power Receptacle:
The12V3A/5V3Apowersupplyconnectshere.
Ethernet Port:
A Gigabit Ethernetport that connectsthe DNS-323 to thelocal
network.
USB Port:
Connectaprinter,orUPStotheport.ThisUSBportalsosupports
D-LinkSharePort™technology.RefertotheSharePort™manual
formoredetails.
Drive Eject Lever:
UsetheleverstoejecttheSATAharddrives.
Reset Button:
ApinholebuttonlocatedbesidetheEthernetportisusedtoresetthe
systemtothefactorydefaultsettings.
After resetting the unit you will still have access to the data on your hard drives.
Ethernet Port
Drive Eject
Lever
Power
Receptacle
USB Port
Reset Button
Drive Eject
Lever
