D-Link DSL-224 Quick Installation Guide

DSL-224 Quick Installation Guide
Selecting Operation Mode

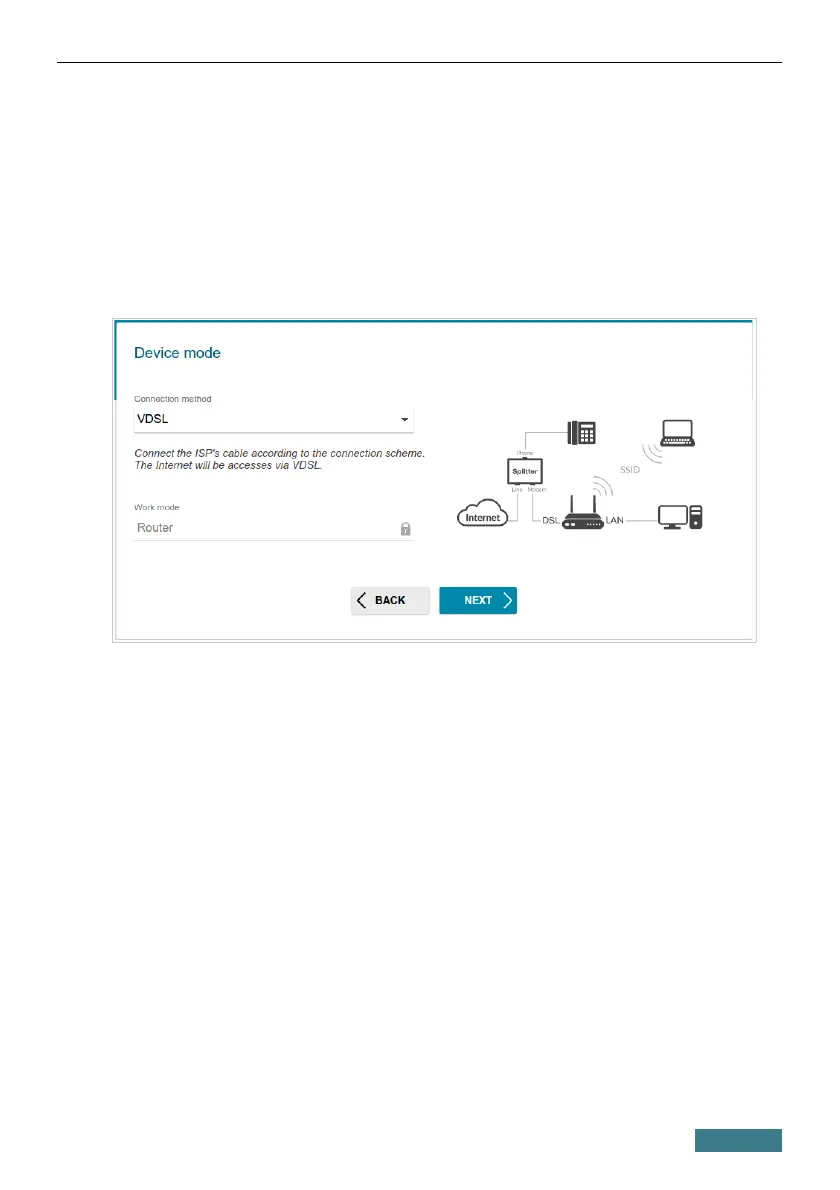

In order to connect your device to a VDSL or ADSL line, on the Device
mode page, from the Connection method list, select the VDSL or ADSL
value correspondingly. In this mode you can configure a WAN connection, set
your own settings for the wireless network, configure LAN ports to connect an
STB or VoIP phone, and set your own password for access to the web-based
interface of the device.
In order to connect your device to a private Ethernet line, on the Device
mode page, from the Connection method list, select the Ethernet (LAN)
value. In this mode you can configure one of the router's LAN port as the
WAN port, configure a WAN connection, set your own settings for the
wireless network, configure LAN ports to connect an STB or VoIP phone, and
set your own password for access to the web-based interface of the device.
When the operation mode is selected, click the NEXT button.
19

D-Link DSL-224 Specifications

General

Flash memory	8 MB
Certification	CE, RoHS
Internal memory	32 MB
Built-in processor	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
SIM card slot	No
WAN connection type	RJ-11
VPN support	IPSec/PPTP/L2TP/PPPoE
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Mac operating systems supported	Mac OS X 10.4 Tiger
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Security algorithms	WDS, WEP, WMM, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	2 dBi
Power source type	AC
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, WAN, WLAN, WPS
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	100 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s

Weight and Dimensions

Depth	26 mm
Width	172 mm
Height	114 mm
