D-Link DSL-224 Quick Installation Guide

DSL-224 Quick Installation Guide

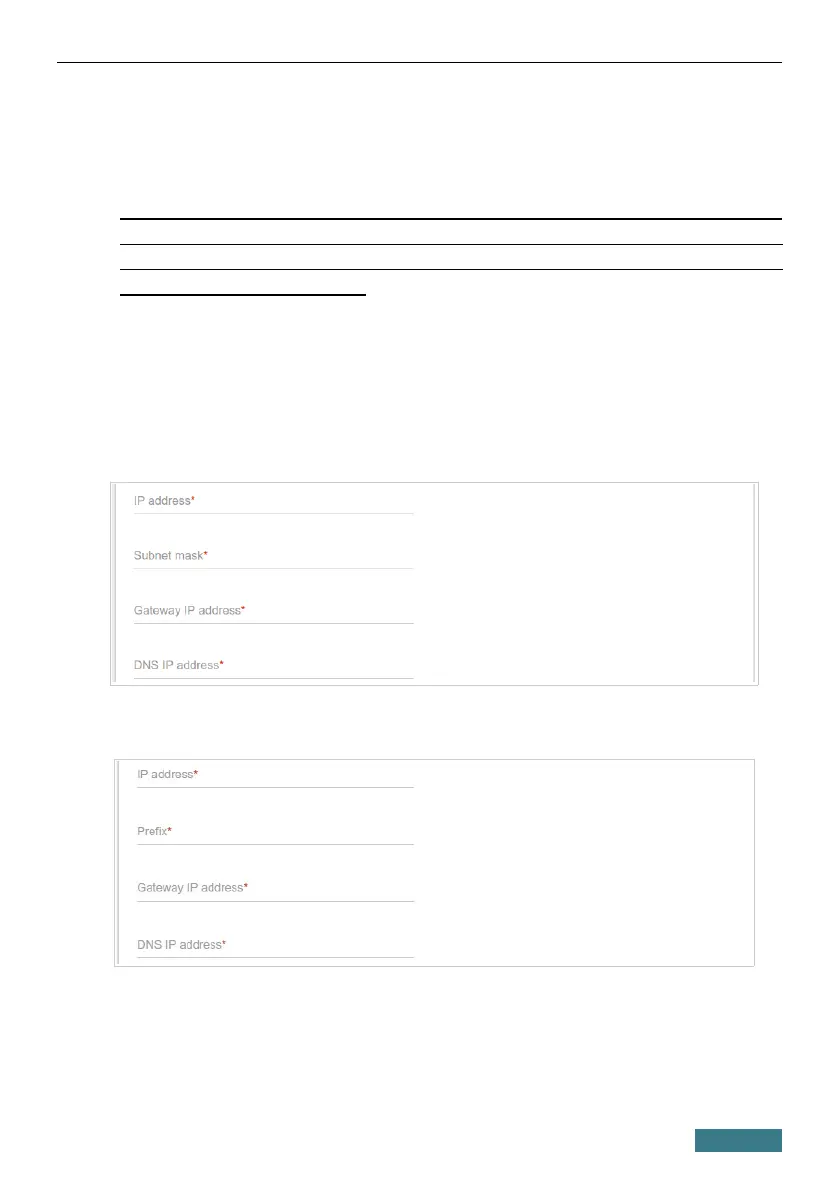

Conguring ADSL WAN Connection
This configuration step is available for the ADSL mode.
!
You should configure your WAN connection in accordance with data
provided by your Internet service provider (ISP). Make sure that you have
obtained all necessary information prior to configuring your connection.
Otherwise contact your ISP.
1. On the Internet connection type page, from the Connection type
list, select the connection type used by your ISP and fill in the fields
displayed on the page.
Static IPv4, IPoA: Fill in the following fields: IP address, Subnet mask,
Gateway IP address, and DNS IP address.
Static IPv6: Fill in the following fields: IP address, Prefix, Gateway IP
address, and DNS IP address.
25

D-Link DSL-224 Specifications

General

Flash memory	8 MB
Certification	CE, RoHS
Internal memory	32 MB
Built-in processor	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
SIM card slot	No
WAN connection type	RJ-11
VPN support	IPSec/PPTP/L2TP/PPPoE
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Mac operating systems supported	Mac OS X 10.4 Tiger
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Security algorithms	WDS, WEP, WMM, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	2 dBi
Power source type	AC
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, WAN, WLAN, WPS
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	100 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s

Weight and Dimensions

Depth	26 mm
Width	172 mm
Height	114 mm
