DSL-224 Quick Installation Guide

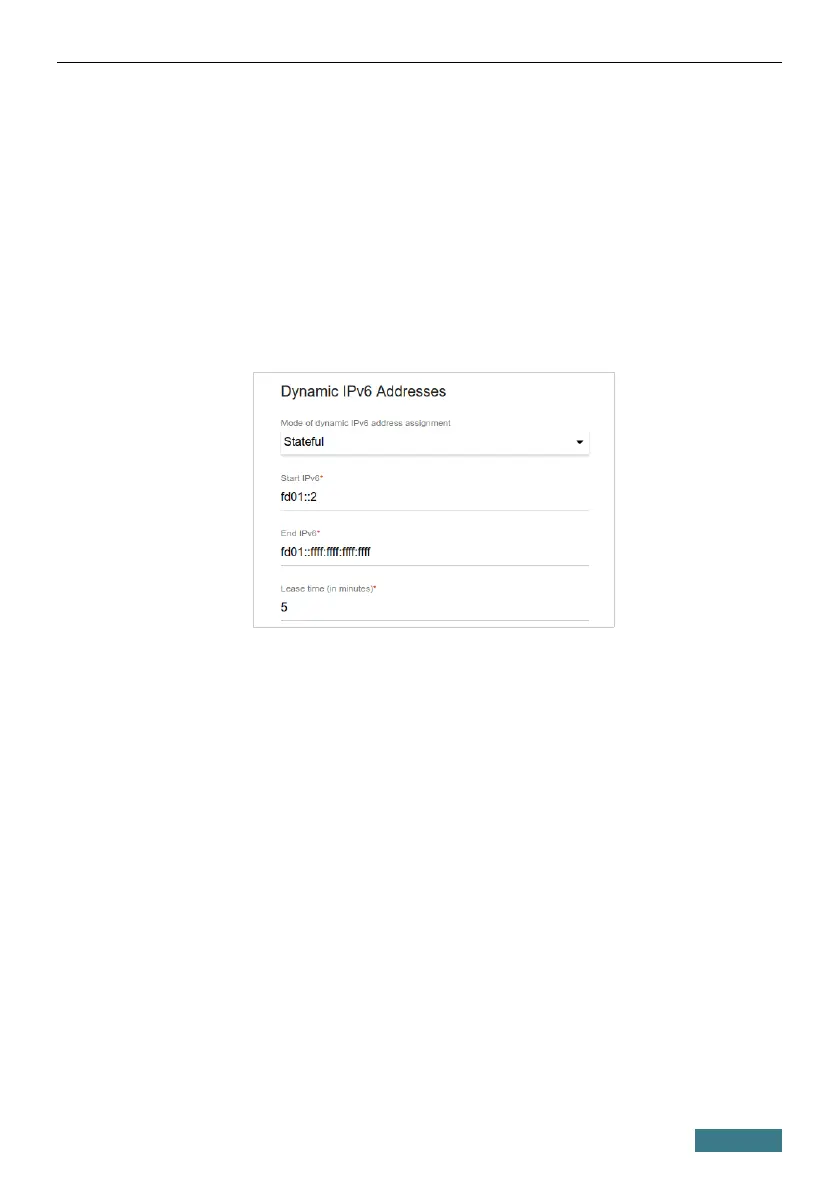

5. IPv6 address assignment. By default, the devices of the LAN
automatically assign IPv6 addresses to themselves (the Stateless value
is selected from the Mode of dynamic IPv6 address assignment
drop-down list in the Dynamic IPv6 Addresses section on the IPv6
tab). If the devices of the LAN do not support IPv6 address
autoconfiguration, use the built-in DHCPv6 server of the router (select
the Stateful value from the Mode of dynamic IPv6 address
assignment drop-down list). If you want to manually assign IPv6
addresses to devices of the LAN, select the Disable value from the
Mode of dynamic IPv6 address assignment drop-down list.
6. After specifying the needed parameters on the Connections Setup /
LAN page, click the APPLY button.
34

D-Link DSL-224 Specifications

General

Flash memory	8 MB
Certification	CE, RoHS
Internal memory	32 MB
Built-in processor	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
SIM card slot	No
WAN connection type	RJ-11
VPN support	IPSec/PPTP/L2TP/PPPoE
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Mac operating systems supported	Mac OS X 10.4 Tiger
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Security algorithms	WDS, WEP, WMM, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	2 dBi
Power source type	AC
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, WAN, WLAN, WPS
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	100 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s

Weight and Dimensions

Depth	26 mm
Width	172 mm
Height	114 mm
