D-Link DSL-224 Quick Installation Guide

DSL-224 Quick Installation Guide
Obtaining IP Address Automatically
(OS Windows 7)
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel
has the category view (the Category value is selected from the View by
drop-down list in the top right corner of the window), choose the View
network status and tasks line under the Network and Internet
section.)
3. In the menu located on the left part of the window, select the Change
adapter settings line.

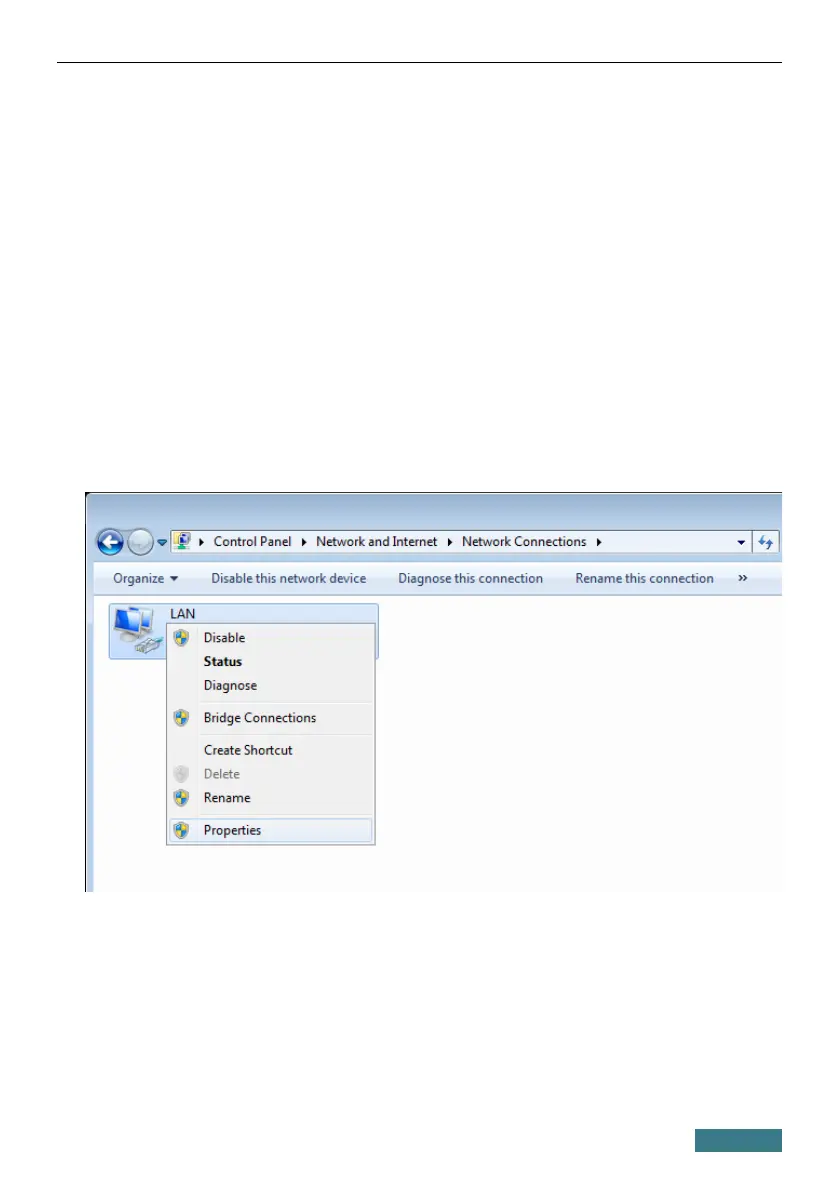

4. In the opened window, right-click the relevant Local Area Connection
icon and select the Properties line in the menu displayed.
5. In the Local Area Connection Properties window, on the
Networking tab, select the Internet Protocol Version 4 (TCP/IPv4)
line. Click the Properties button.
6

D-Link DSL-224 Specifications

General

Flash memory	8 MB
Certification	CE, RoHS
Internal memory	32 MB
Built-in processor	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
SIM card slot	No
WAN connection type	RJ-11
VPN support	IPSec/PPTP/L2TP/PPPoE
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Mac operating systems supported	Mac OS X 10.4 Tiger
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Security algorithms	WDS, WEP, WMM, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	2 dBi
Power source type	AC
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, WAN, WLAN, WPS
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	100 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s

Weight and Dimensions

Depth	26 mm
Width	172 mm
Height	114 mm
