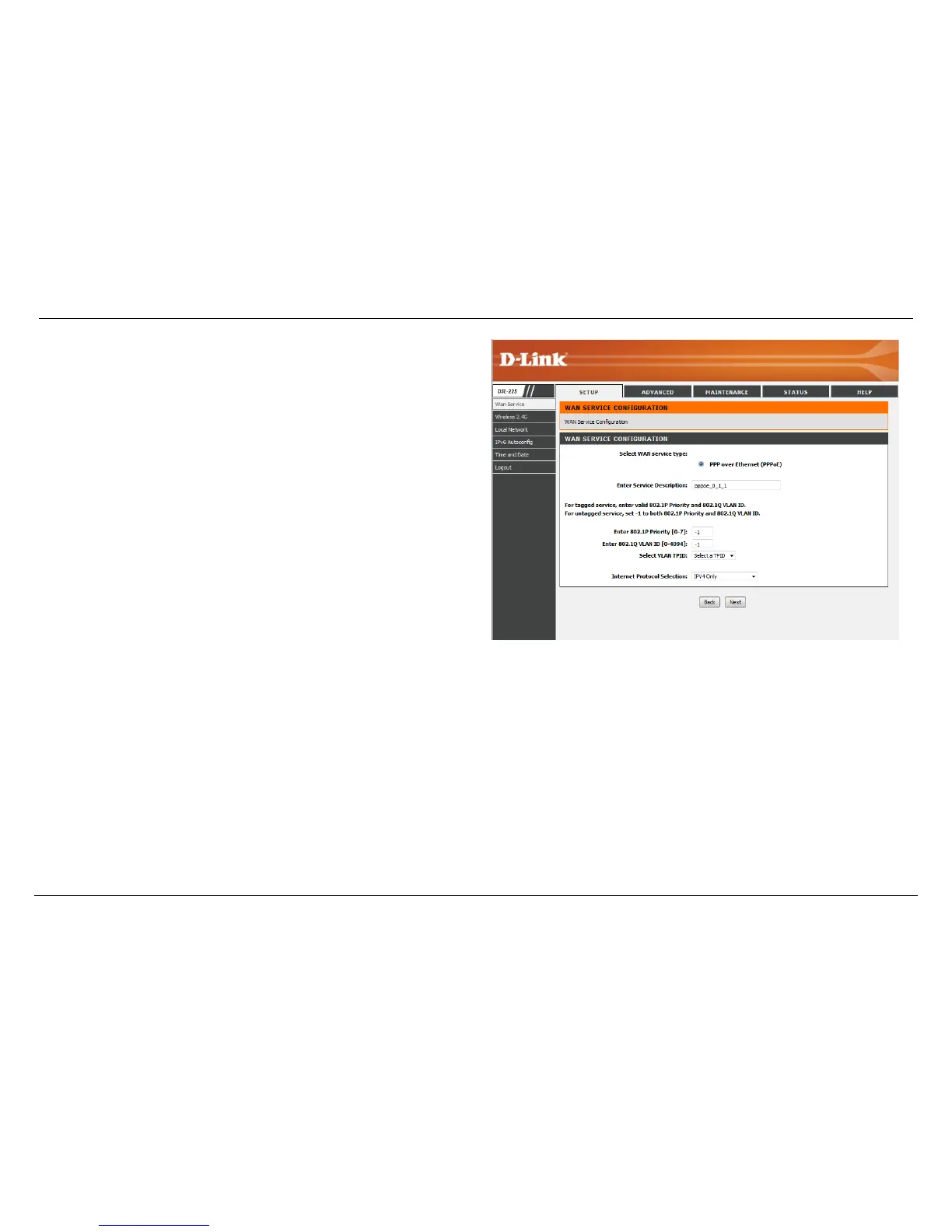

After clicking the Next button, the following page will be displayed. Here we can
configure the WAN Service Configuration.
Select the WAN service type.
Click IP over Ethernet or click Bridge. When you click IP over Ethernet, the Enter
Service Description field changes to ipoe_0_1_1. When you click Bridge, the
Enter Service Description field changes to br_0_1_1.
For tagged service, enter valid 802.1P Priority and 802.1Q VLAN ID. For
untagged service, set -1 to both 802.1P Priority and 802.1Q VLAN ID.
Enter a value in the Enter 802.1P Priority [07] field.
Enter a value in the Enter 802.1Q VLAN ID [0-4094] field.
Select a TPID VLAN from the drop-down menu. Select either 0x8100, 0x88A8, or
0x9100.
Select the Internet Protocol Selection from the drop-down menu. Select either IPv4
Only, IPv4&IPv6(Dual Stack), or IPv6 Only.
Click the Back button to return to the previous page.
Click the Next button to continue to the next page.
To Next Page
