DSL-500G ADSL Router User’s Guid
e
3.

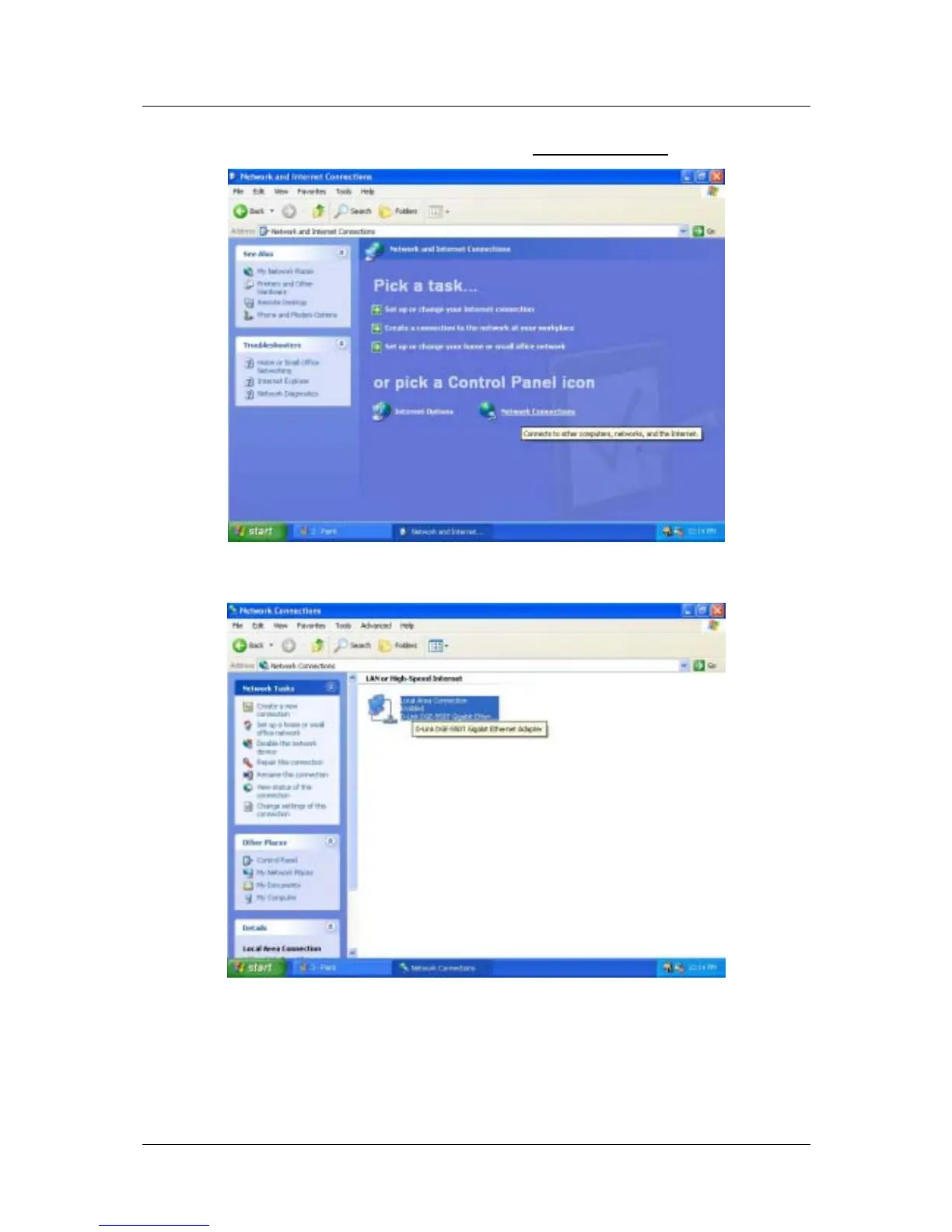

In the Network and Internet Connections folder, click on
Network Connect
ions
.
4.
In the Network Connecti
ons folder, hi
ghlight the
Local Area Connection
icon by clic
king on it
once.
A new option i
s revealed under Network Ta
bs in the left side panel.
7
16
18
Table of Contents
Default Chapter
1
Adsl Router
1
Wichtige Sicherheitshinweise
2
Limited Warranty
2
Copyright Statement
4
Limitation of Liability
4
Table of Contents
5
About this User's Guide
7
Before You Start
7
Requirements
7
Installation Overview
7
Operating System
8
Web Browser
8
Packing List
9
Introduction
11
Router Description and Operation
11
Router Features
11
Front Panel
12
Rear Panel
12
Figure 1. Front Panel Display with LED Indicators
12
Figure 2. Rear Panel Cable and Power Connections
12
Hardware Installation
13
Connect ADSL Line
13
Computer to Router Connection
13
Connect Ethernet Lan to Router
13
Figure 3. PC to Router Connection
13
Hub or Switch to Router Connection
14
Power on Router
14
Configuring the Router for the First Time
15
Configuring IP Settings on Your Computer
15
Configure Windows Xp for Dhcp
16
Windows 2000
19
Access the Web Configuration Manager
22
Configure WAN Connection (ADSL Service Connection)
24
Web Configuration Management Guide
26
Quick Configuration
27
Home Page - System View
28
Change LAN IP Settings
29
DHCP Service Modes
30
Wan Configuration Options
31
ATM VC Configuration
31
PPP Configuration
33
Ipoa Configuration
35
EOA Configuration
37
Bridge Configuration
39
Routing Configuration
41
IP Route
41
IP Address
42
Nat
43
Rip
45
Firewall
46
Managing the Black List
47
IP Filter
48
Adding an Ip Filter Rule
49
Dns
52
Configuring Dns Relay
52
Blocked Protocols
54
Changing the Manager Password
55
Commit & Reboot
56
Image Upgrade
57
Technical Specifications
60
Low Pass Filters
61
Registration Card
65
5
