DSL-500G ADSL Router User’s Guide
5. Select a Send Mode and a Receive Mode.
The Send Mode setting indicates the RIP version this interface will use when it sends its route information
to other devices.
The Receive Mode setting indicates the RIP version(s) in which information must be passed to the Router
in order for it to be accepted into its routing table.
RIP version 1 is the original RIP protocol. Select RIP1 if you have devices that communicate with this
interface that understand RIP version 1 only.
RIP version 2 is the preferred selection because it supports "classless" IP addresses (which are used to
create subnets) and other features. Select RIP2 if all other routing devices on your LAN support this version
of the protocol.
6. Click the Add button. The new RIP entry will display in the table.
7. Click the Enable radio button to enable the RIP feature.
8. Click the Submit button to save the settings in temporary memory. When you are done making changes to
the configuration settings, open the Commit & Reboot menu and click the Commit button to save your
changes to permanent memory.
Firewall
The Firewall enables you to protect the system against denial of service (DoS) attacks and other types of
malicious accesses to your LAN. You can also specify how to monitor attempted attacks, and who should be
automatically notified.

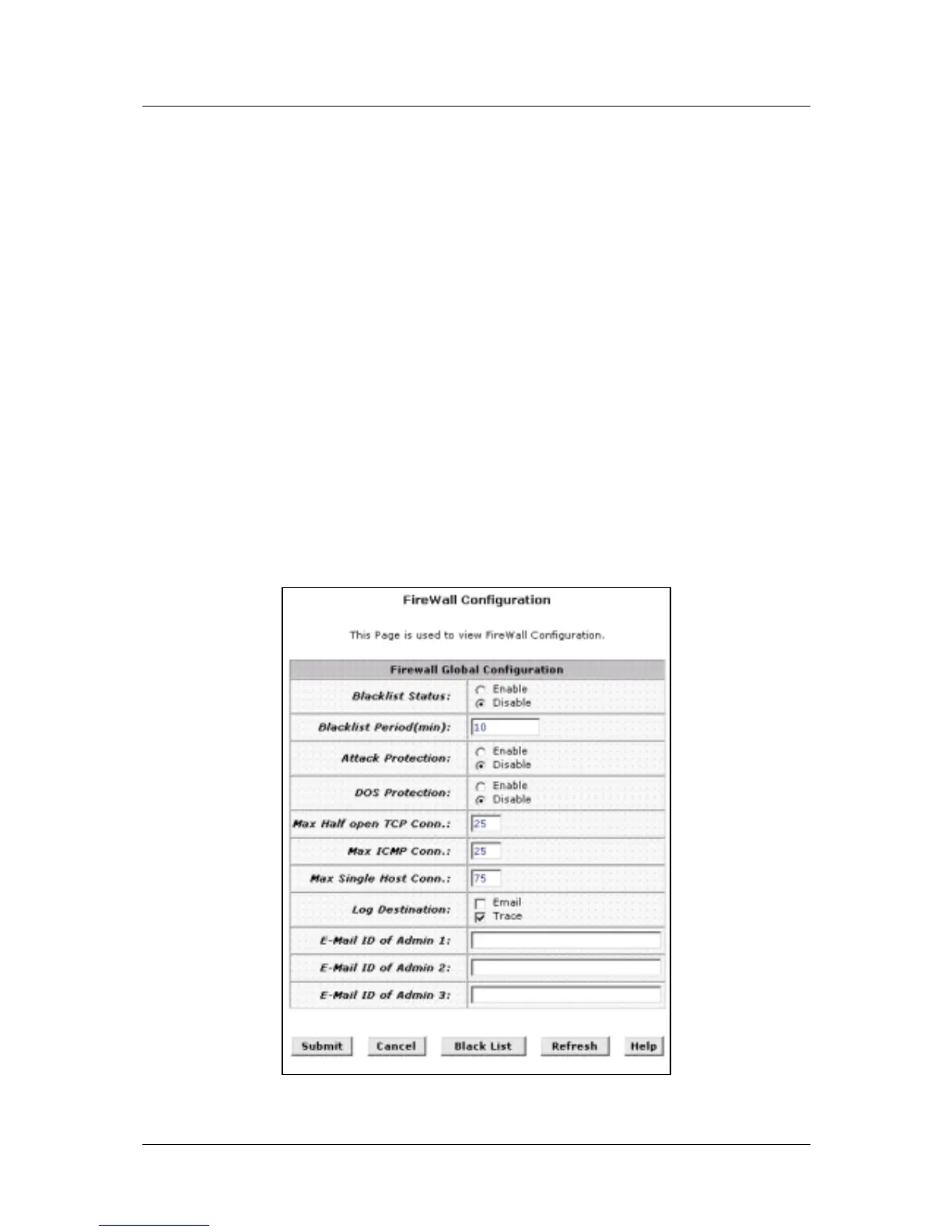

Figure 23. Firewall Configuration
36
