DSL-500G ADSL Router User’s Guide

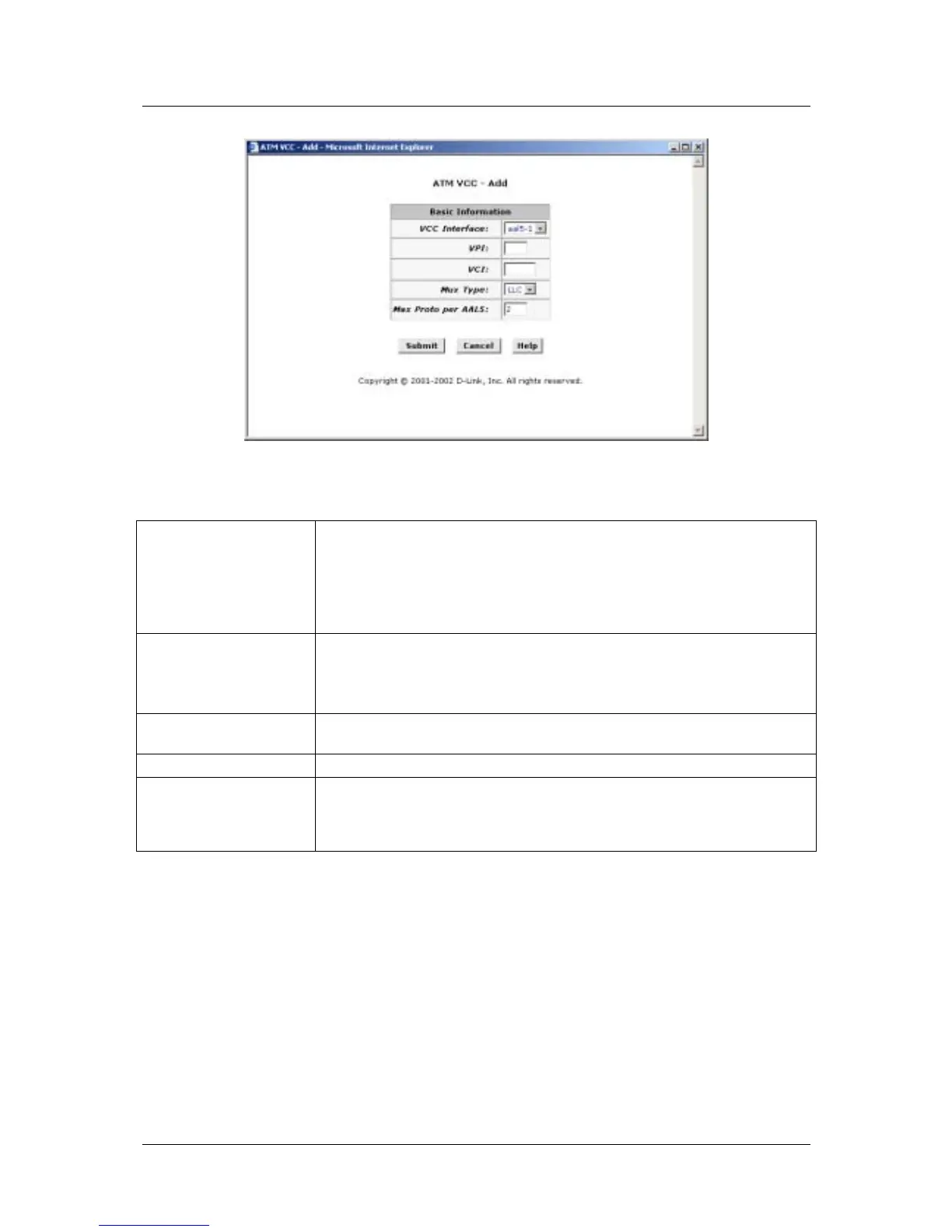

Figure 10. ATM VCC – Add (or Modify) Parameters
To Add or Modify AAL5 Parameters define the following:
VCC Interface
The name of the lower-level interface on which this VC operates. The low-
level interface names are pre-configured in the software and identify the
type of traffic that can be supported, such as data or voice. Internet data
services typically use an AAL5-type interface.
If you are adding a new VCC Interface, choose the AAL5 set you want to
define from the pull-down menu (Add menu only).
VPI
This setting (together with the VCI and Mux Type) identifies a unique ATM
data path for communication between the Router and service provider.
If you are adding a new VCC Interface or changing the existing VPI value,
type in the new VPI value.
VCI
If you are adding a new VCC Interface or changing the existing VCI value,
type in the new VCI value.
Mux Type
Select VC-Mux or LLC from pull-down menu.
MAX Proto per AAL5
This setting indicates the number of higher-level interfaces that the VC can
support (the higher level interfaces can be PPP, EoA, or IPoA interfaces).
The Router supports up to eight however you must make arrangements
your service provider for this additional service.
Click the Submit button to save the settings in temporary memory. When you are done making changes to the
configuration settings, open the Commit & Reboot menu and click the Commit button to save your changes to
permanent memory.
