DSL-522T ADSL Router User Guide
Static IP Address
When the Router is configured to use Static IP Address assignment for the WAN connection, you must
manually assign a global IP Address, Subnet Mask and Gateway IP Address used for the WAN connection.
Most users will also need to configure DNS server IP settings in the DNS Configuration window (see
below). Follow the instruction below to configure the Router to use Static IP Address assignment for the
WAN connection.
To configure a Static IP Address connection, perform the steps listed below. Some of the settings do not
need to be changed the first time the device is set up, but can be changed later if you choose. See the table
below for a description of all the settings available in this window.

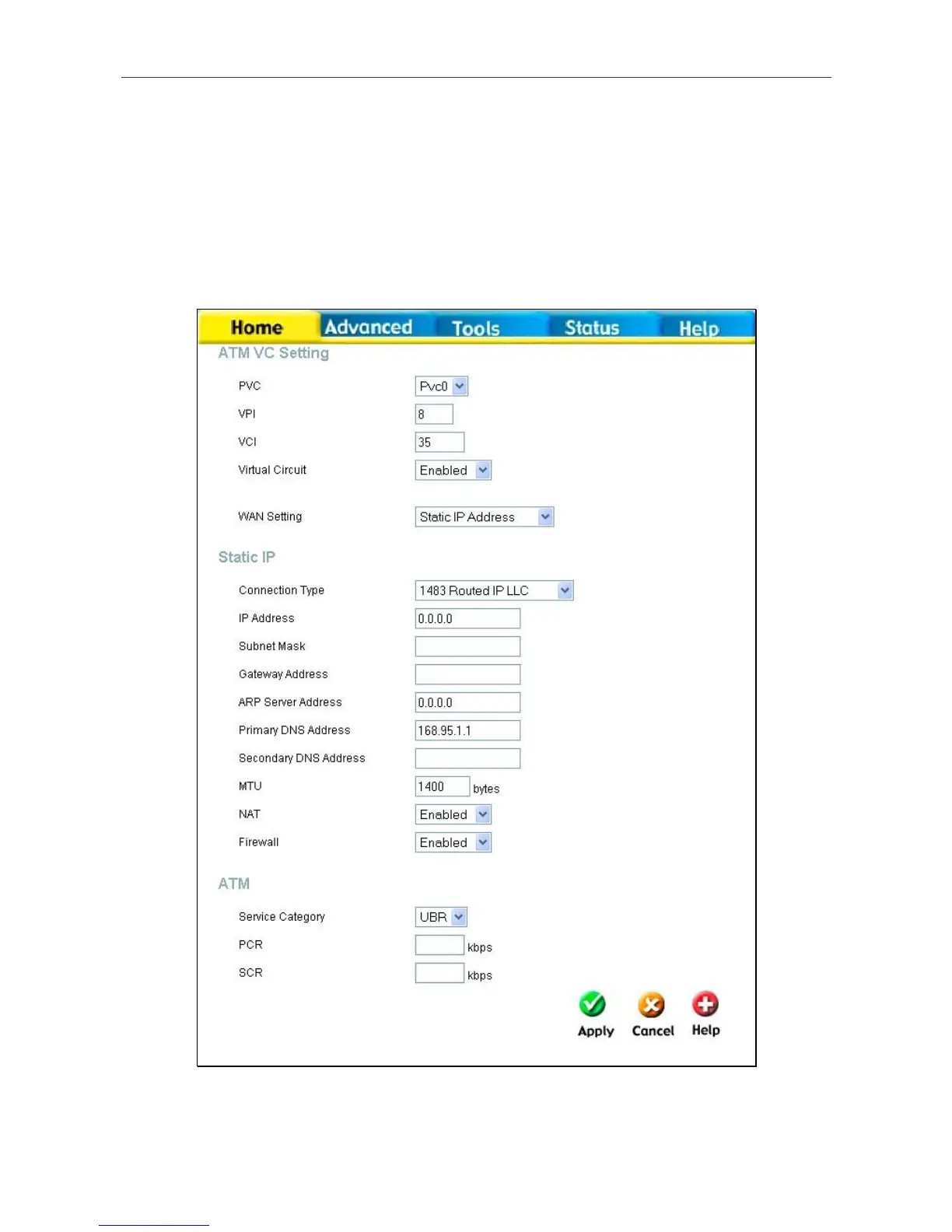

WAN Settings window - Static IP
23
