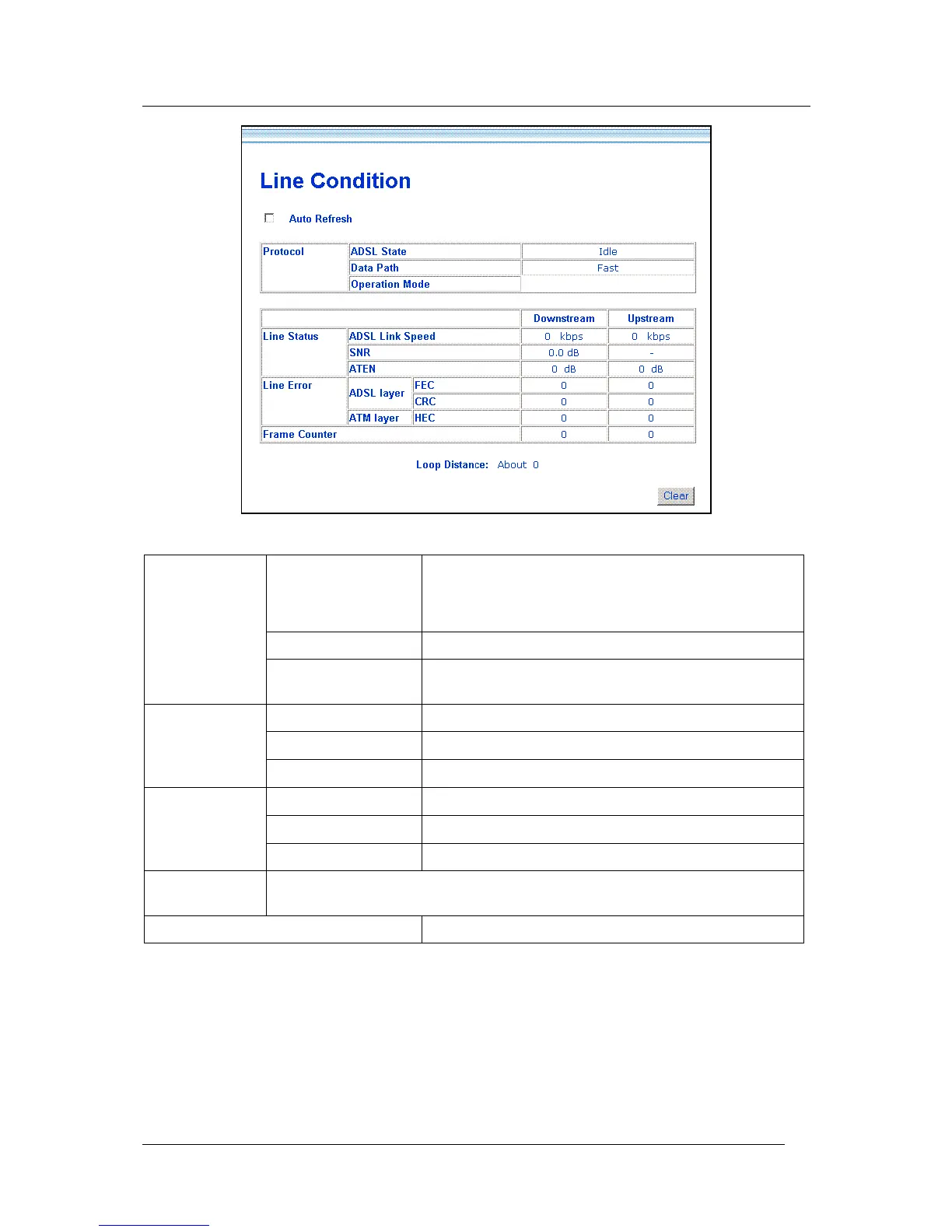

Figure 4- 30. Line Condition
Use the Clear button to start a fresh session. Check the Auto-Refresh box to automatically refresh the screen.
Carrier Chart
ADSL State
Disconnected - ADSL connection failure
Idle - valid connection currently not active
Active - valid connection that currently transmitting packets
Data Path Current data path type Fast or Interleaved
Protocol
Operation Mode
Modulation technique used for ADSL connection,
G.DMT or G.lite
ADSL Link Speed Downstream/Upstream data transfer rate in Kbps
SNR Downstream/Upstream Signal-to-Noise Ratio in dB Link Status
ATTEN Downstream/Upstream attenuation of signal in dB
FEC FEC Forward Error Correction
CRC CRC Cyclic Redundancy Control Line Error
HEC HEC Header Error Check
Frame Counter
